Land Rover Lightweight

23-KB-26
6-way Light Switch

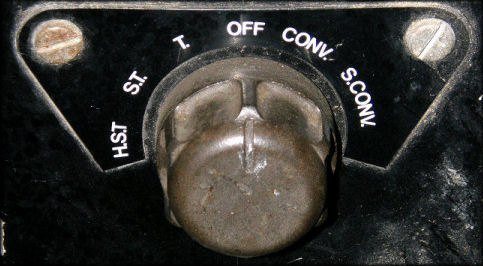

The 6 positions are:

H.S.T Head, Side,Tail 1 is fed to 3, 4 and 5
S.T. Side and Tail 1 fed to 4 and 5
T. Tail lights only 1 fed to 5
OFF Off 1 always fed to 6
Conv. Convoy light only 1 fed to 2
S.CONV. Side lights and Convoy light 1 fed to 2 and 4


Click on image for full size Photo

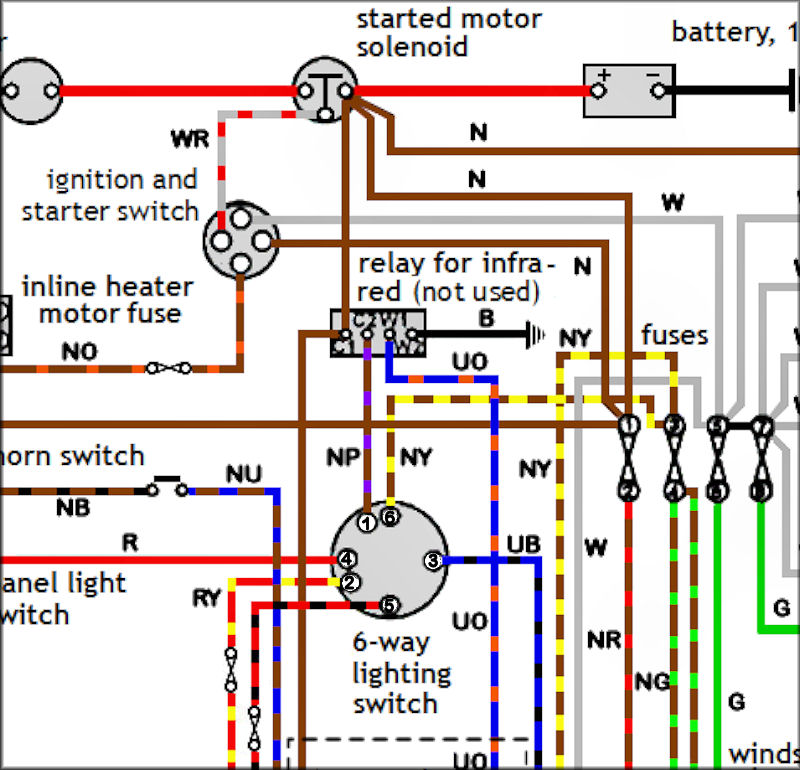

1 Brown/Purple +ve Feed from IR Relay
2 Red/Yellow Feed to Convoy Lamp
3 Blue/Black To terminal 5 on IR Switch (if fitted) or linked to Blue cable to Flash/Dip switch if no IR switch
4 Red Front Side Lights
5 Red/Black Tail and No. Plate Lights
6 Brown/Yellow Feed to Fuse (always fed from Terminal 1)
