 Intervehicle Connectors

Were designed to provide a quick foolproof method of restarting electrically disabled military vehicles in the field through a vehicle-to-vehicle battery jumper system.

Click on images below for full size Photo. Photos courtesy 'FULLTILT'

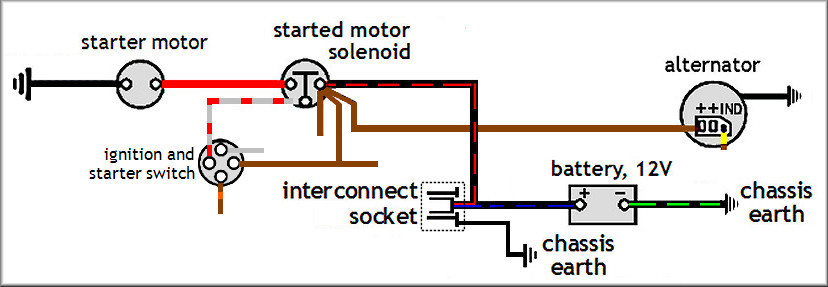

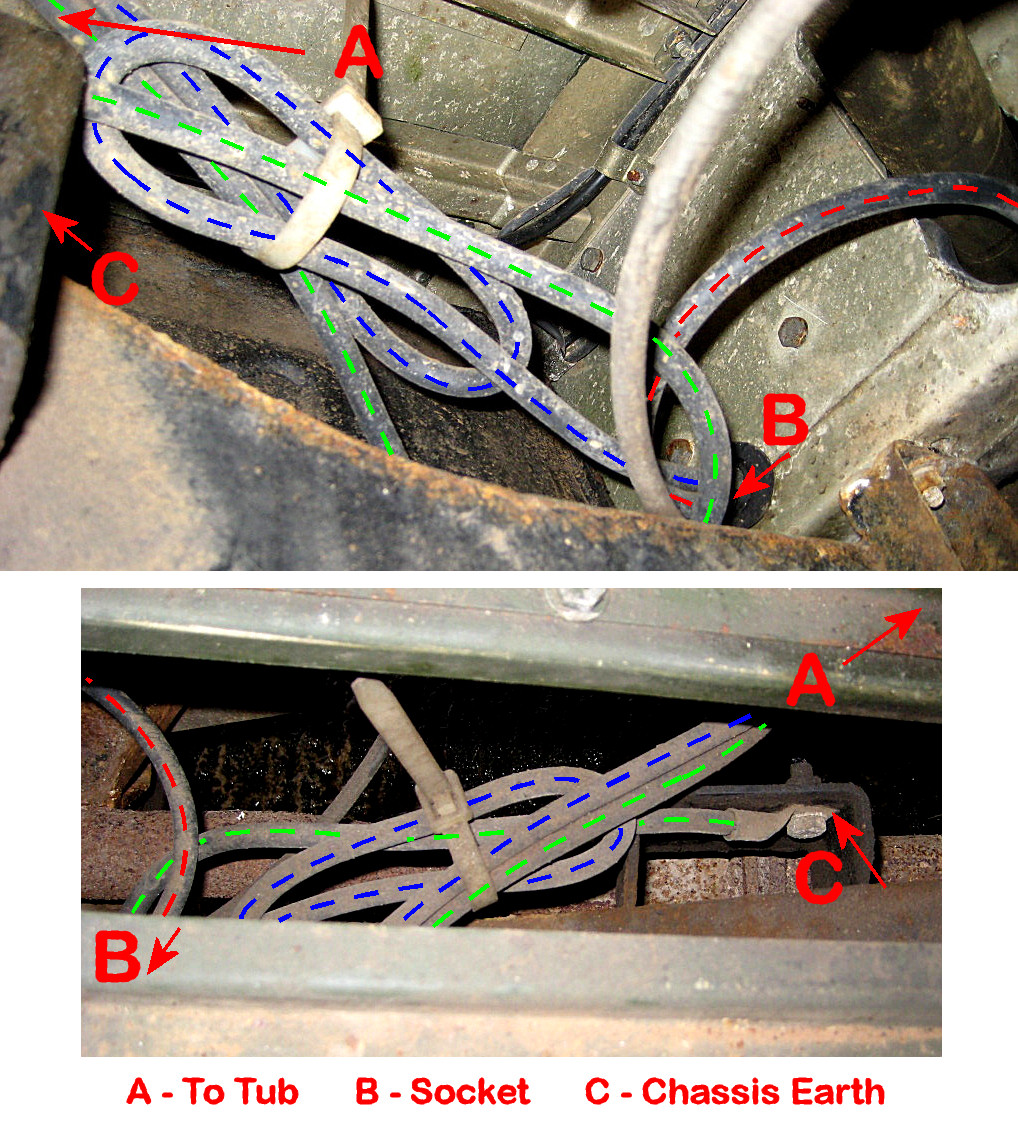

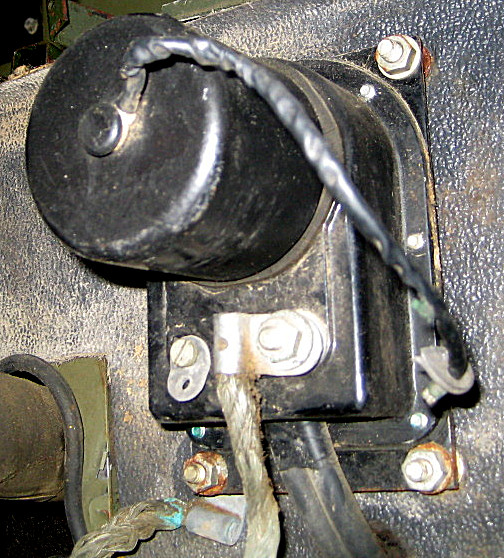

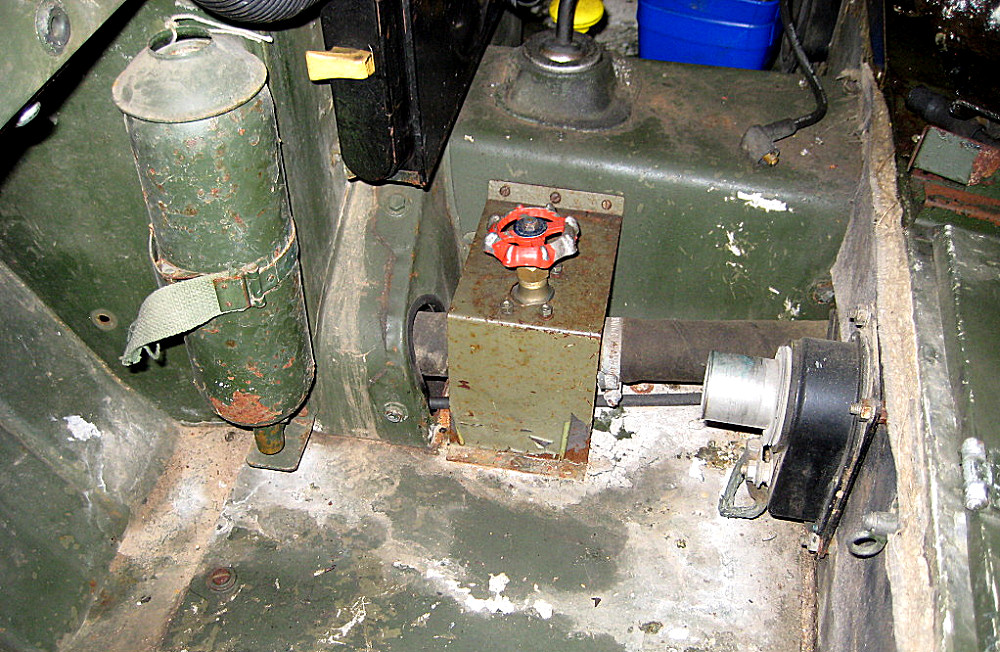

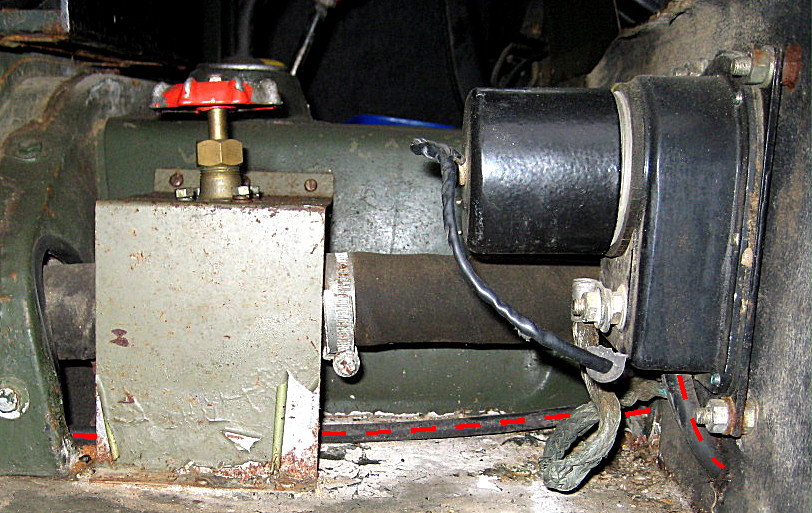

This is a GS so the additional Inter Vehicle Slave Start (SB-ORD) Connections to battery are in the front of the tub

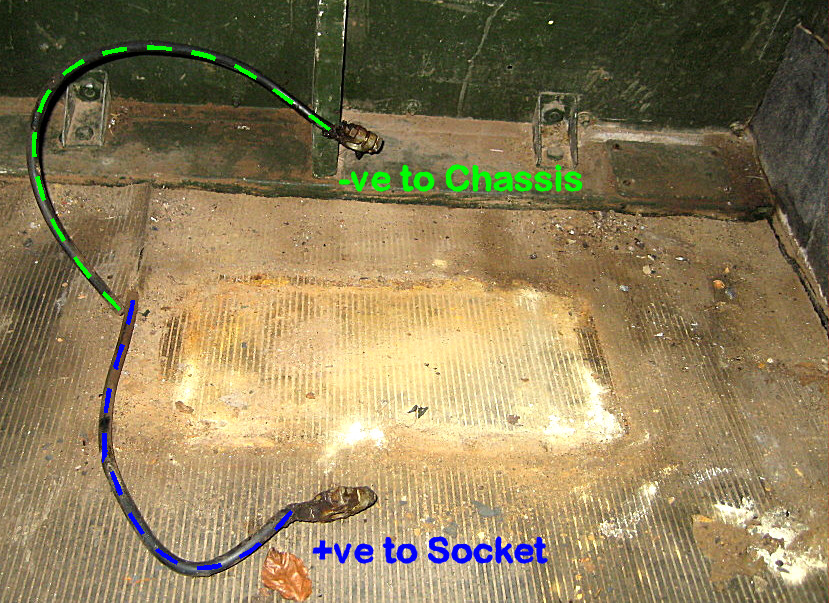

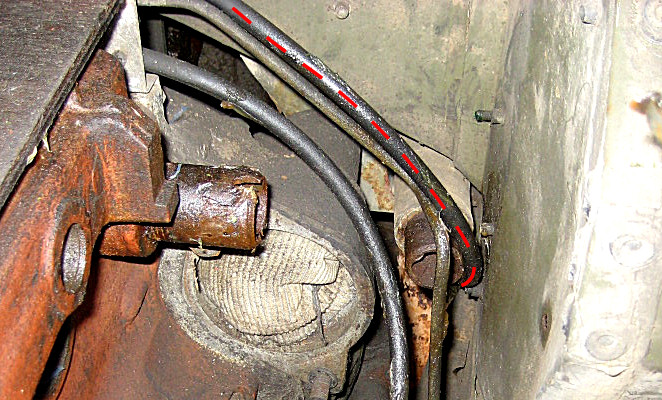

Green trace cable, tub battery -ve to Earth - Blue trace cable, between socket and tub battery +ve - Red trace cable, from socket to engine compartment

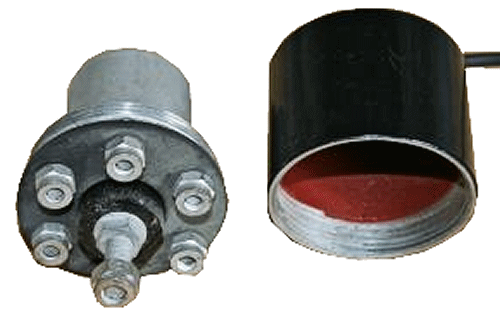

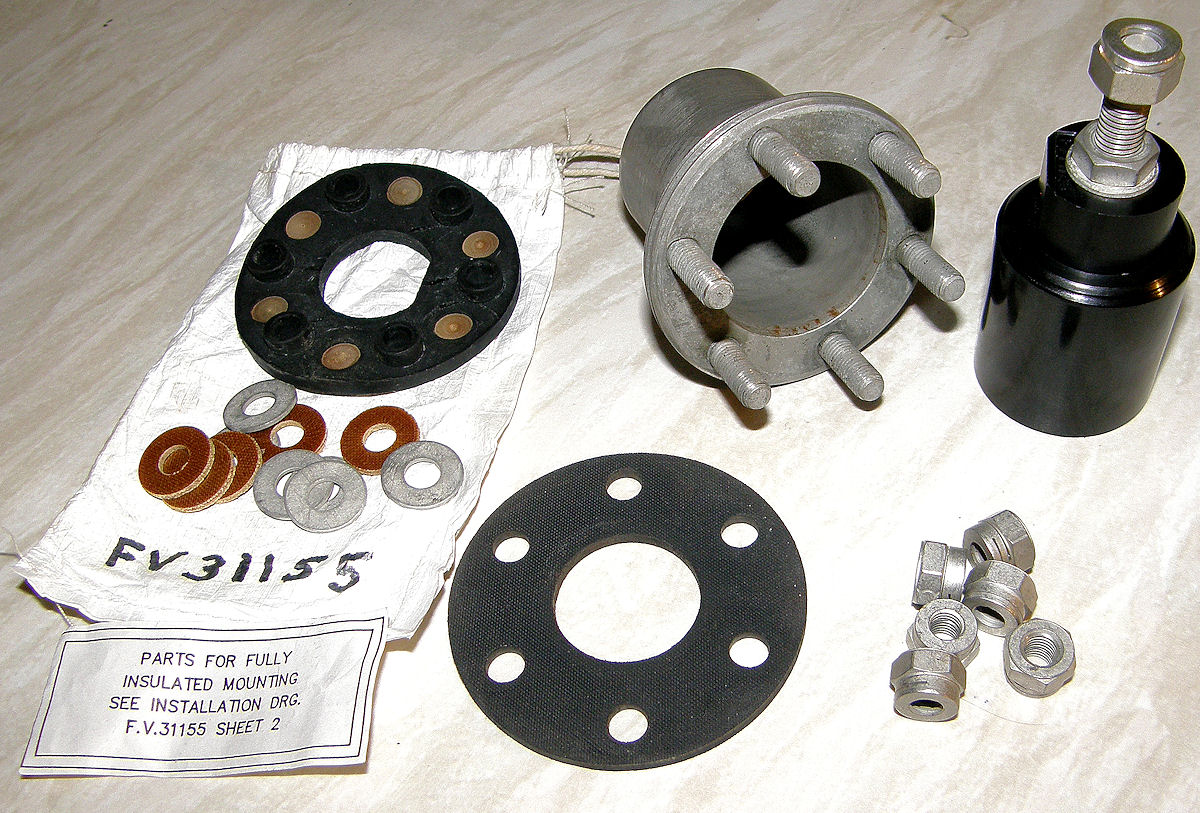

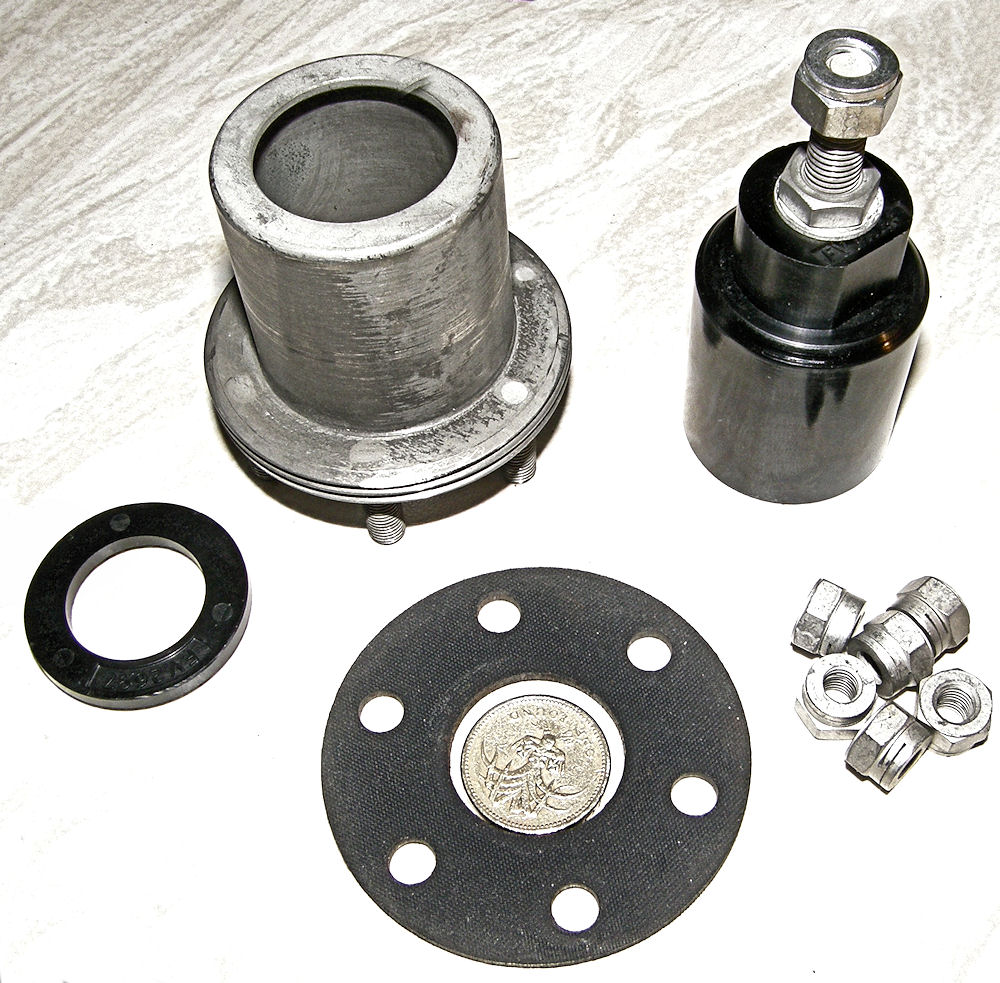

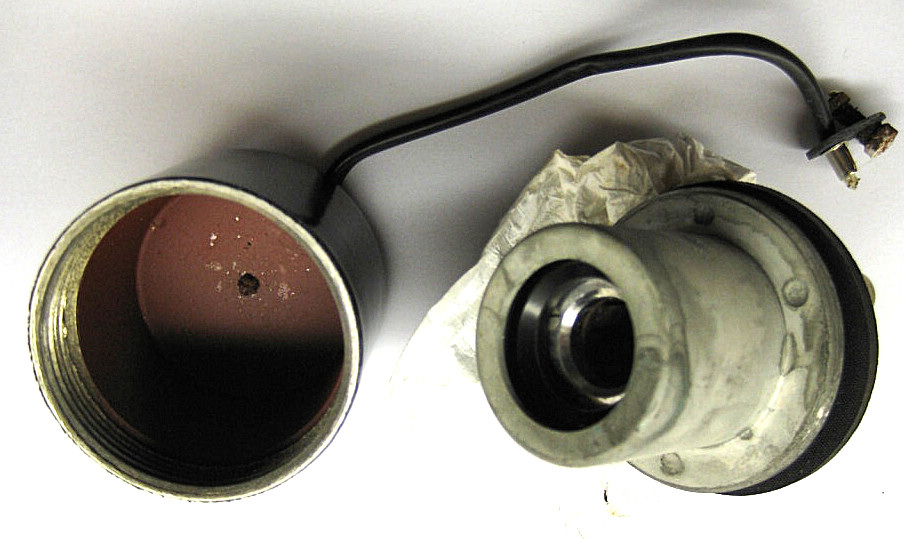

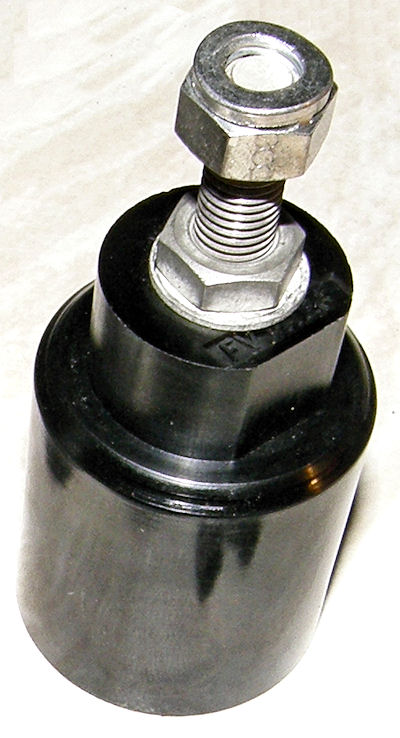

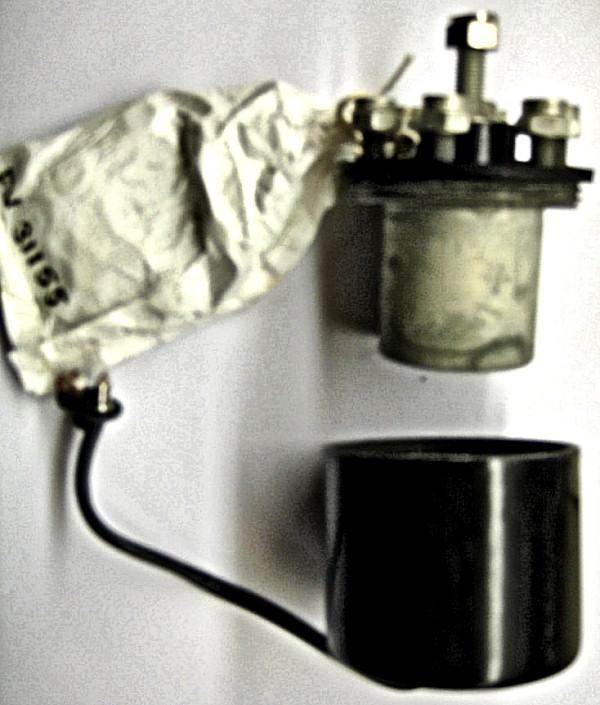

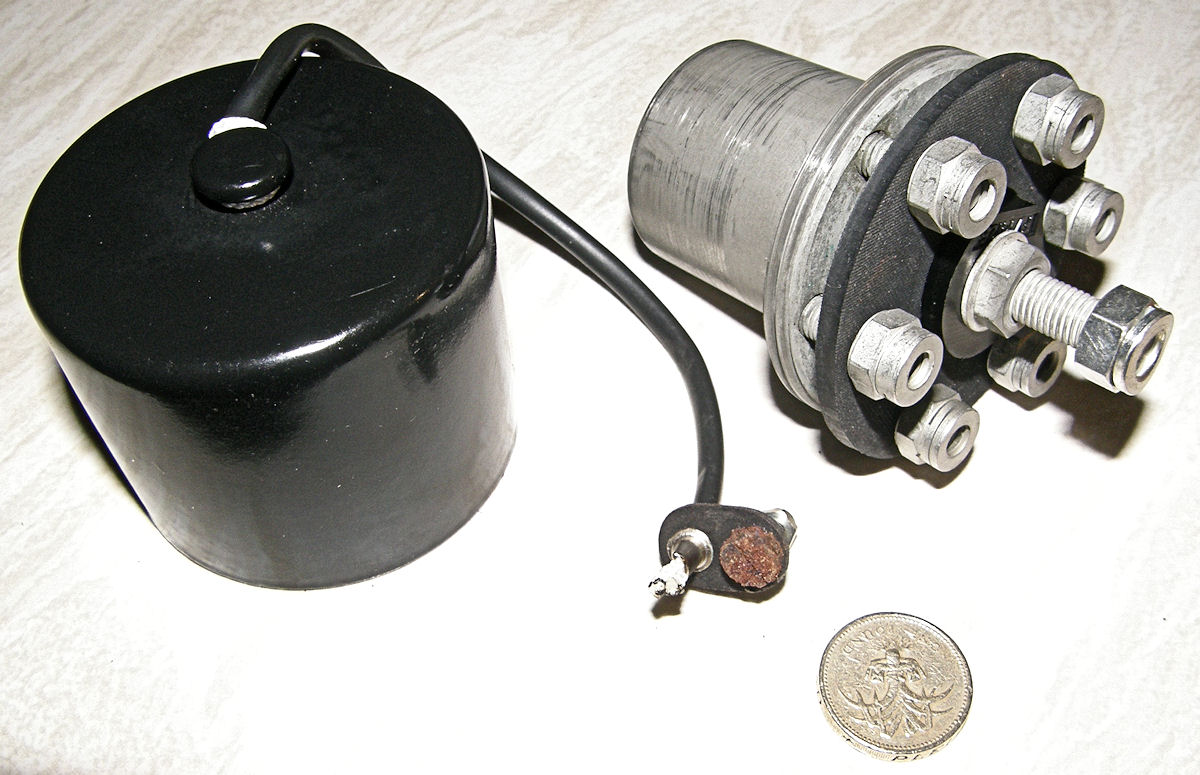

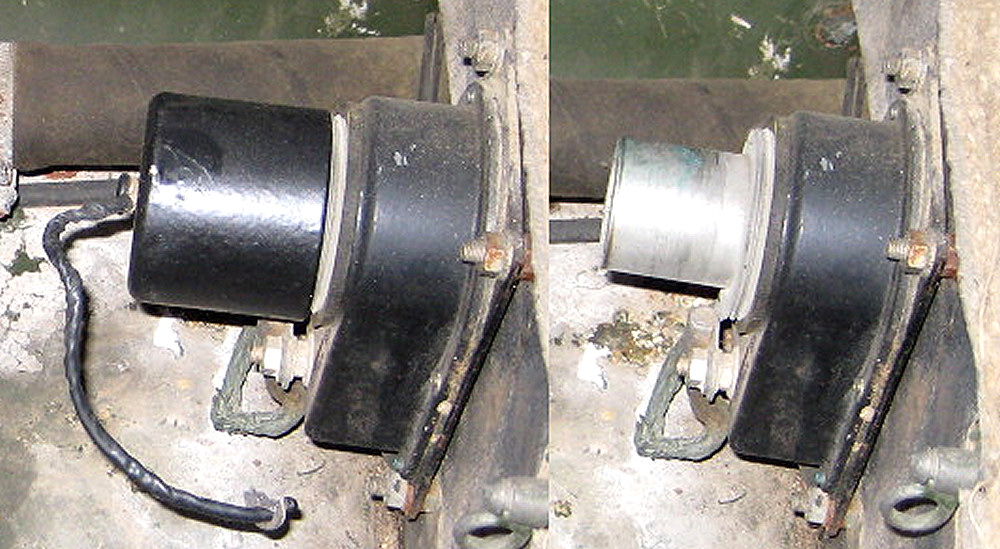

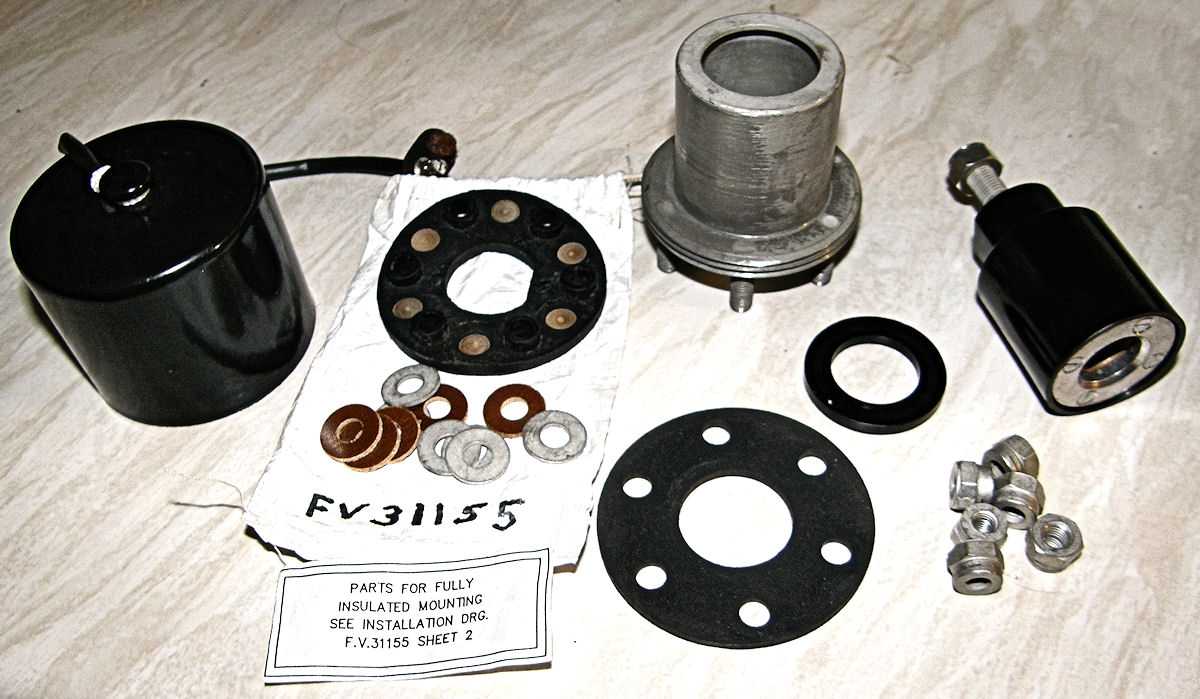

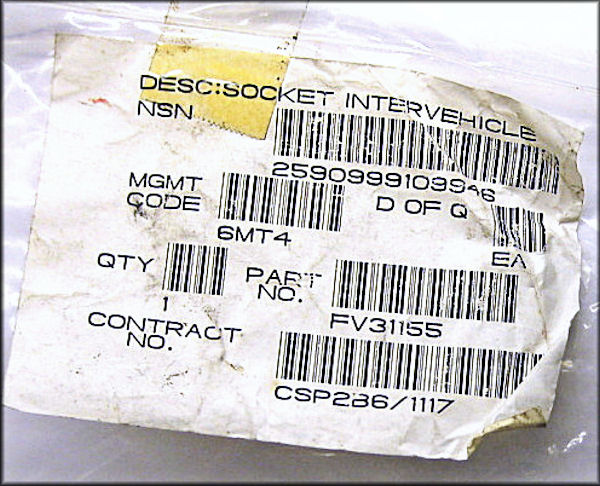

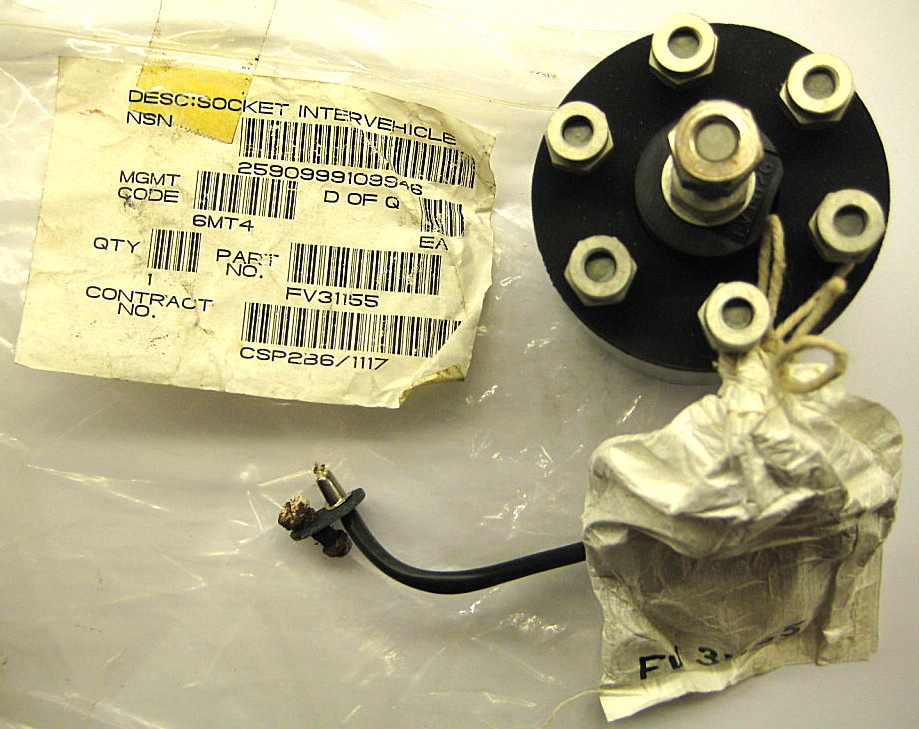

FV 3115  Socket Intervehicle

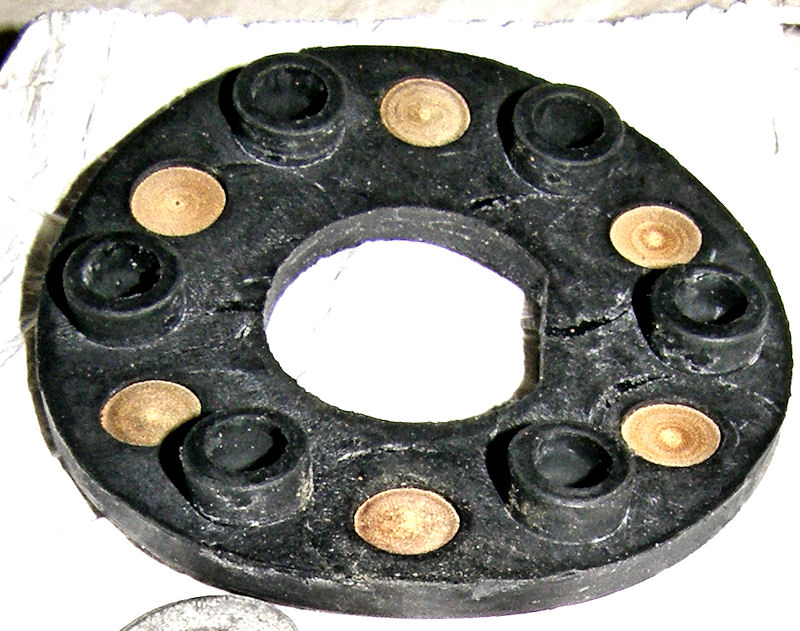

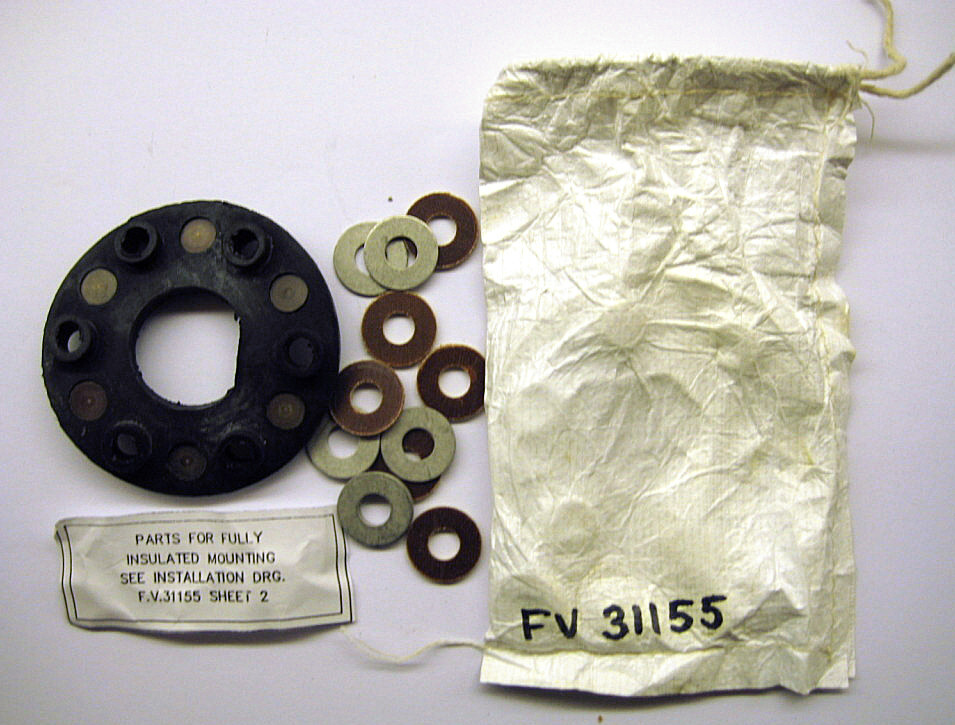

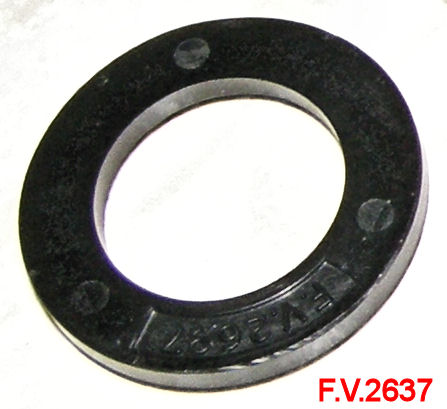

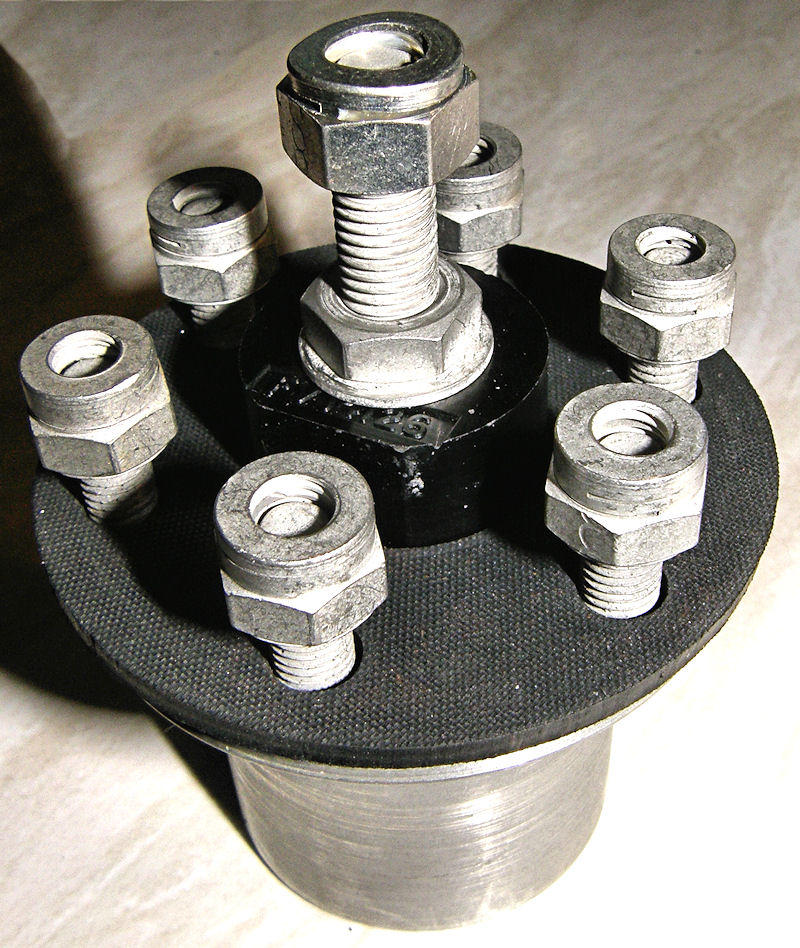

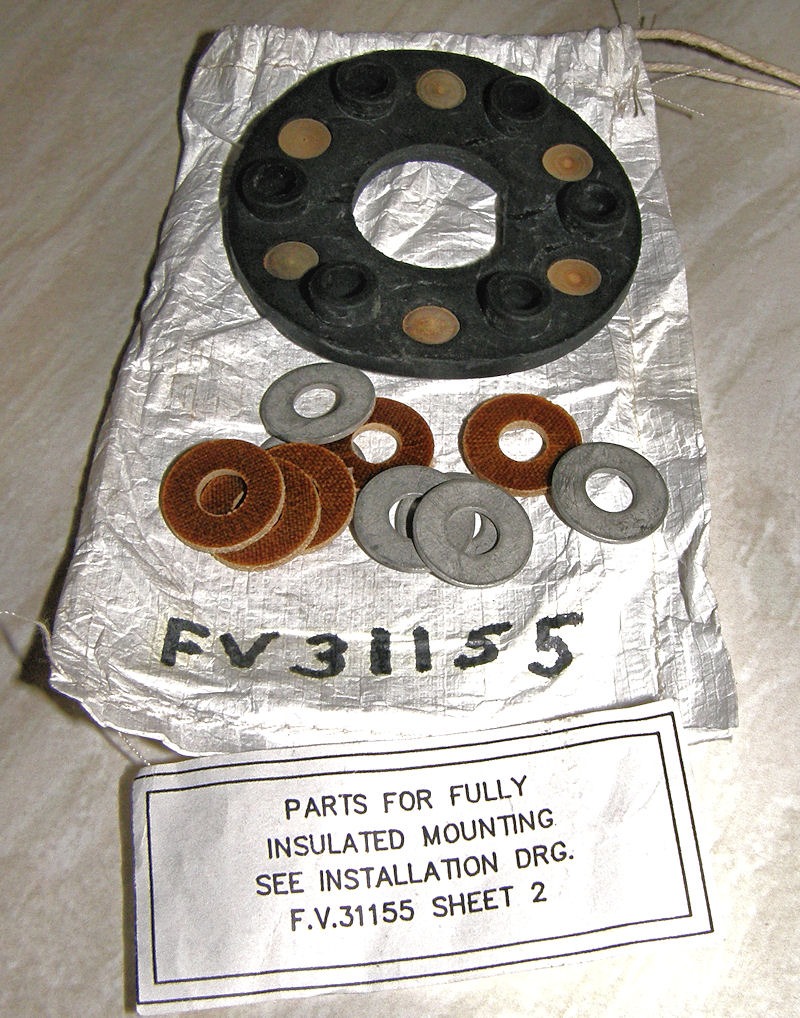

As yet I havn't worked out how the socket mounts onto a box, what holes are required and where the gaskets and washers go. Any information gratefully received.

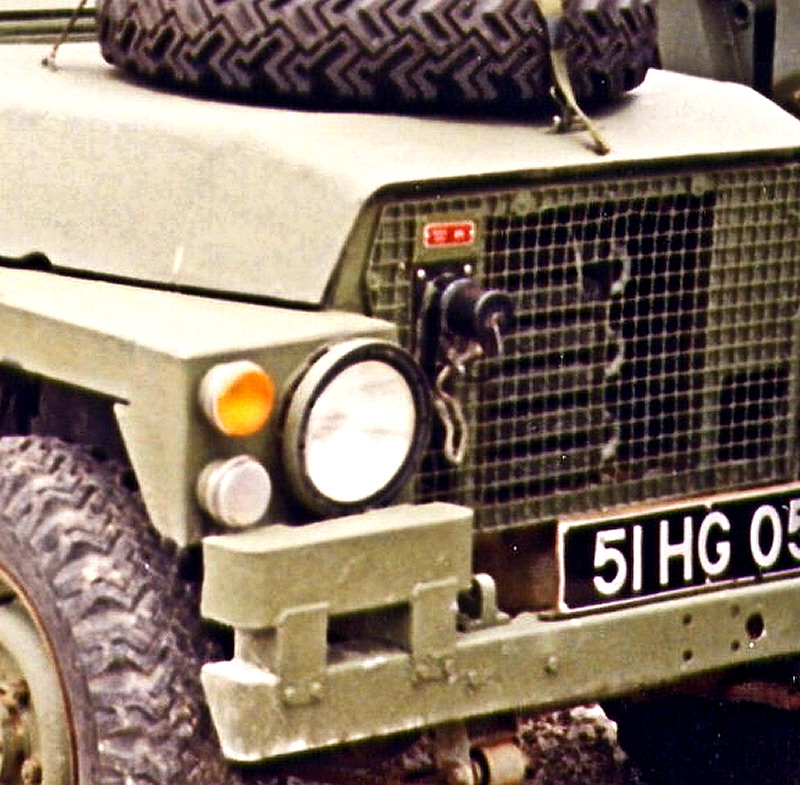

An interesting photo showing this Lightweight with an Interconnect socket mounted on the 'Grill'

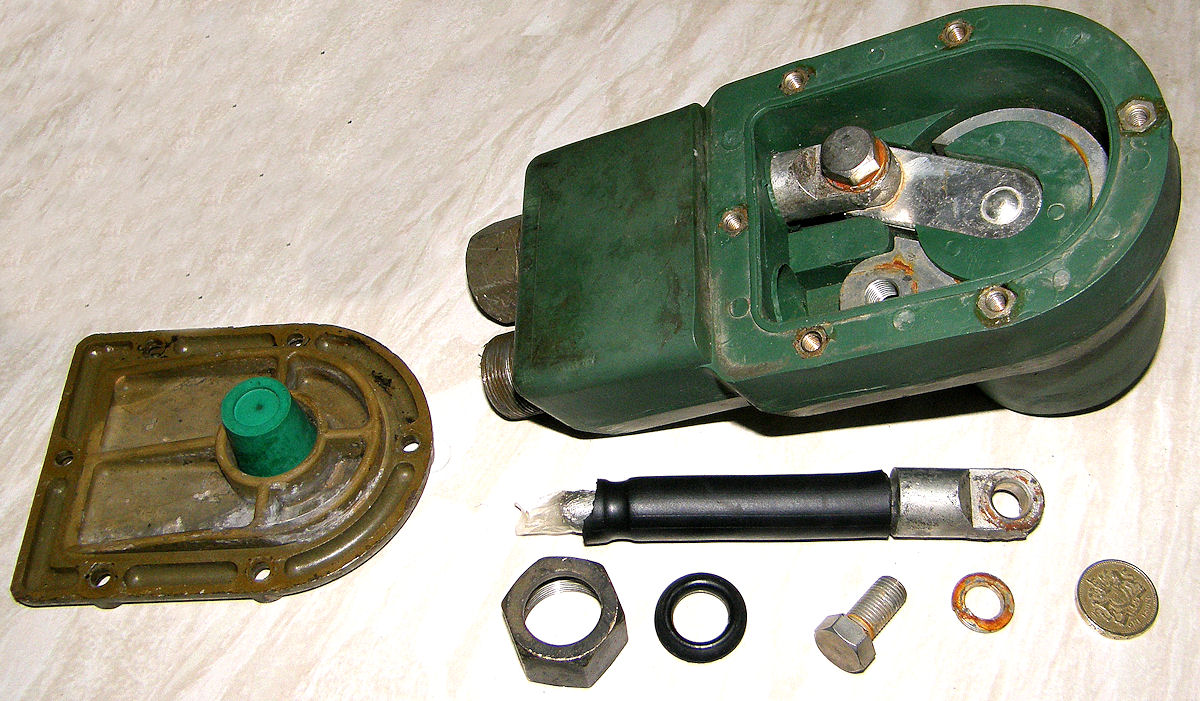

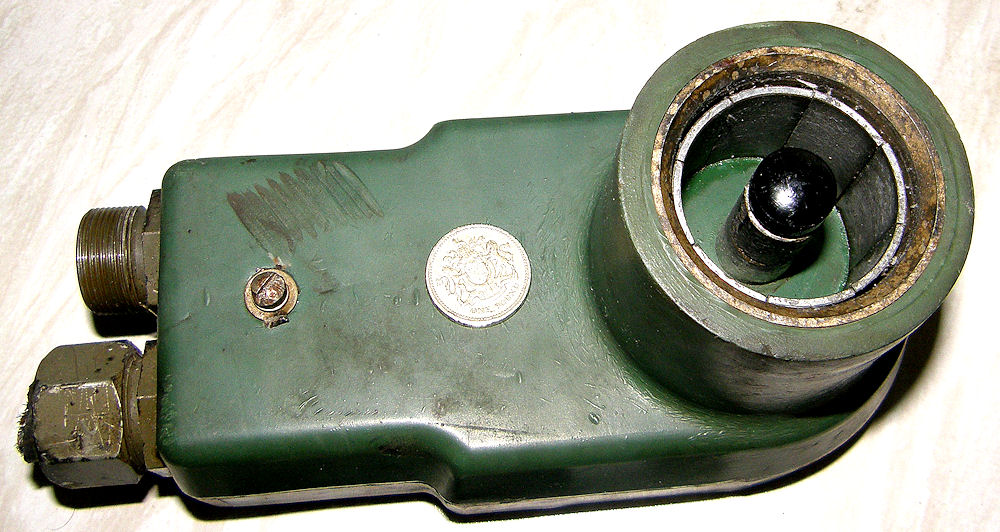

I have just received a parcel and wondered what was in this heavy package. The plug was considerably bigger than I ever imagined from the photographs.

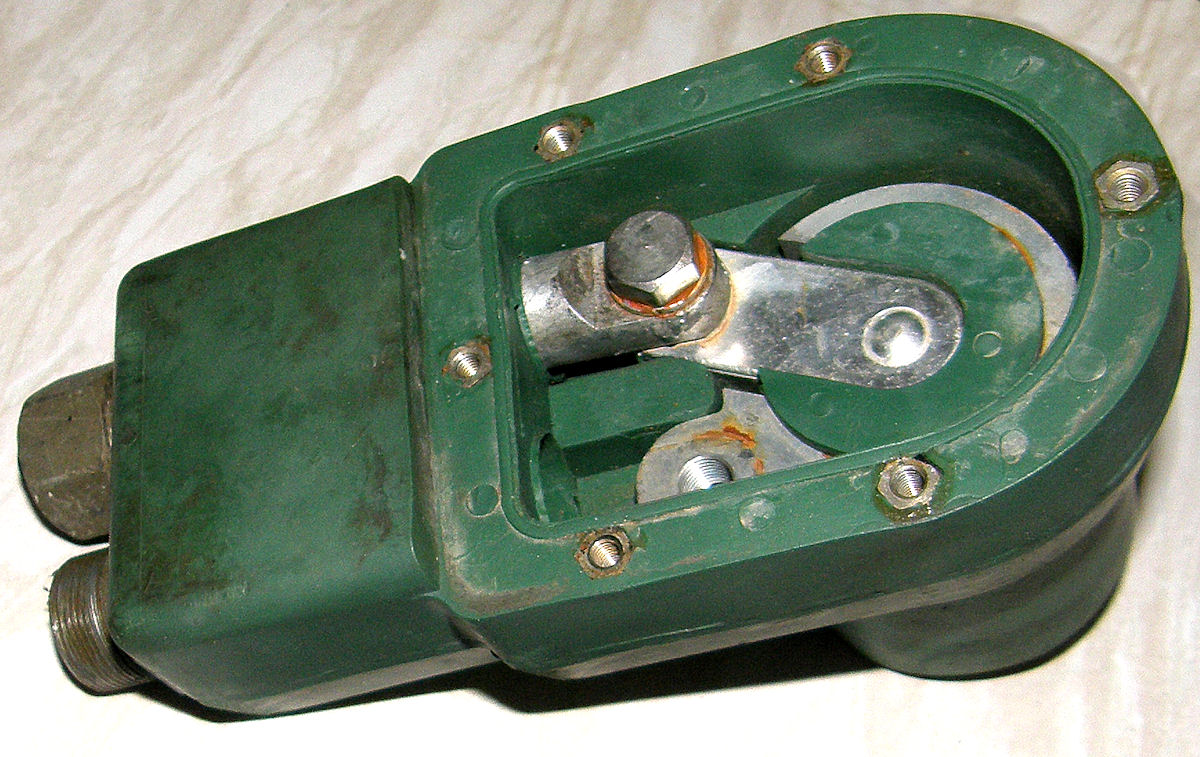

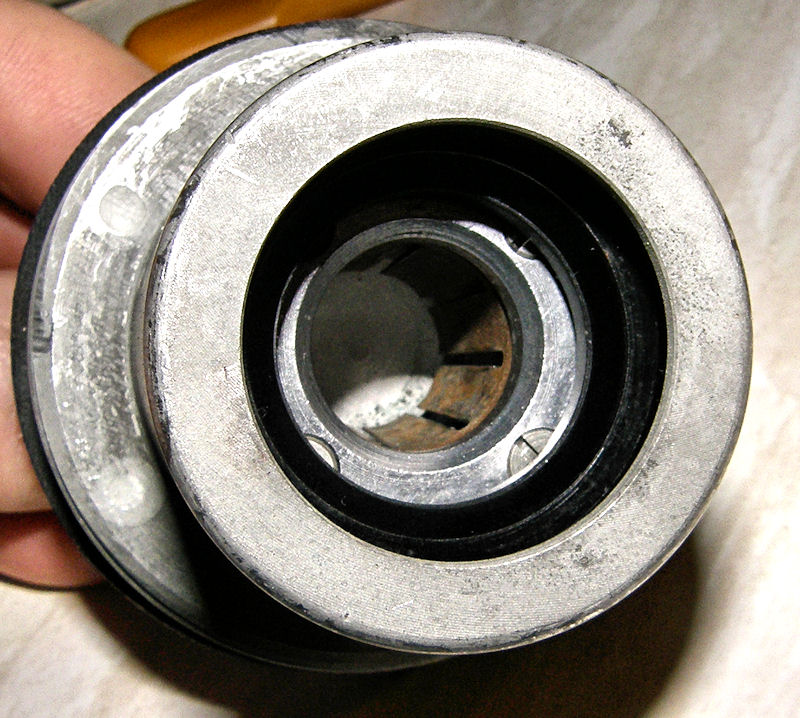

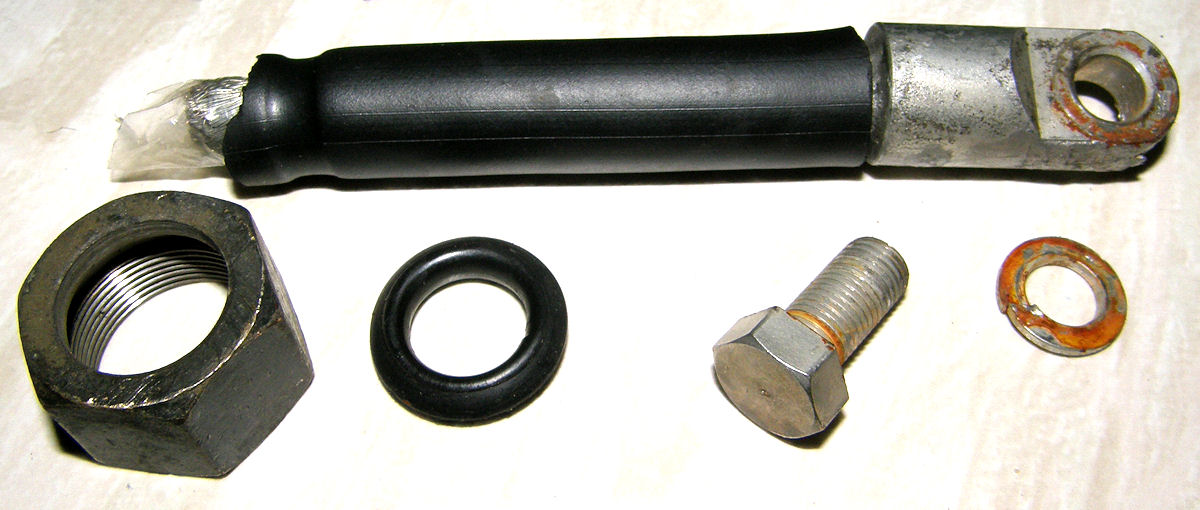

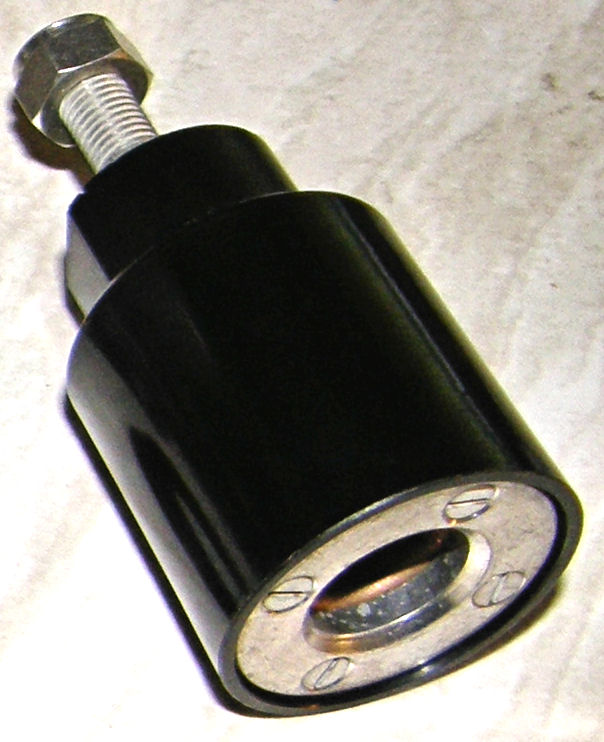

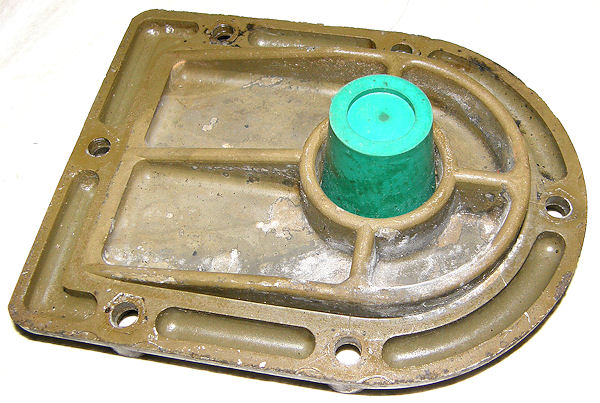

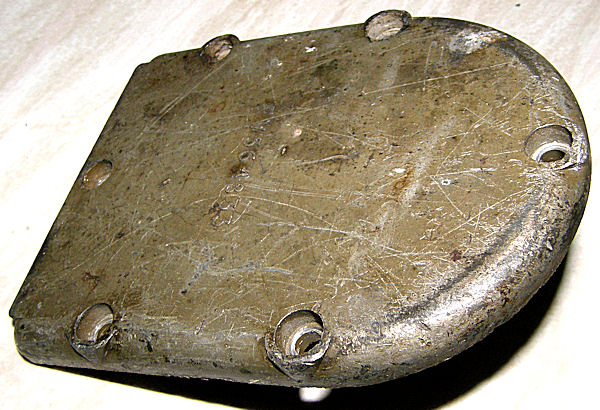

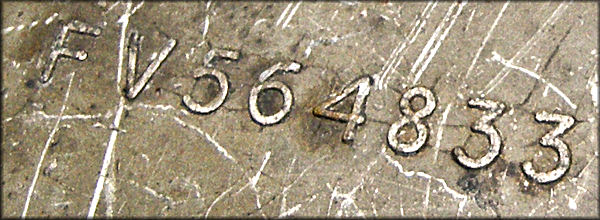

Intervehicle Free Plug (Solder)      SB-ORD 102      FV564833

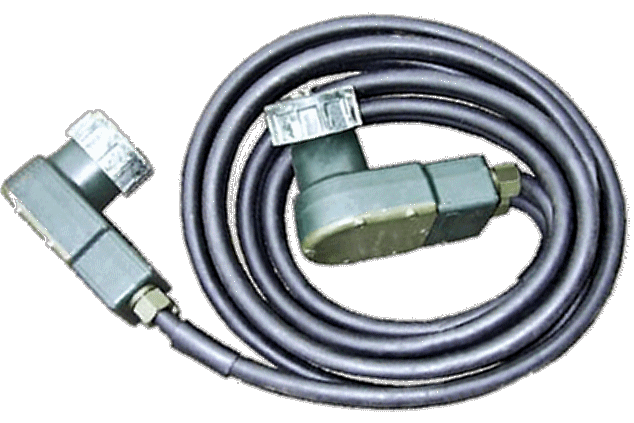

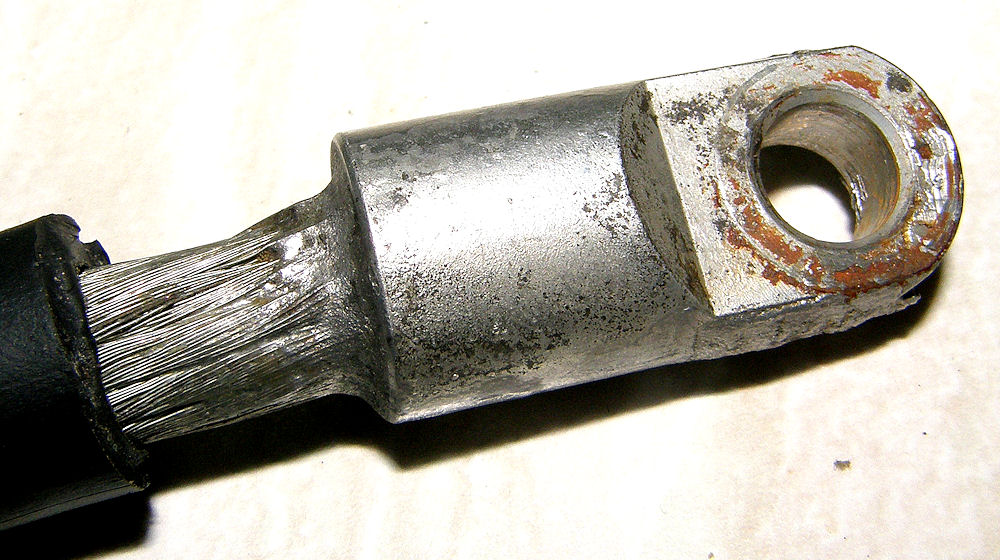

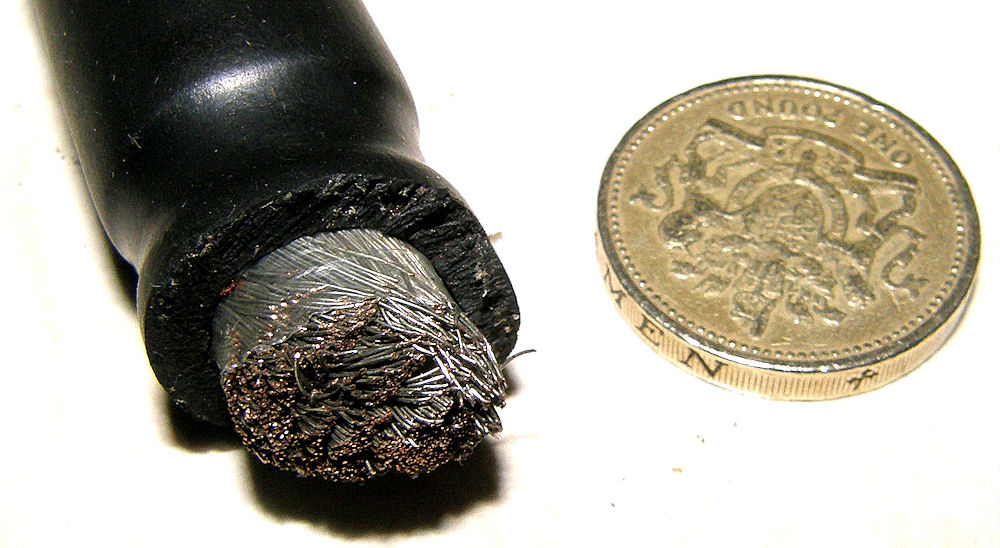

That's some cable!
