Land Rover Lightweight
23-KB-26
Clansman Radios
Vehicle Mounting

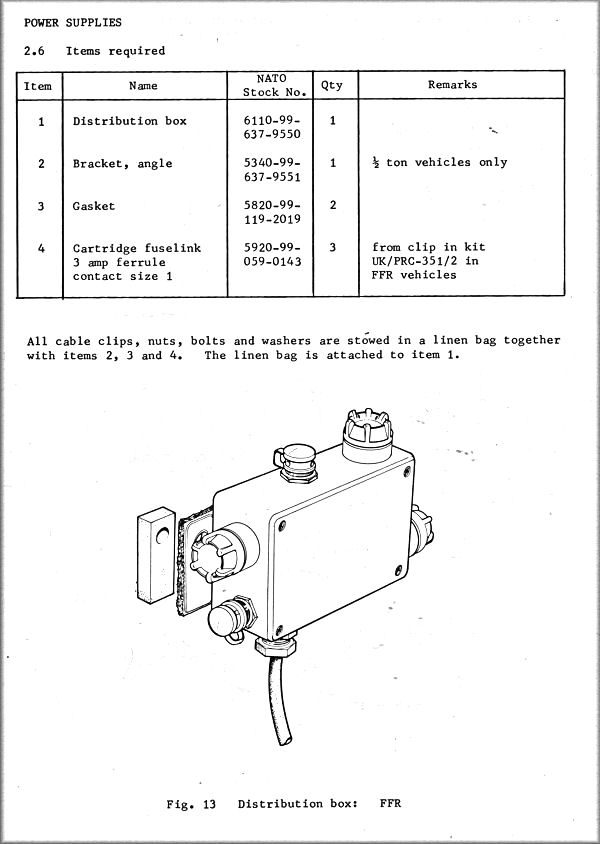

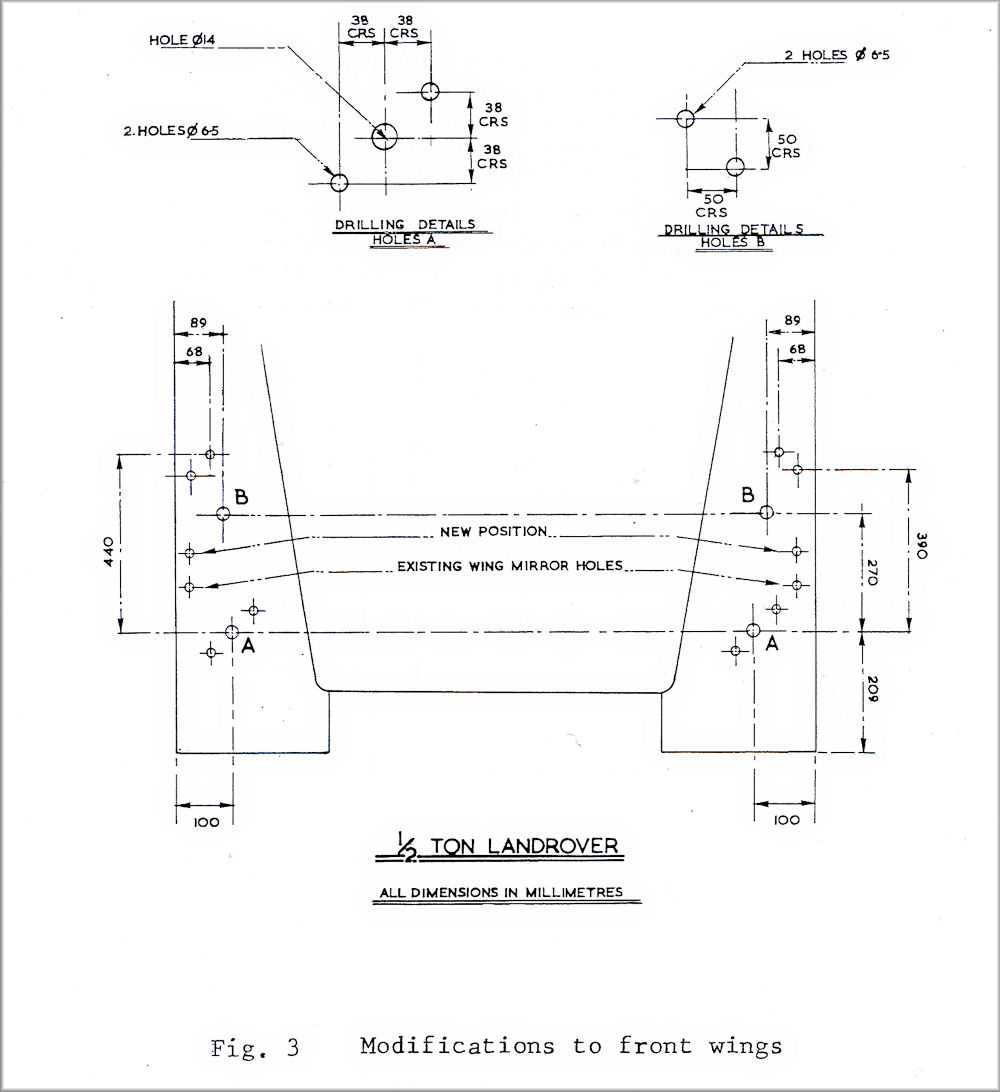

Click on images for full size Photo
 |
|||

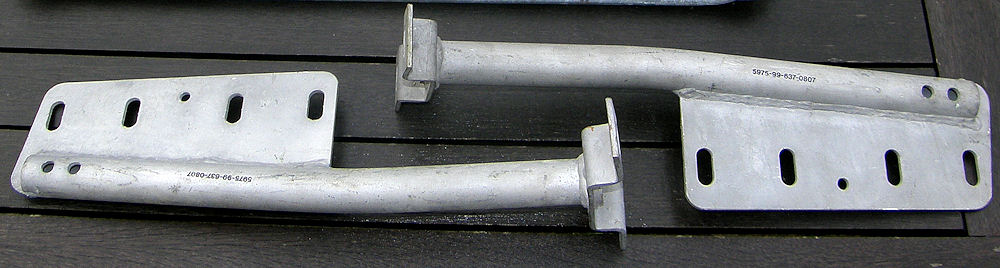

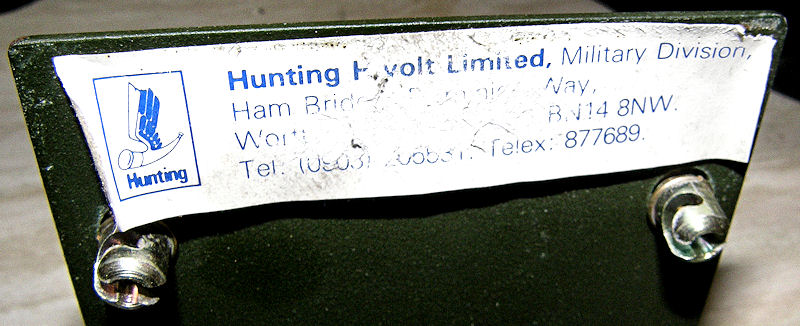

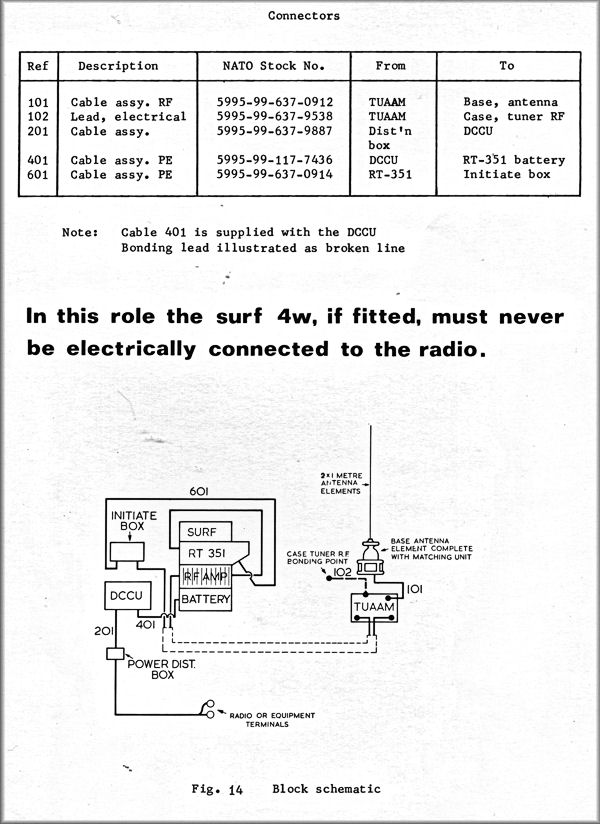

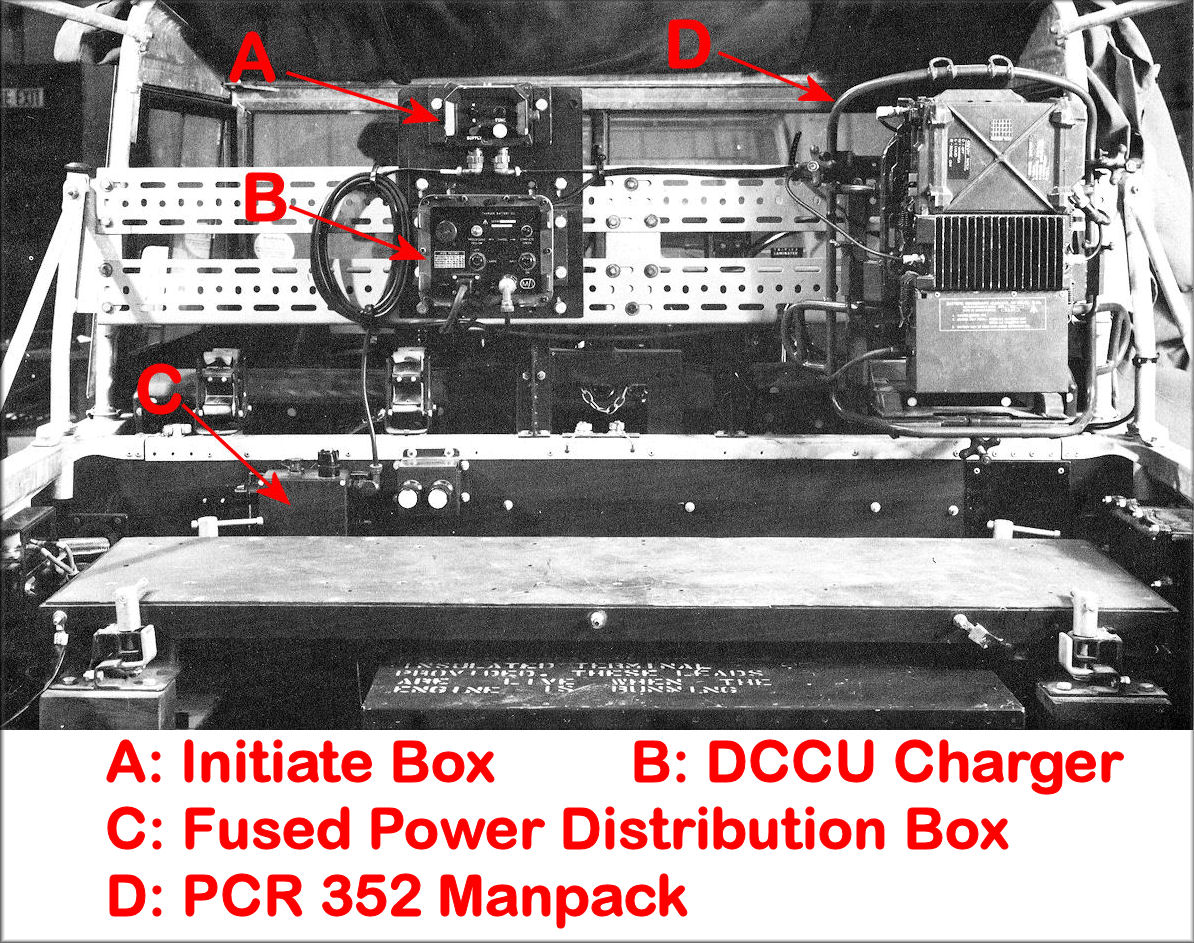

| Very useful reminder! | |||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||

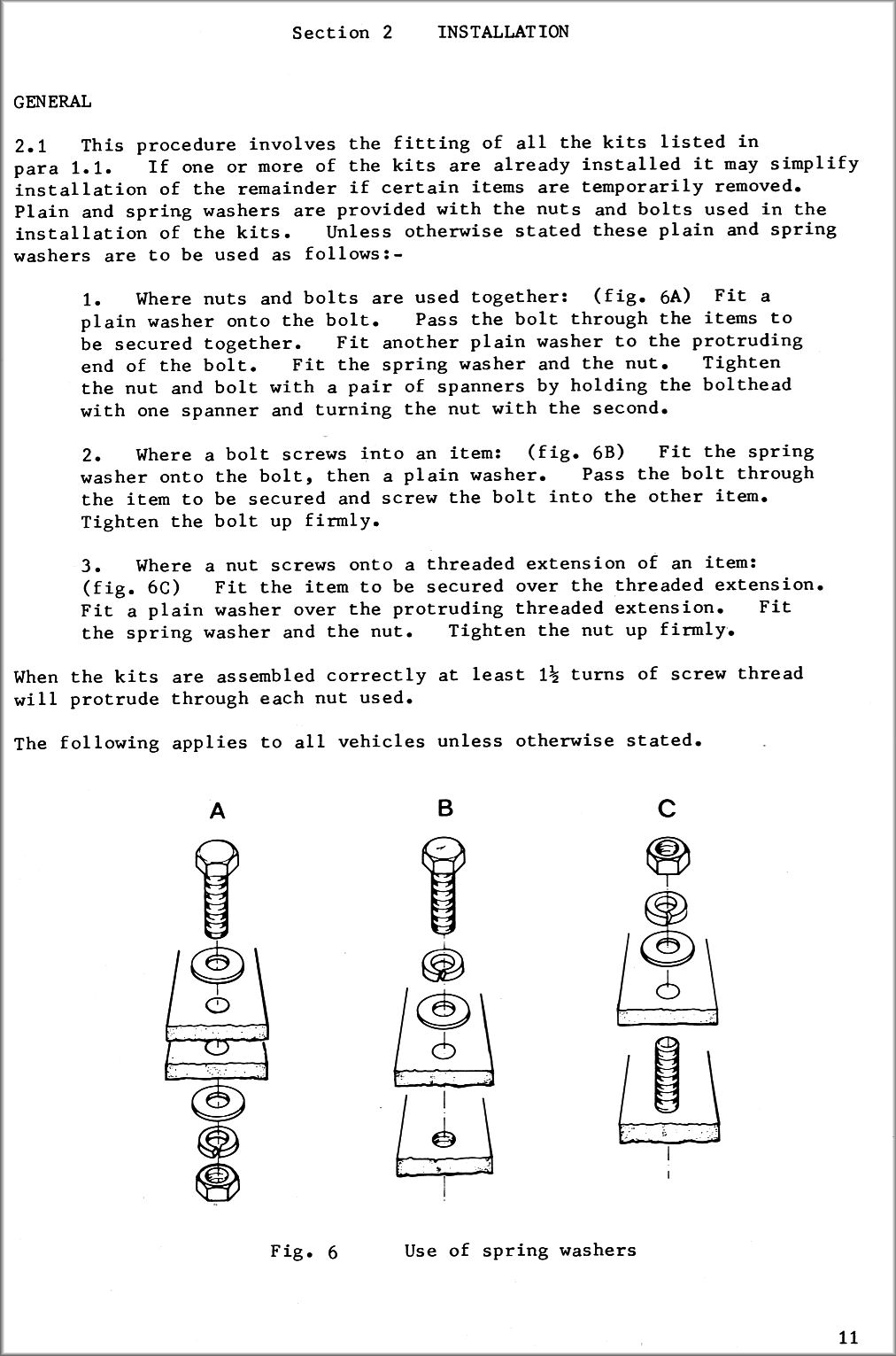

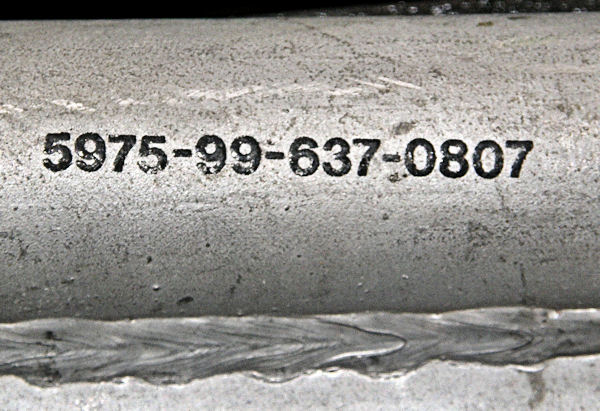

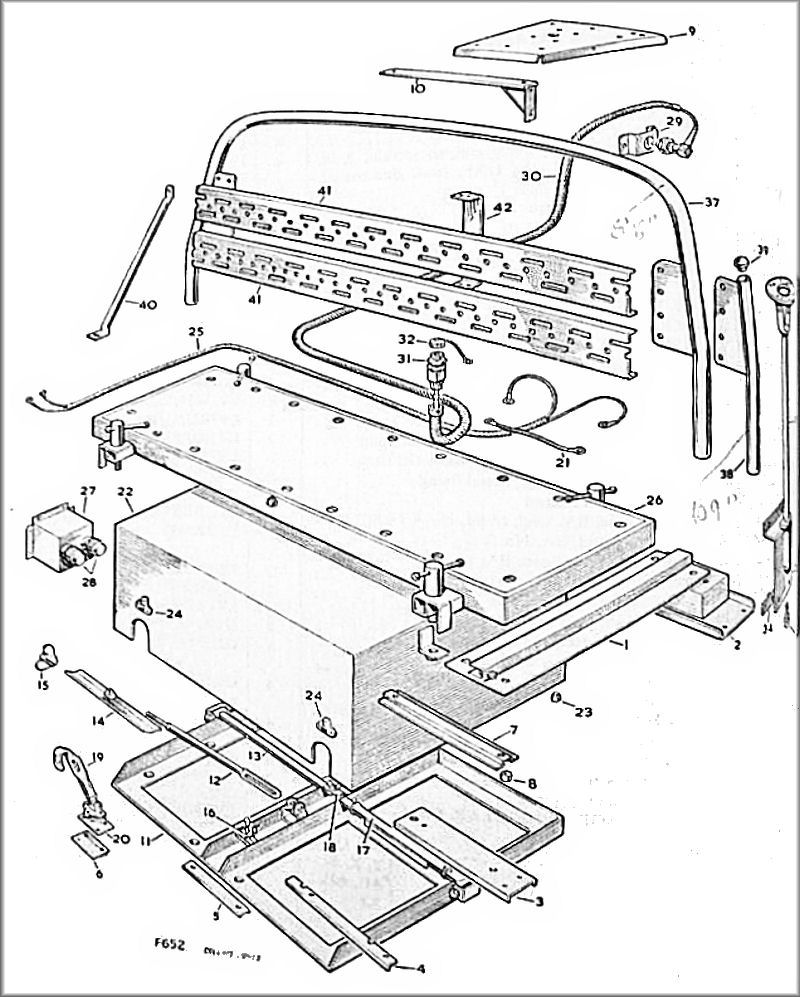

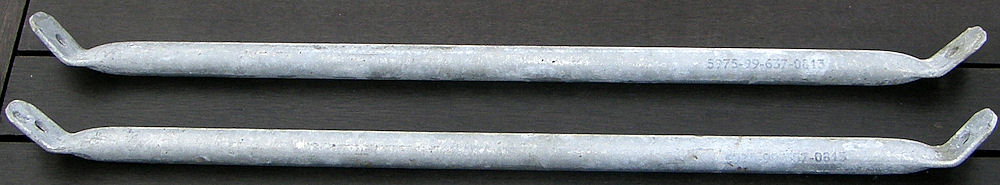

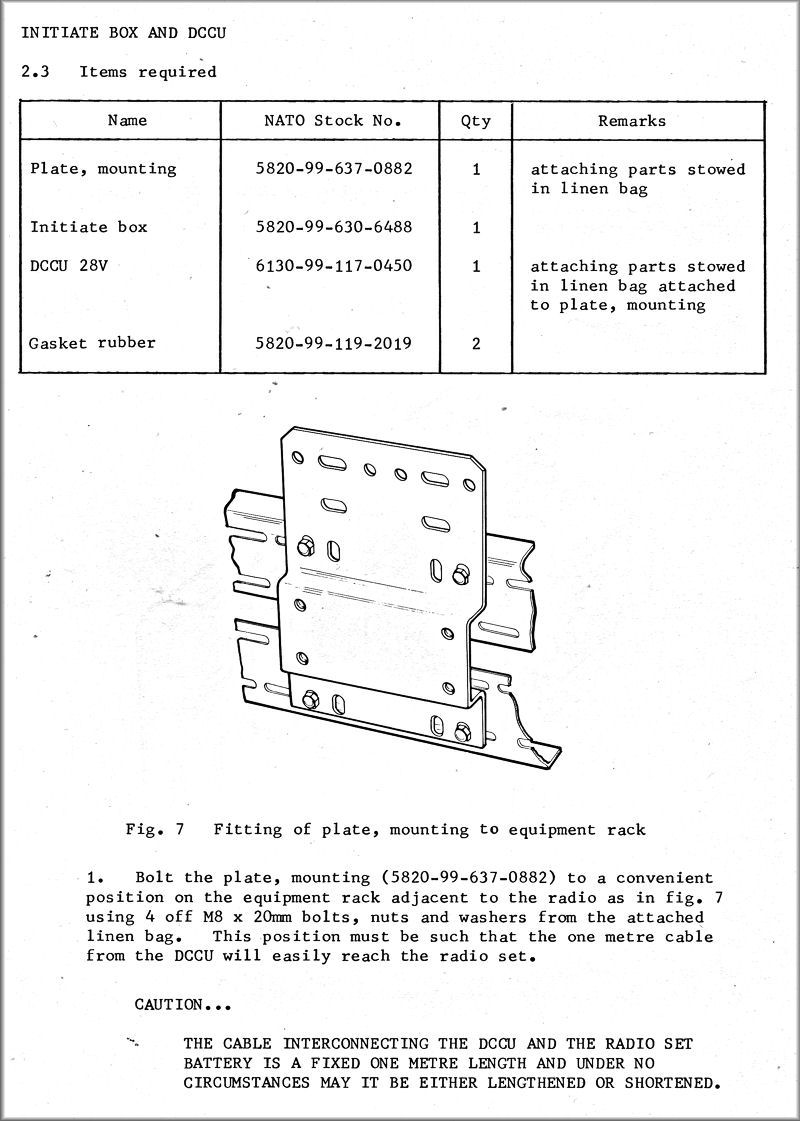

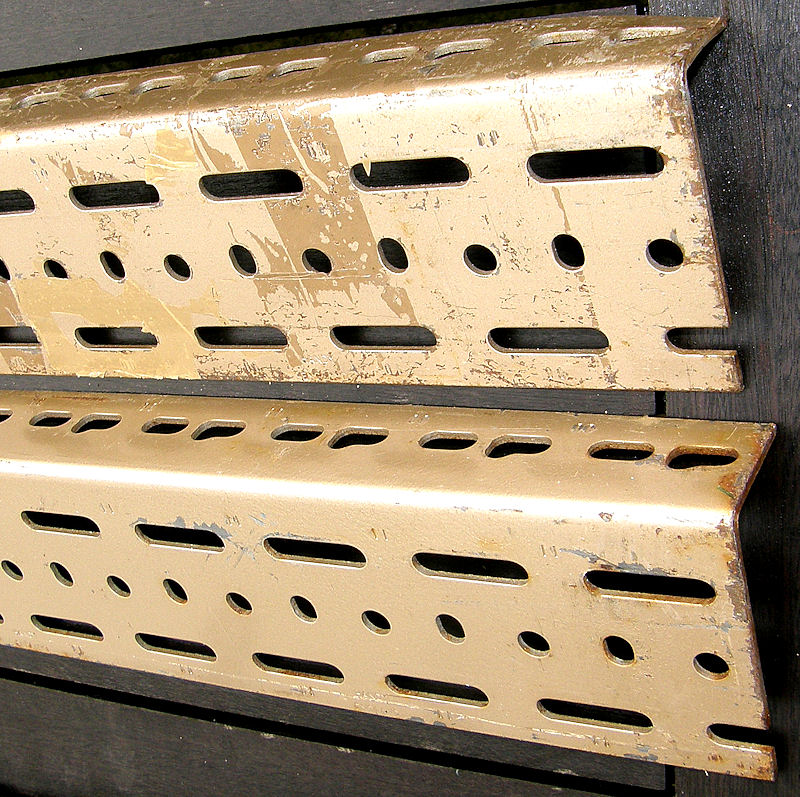

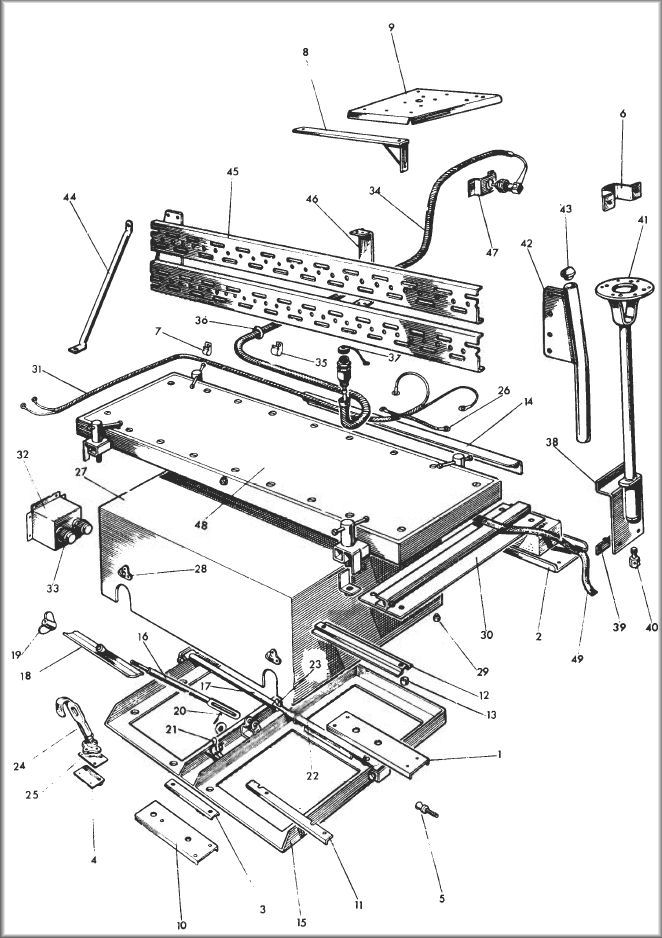

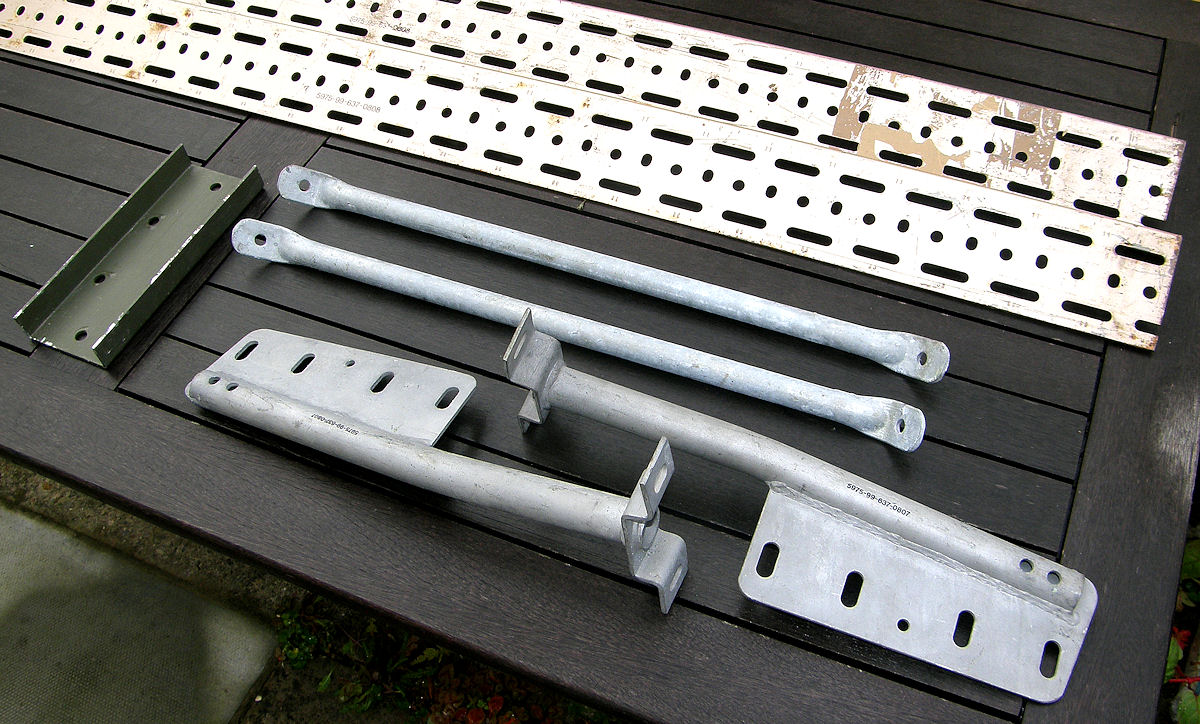

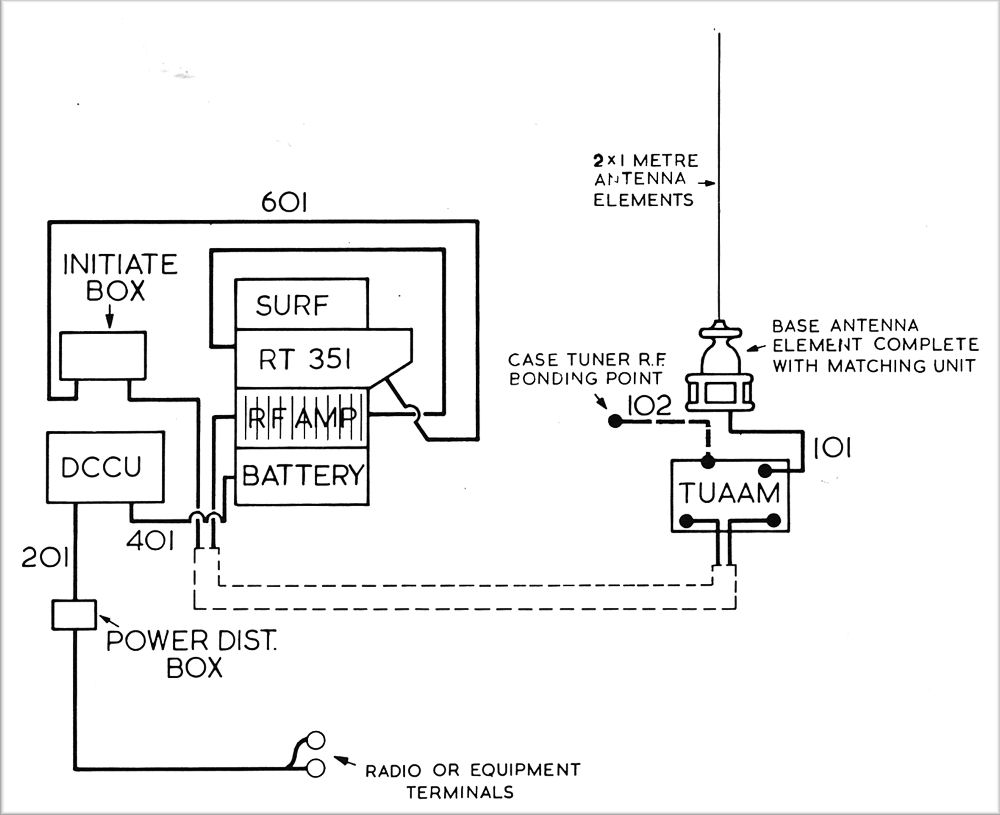

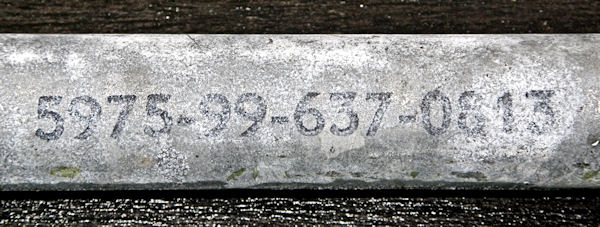

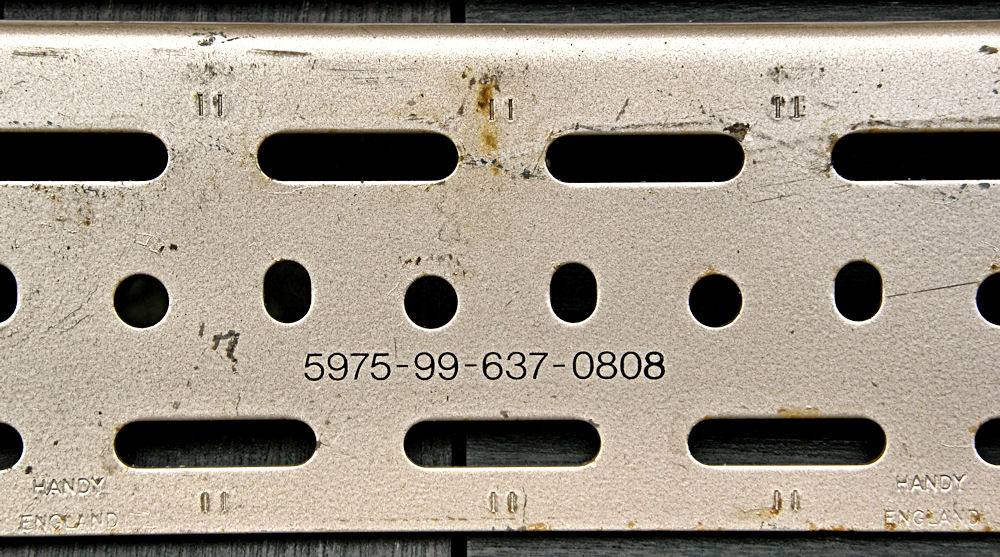

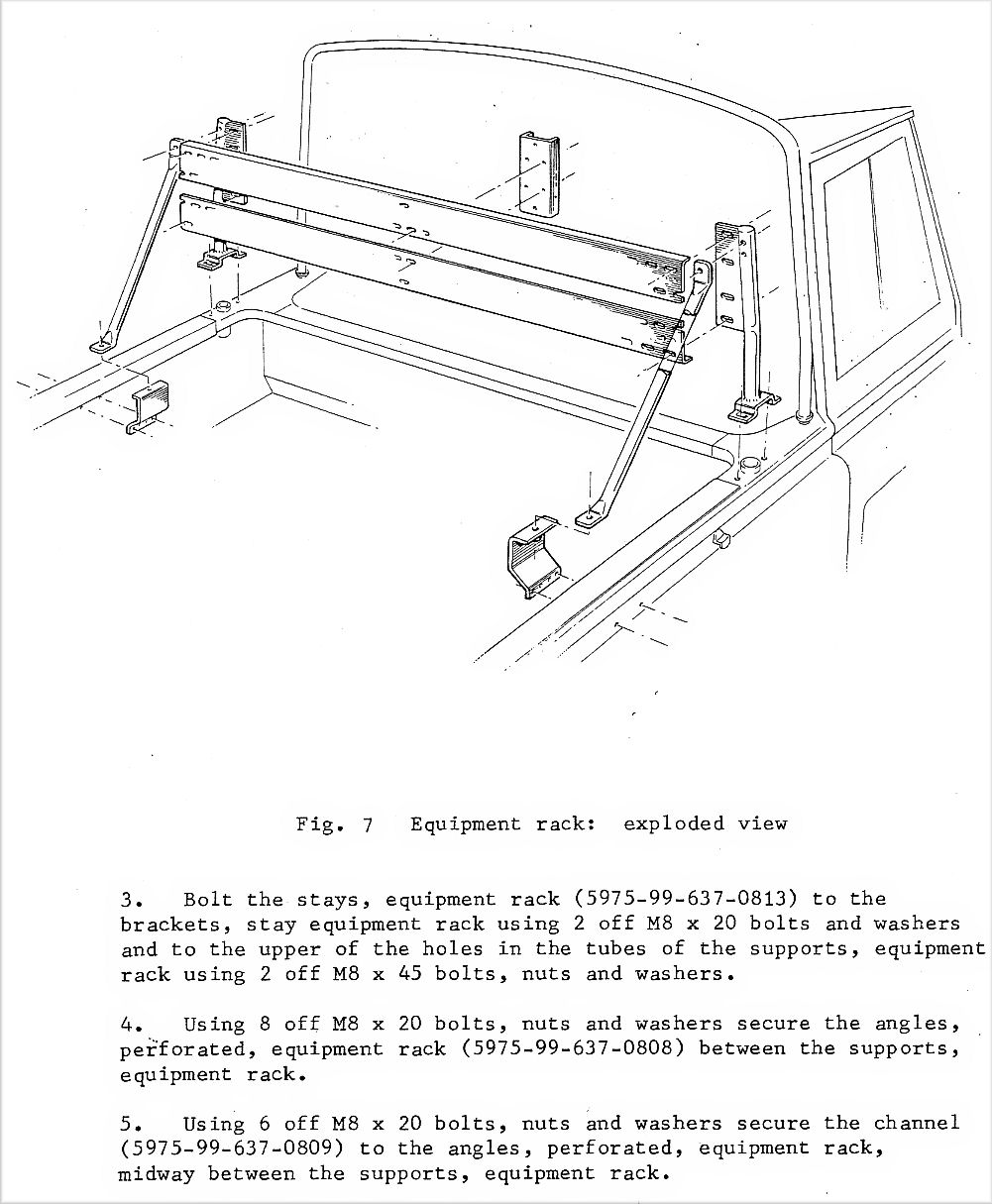

| Diagram for fitting Dexion Racking to tub, note special side brackets. | Initiate box to TUAAM cable route | ||
 |
 |
 |
 |

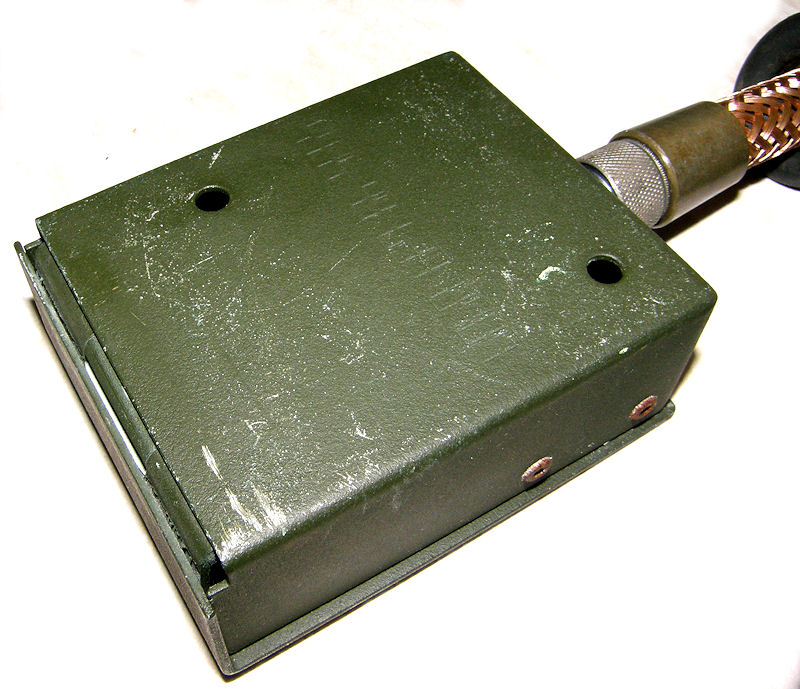

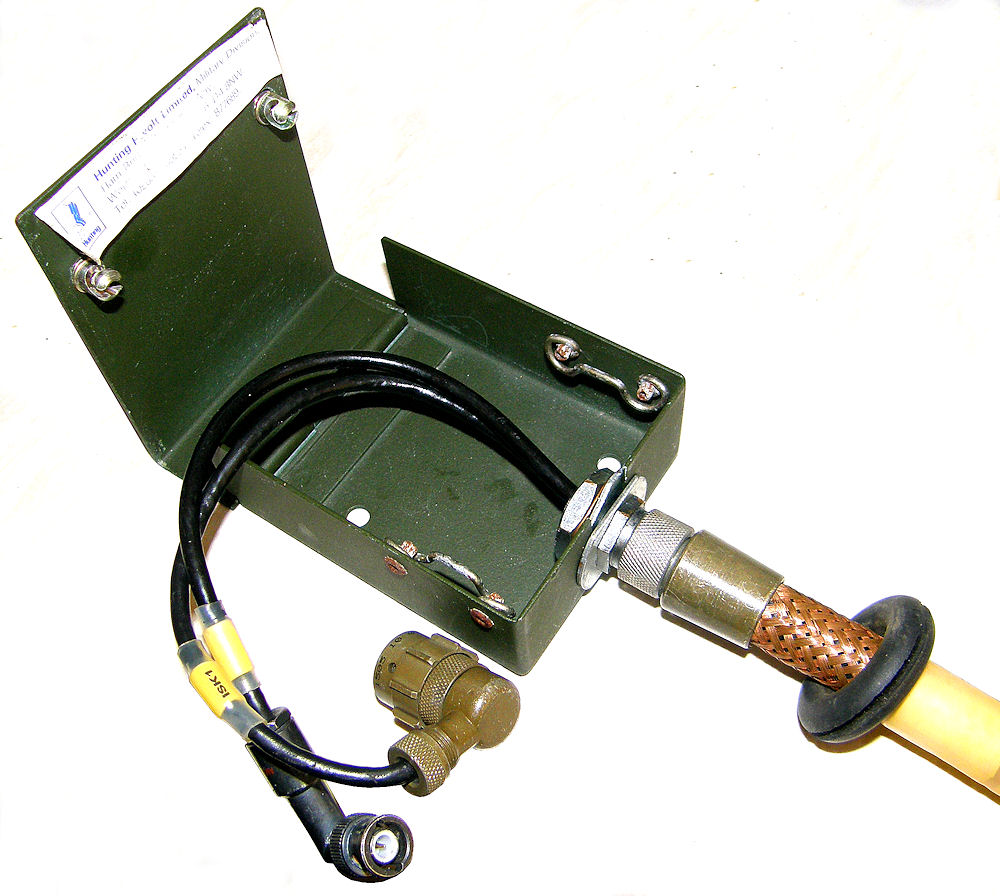

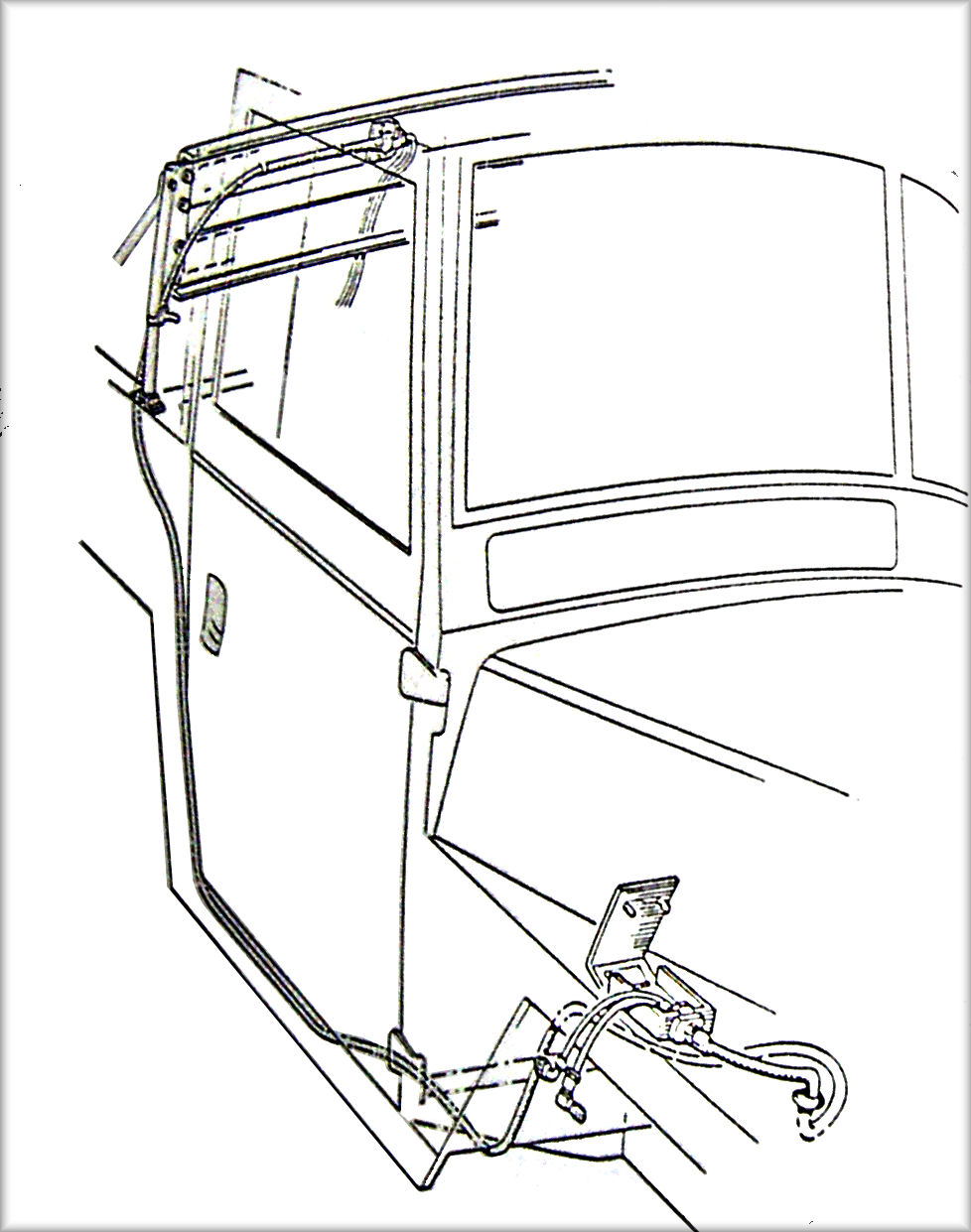

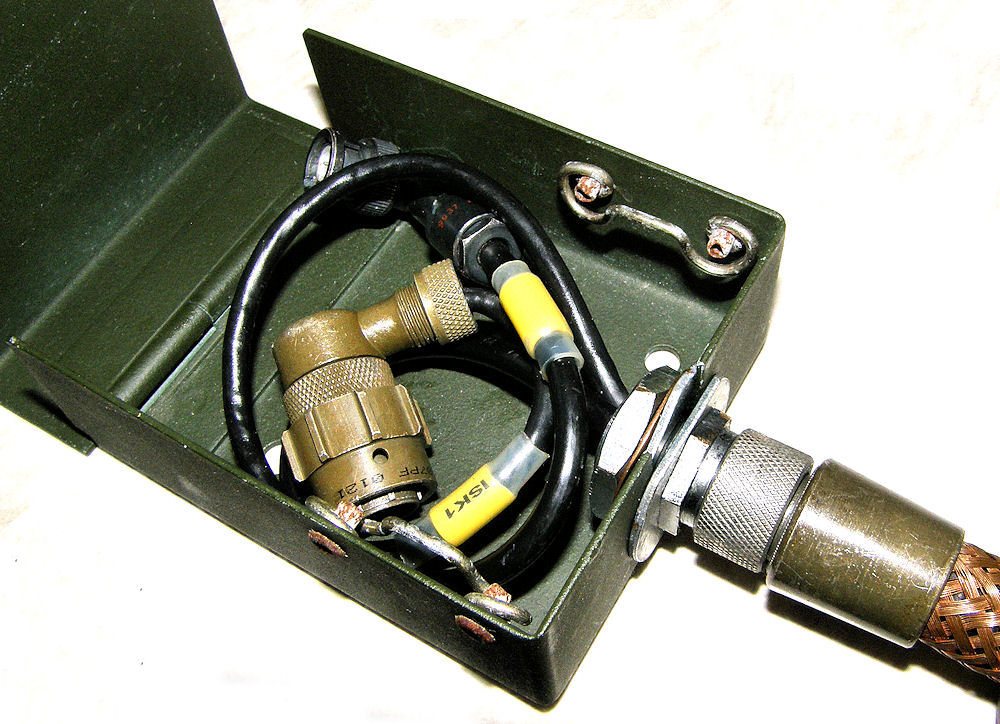

| Wing Mounted Cable Storage Box | |||
 |
 |
 |
|

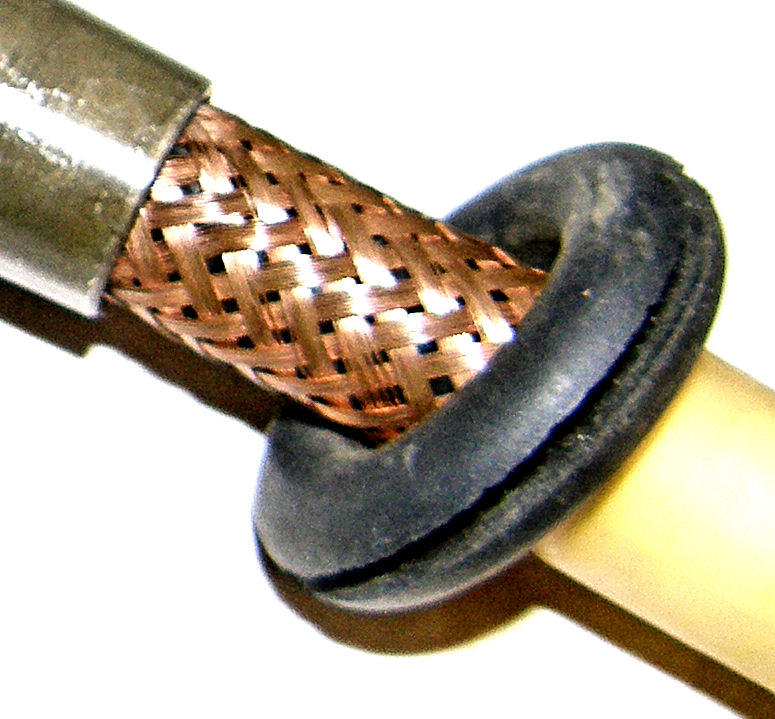

| Cable Grommet requires a 1" diameter hole | |||
 |
 |
 |
 |

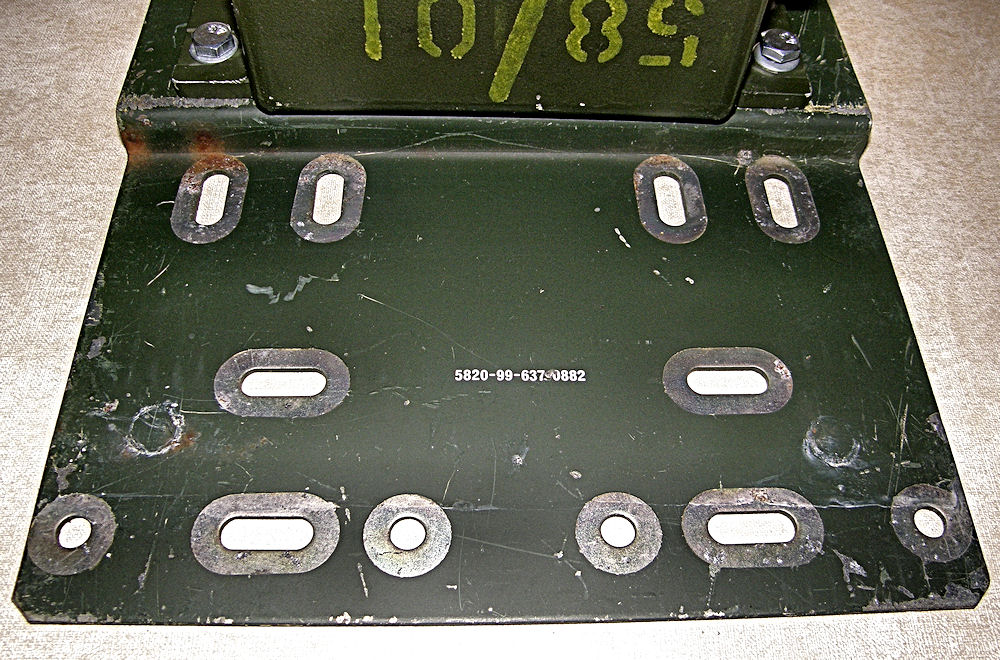

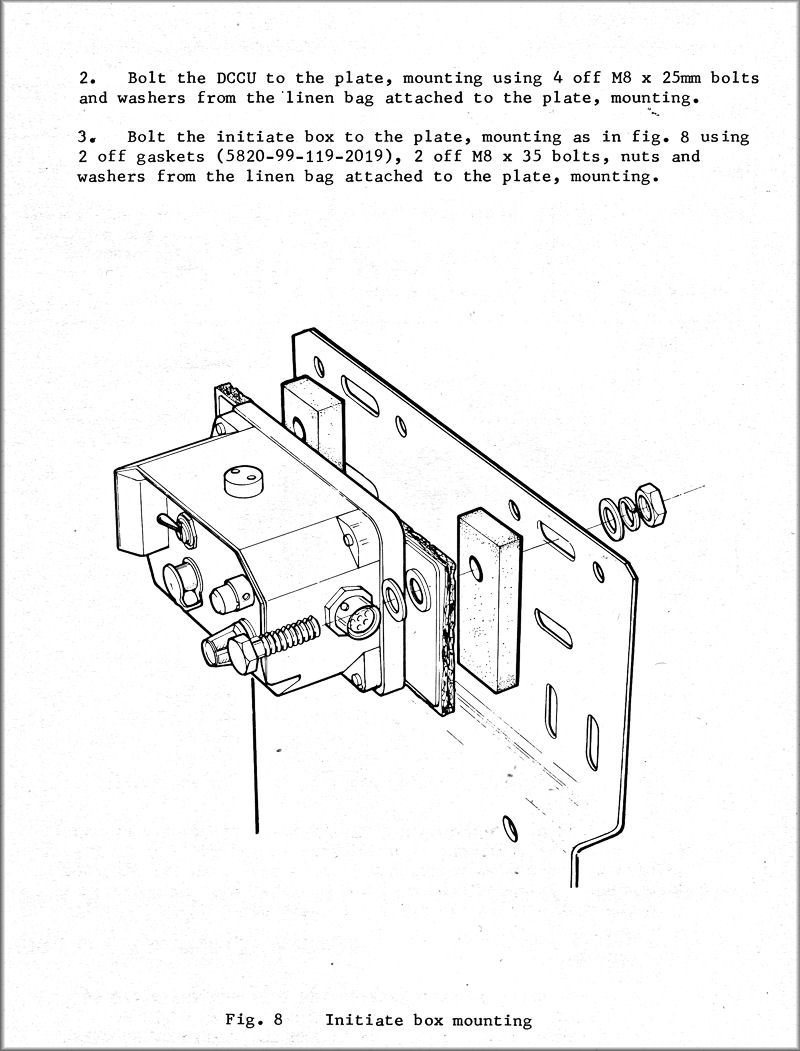

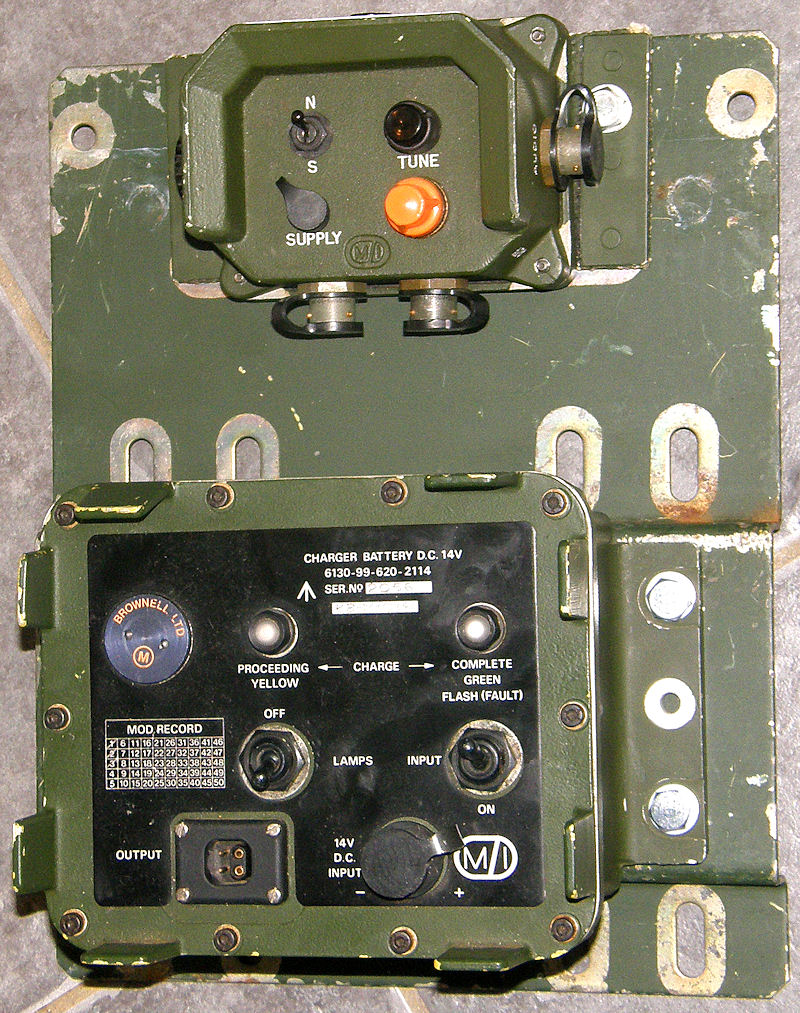

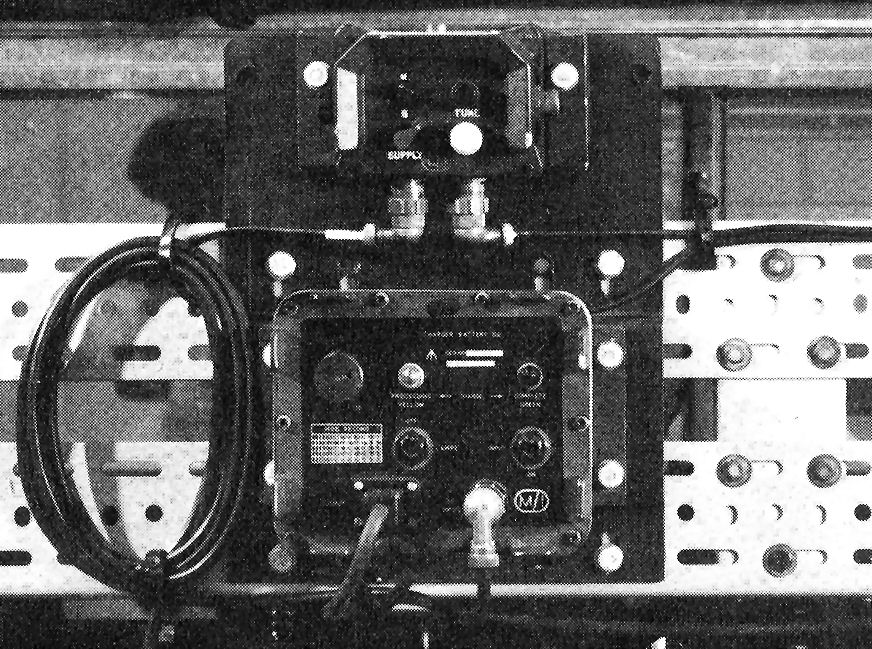

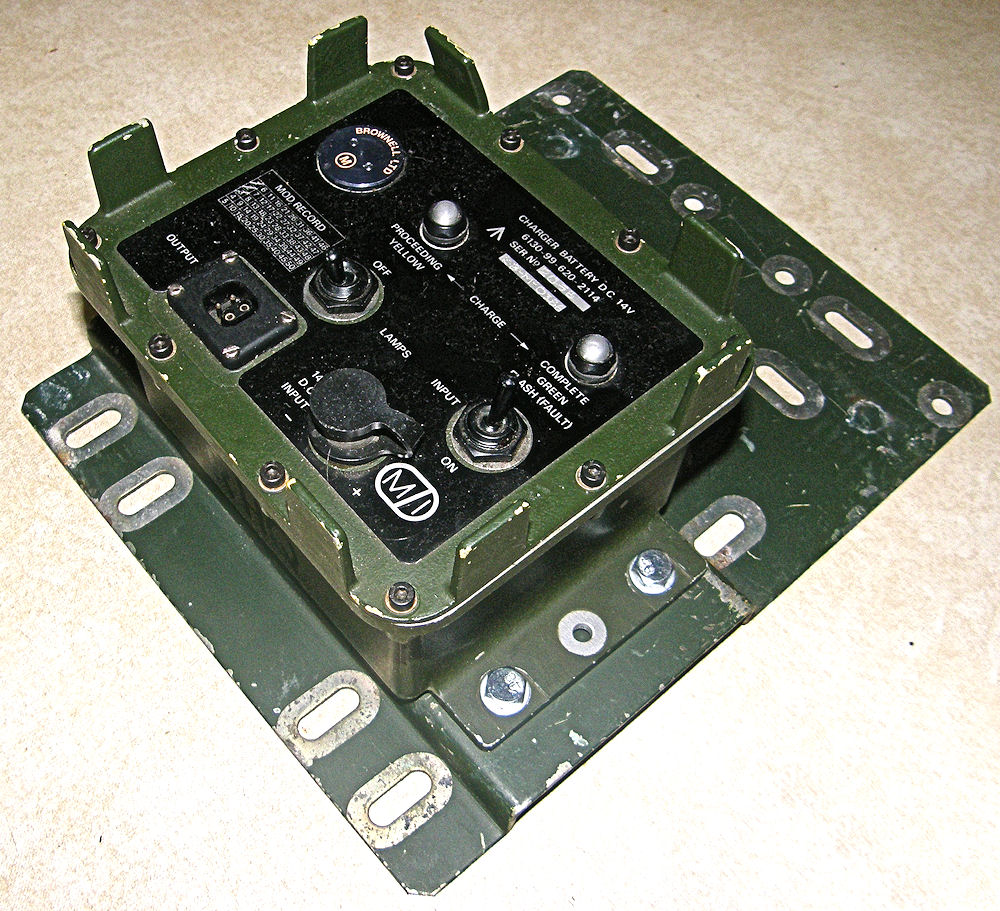

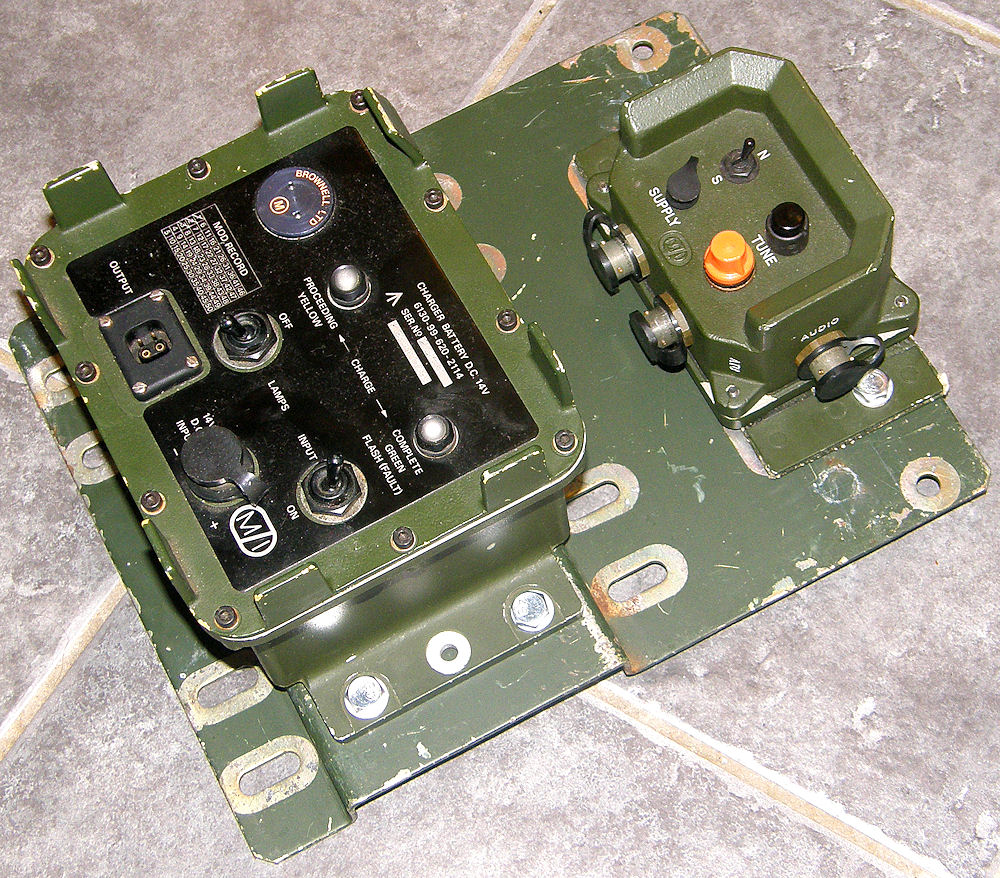

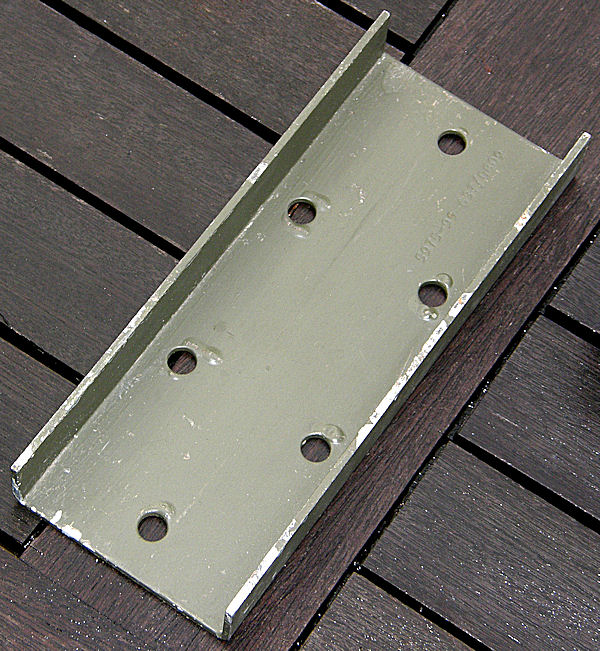

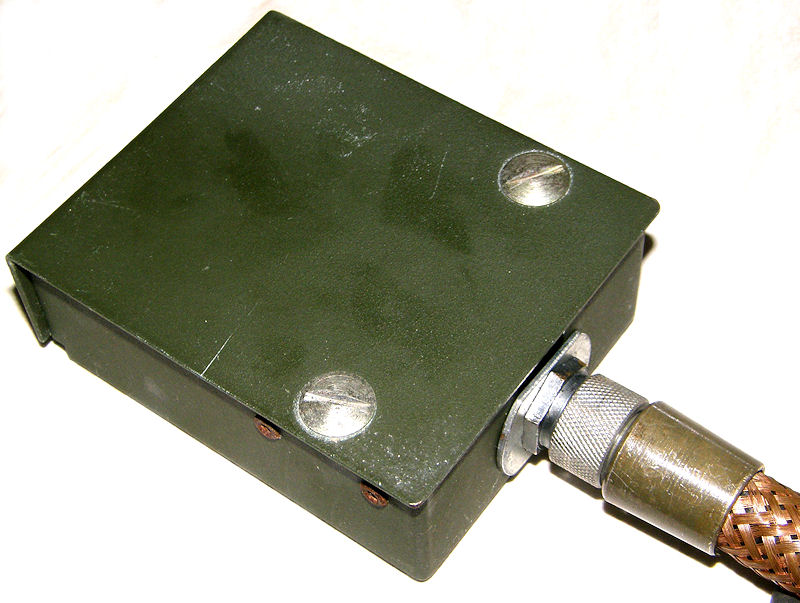

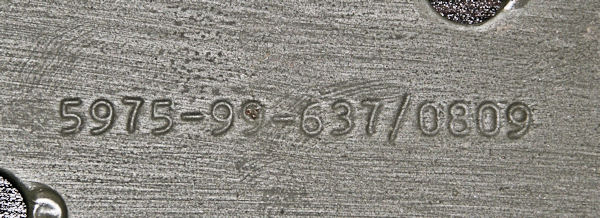

| DCCU and Initiate Box mounting plate | |||
 |
 |
 |
 |
 |
 |
 |
 |
 |
