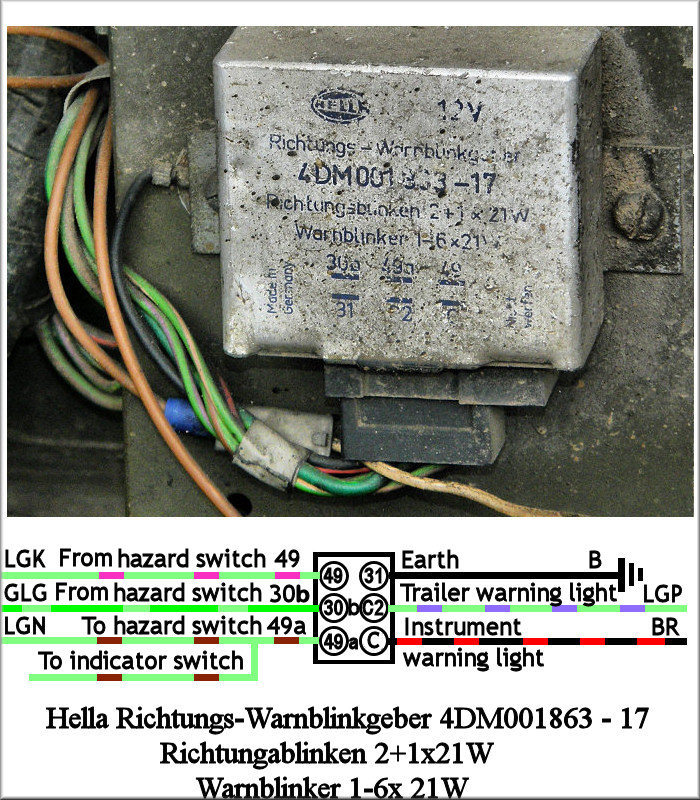

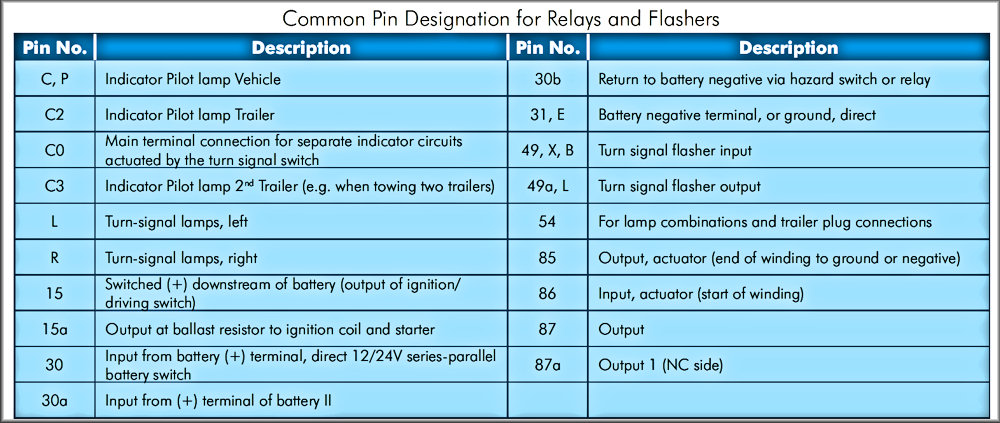

12V Flasher Unit |
24V Flasher |

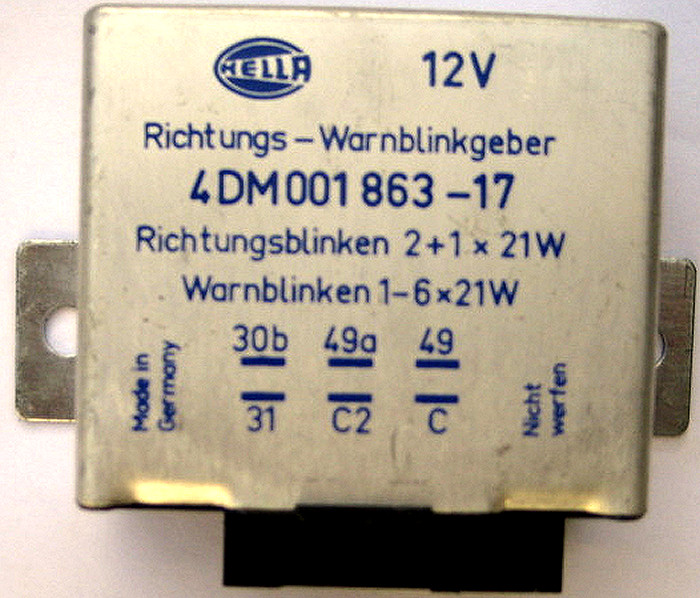

12/24V Flasher |
|
 |
 |
 |
 |

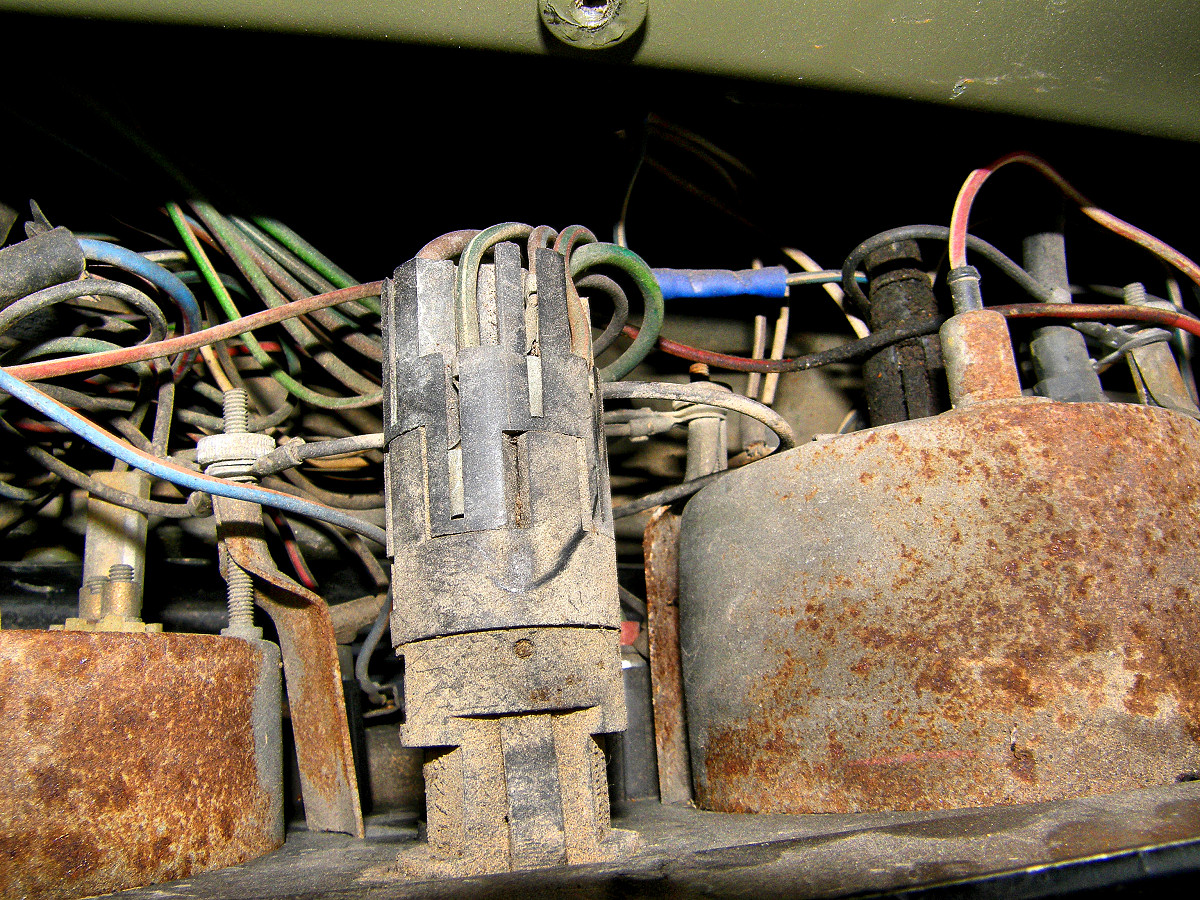

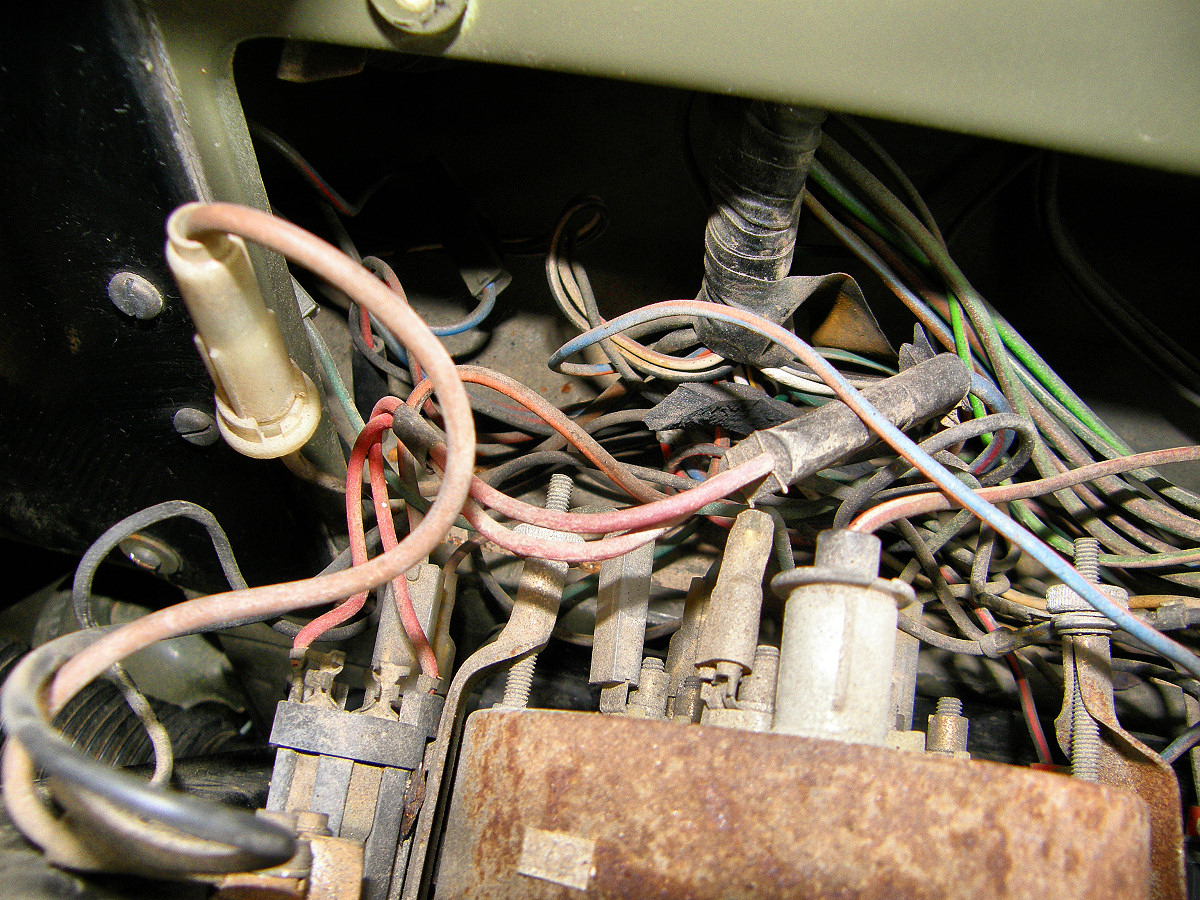

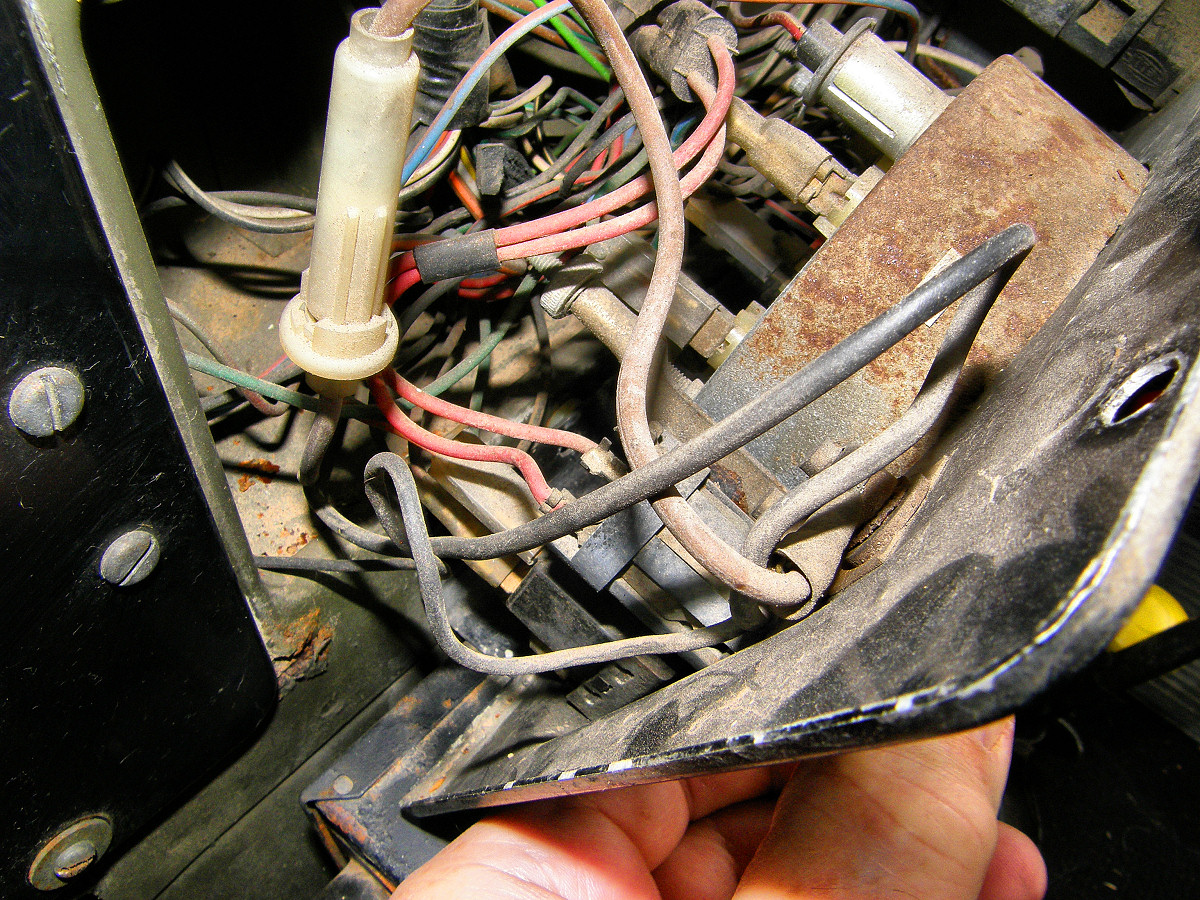

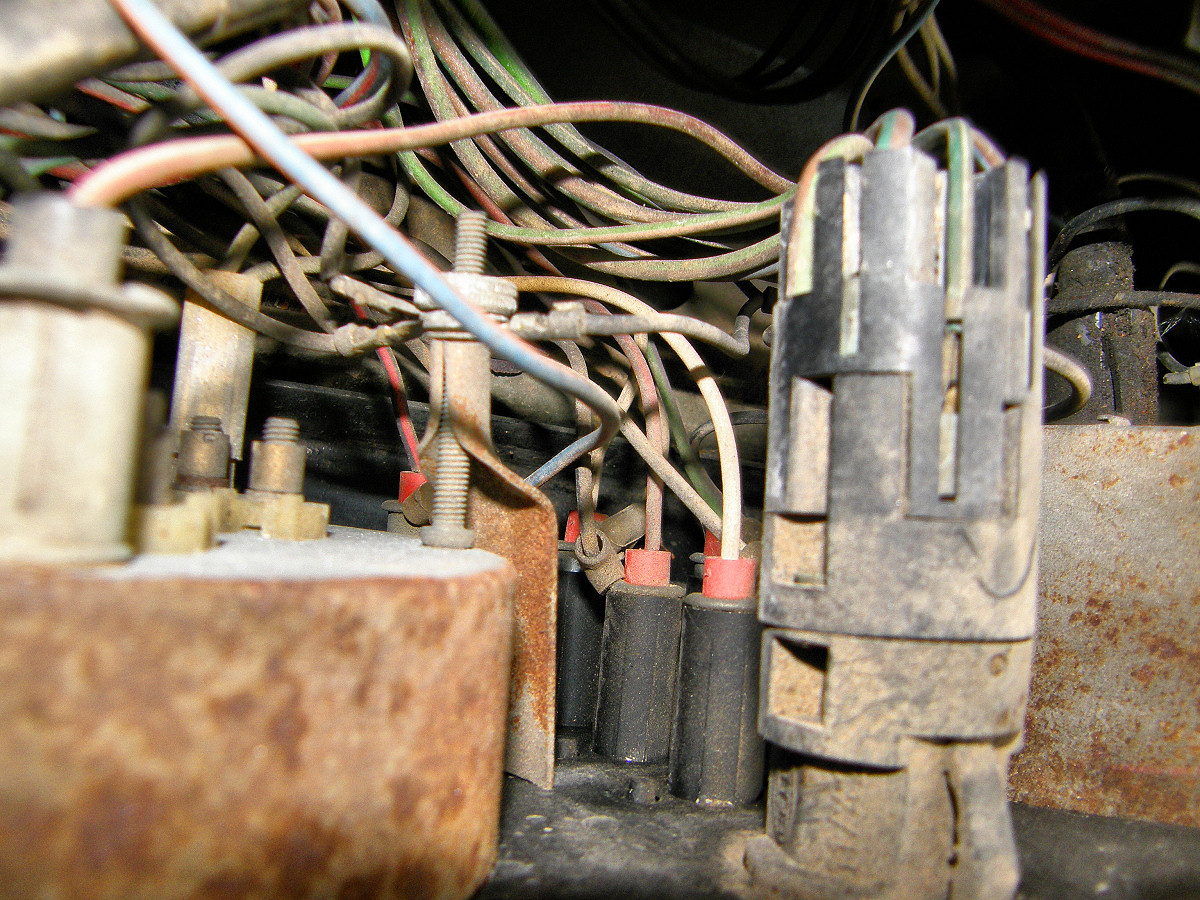

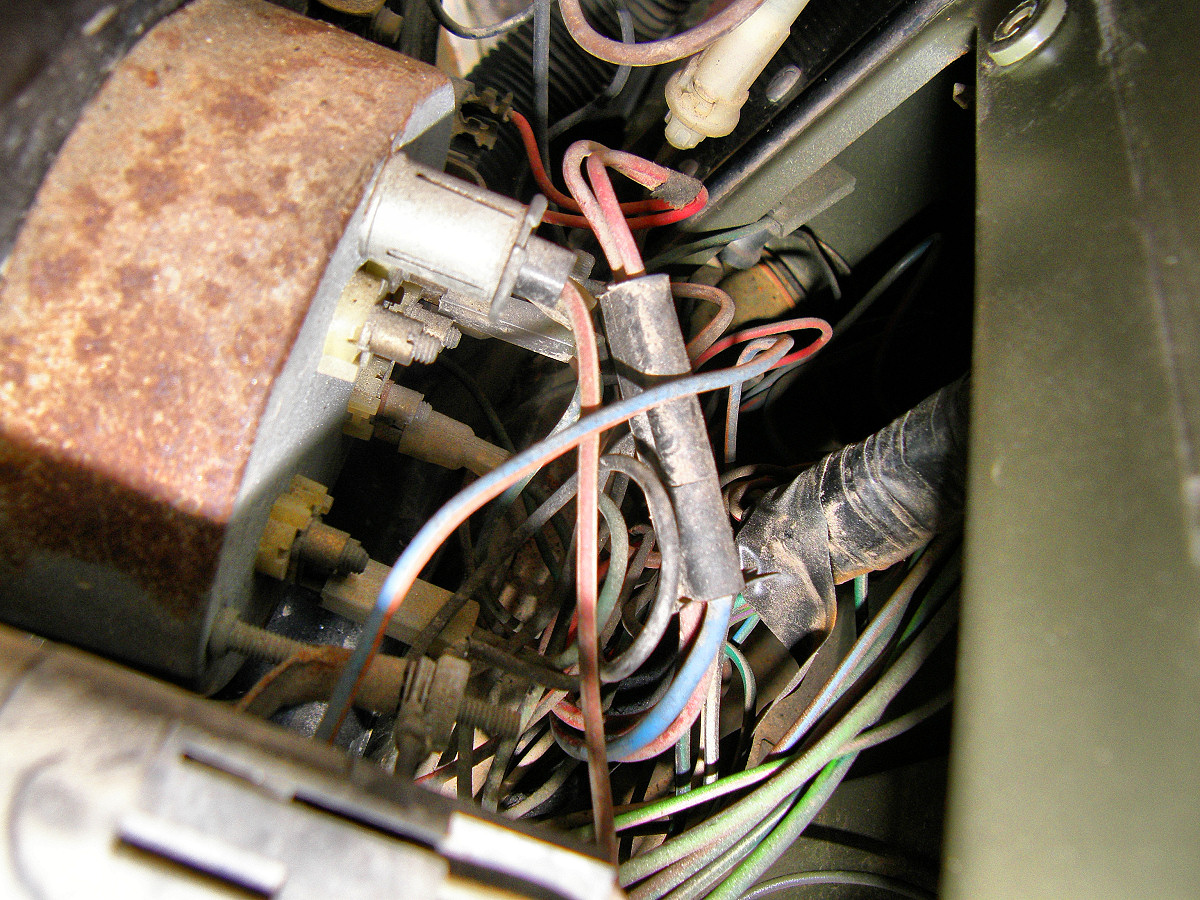

| Wiring behind Instrument Panel |
 |
 |
 |
 |

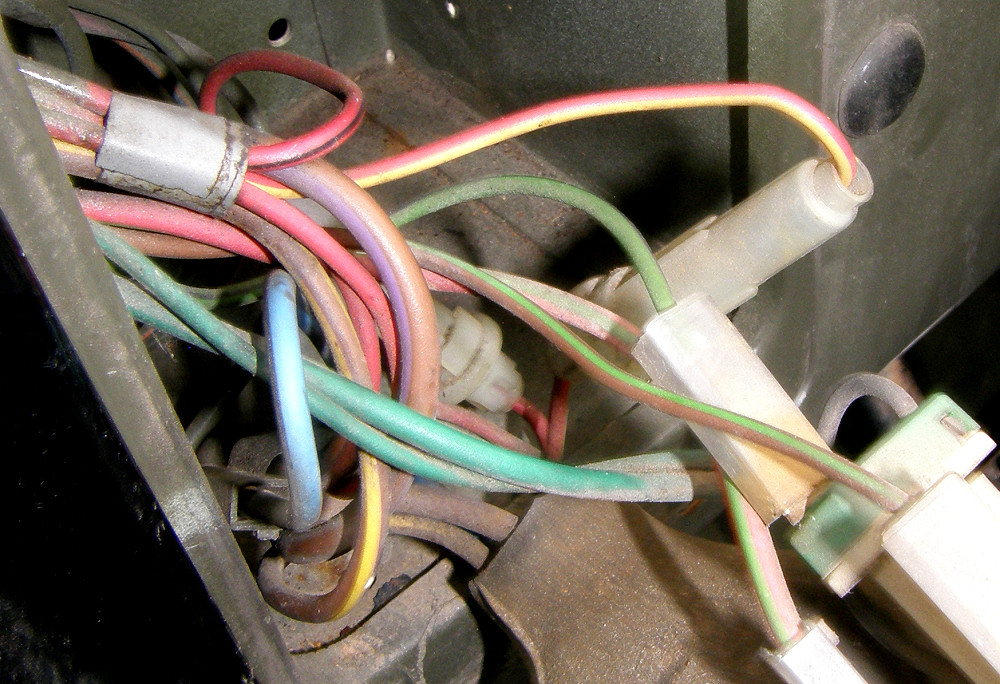

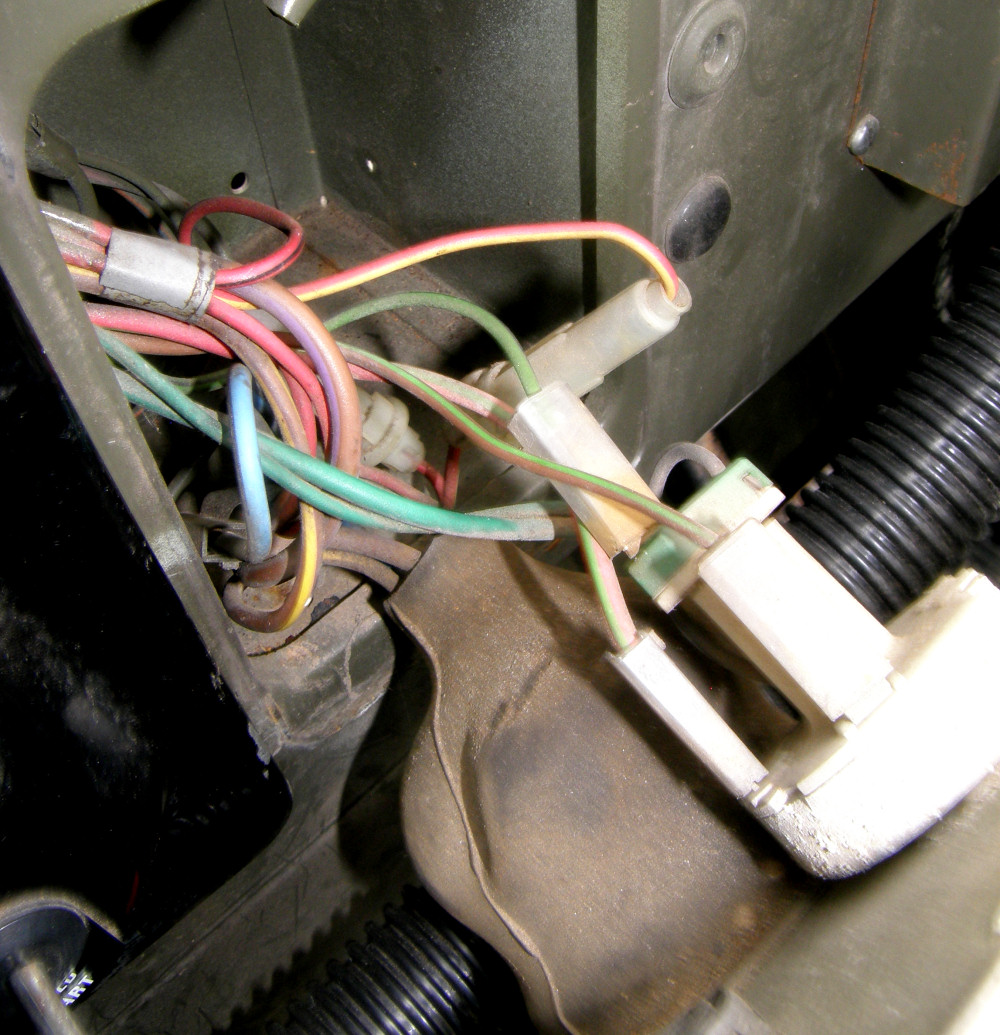

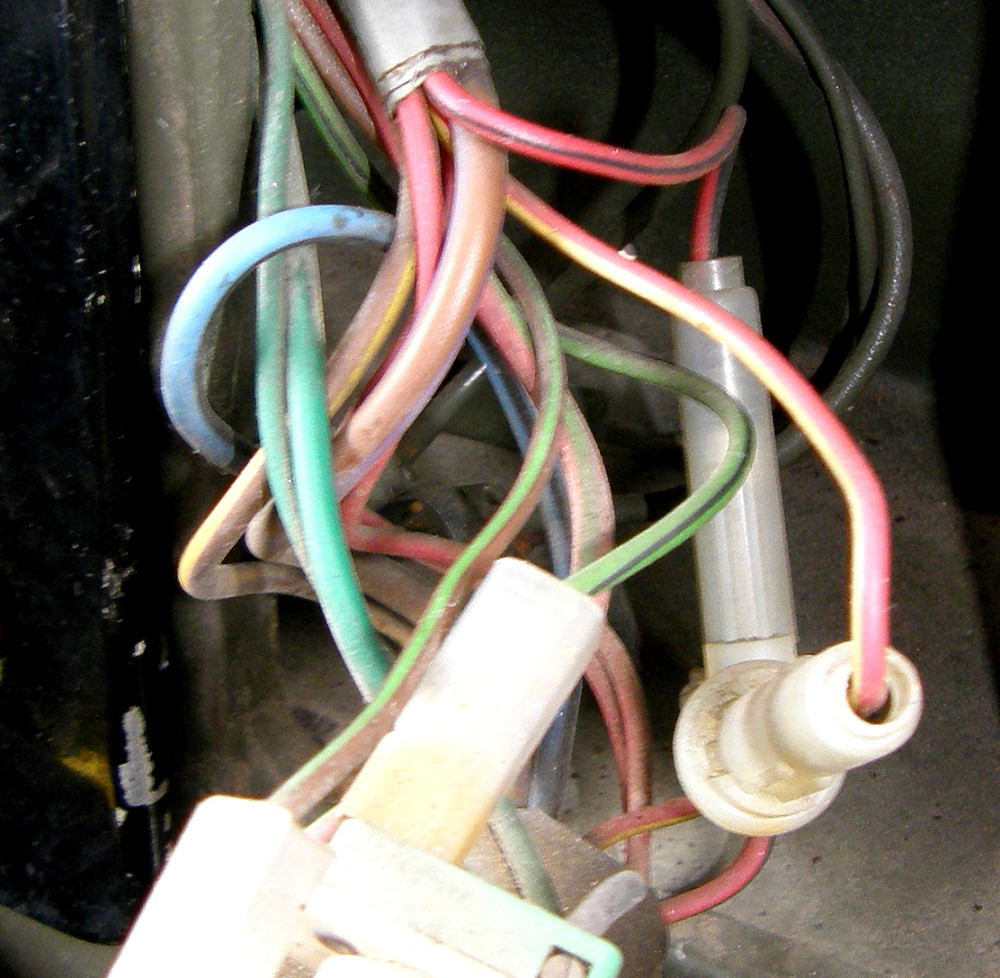

| Wiring behind
Lighting Switch |
 |
 |
 |
 |
|

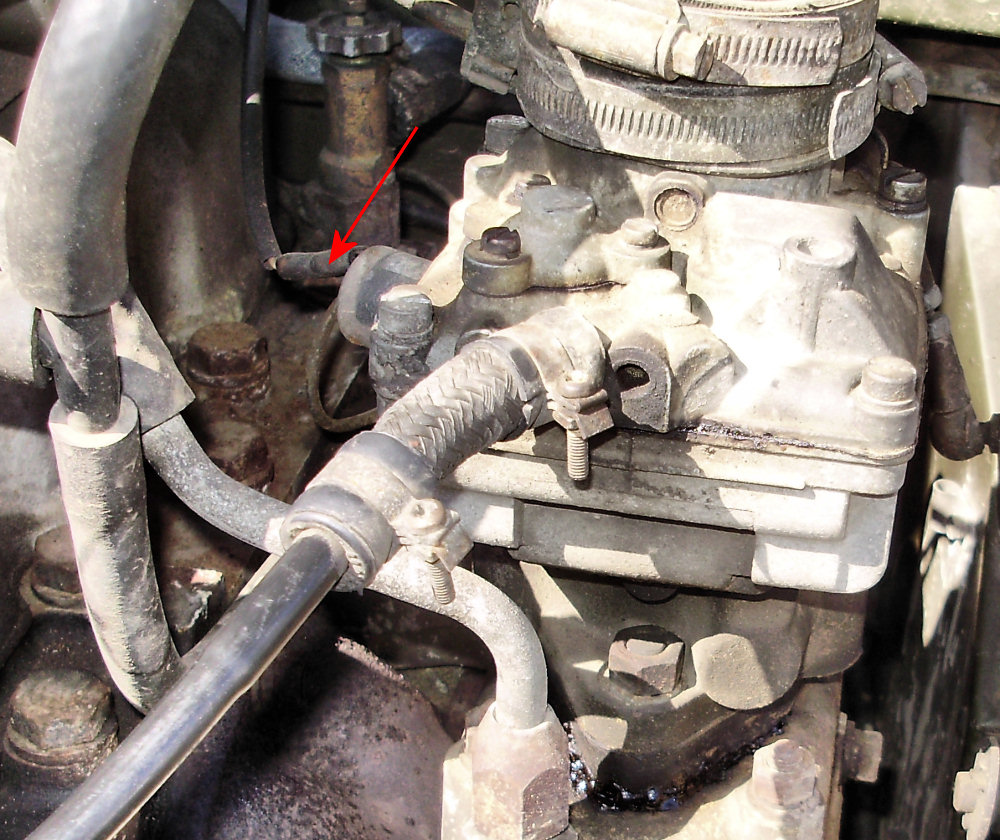

Fuel cut-off
solenoid |
|
 |
 |
 |
 |
| Service Brake Check Relay behind LH
blank panel |

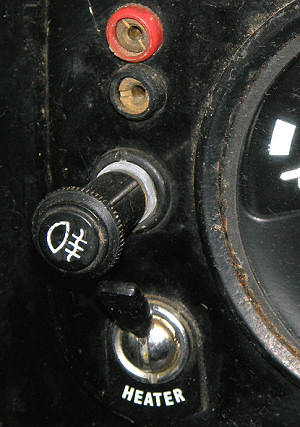

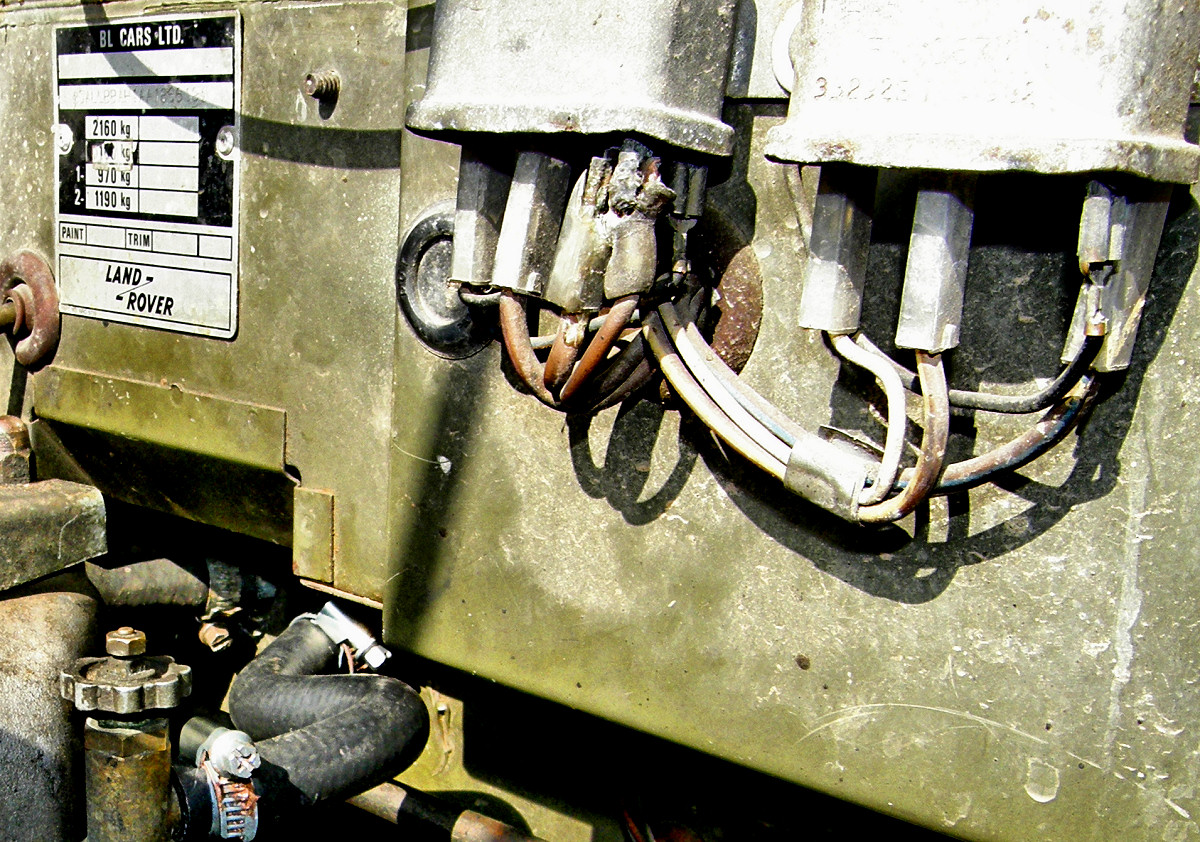

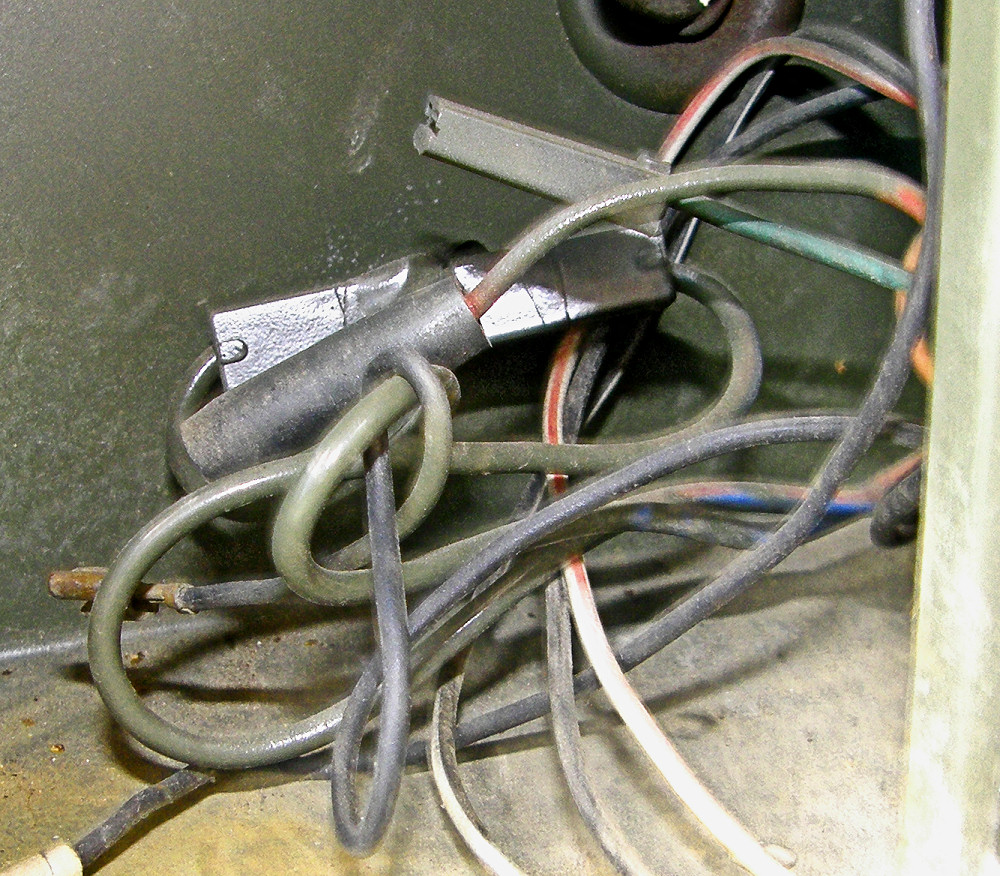

Fog Relay Wiring |
 |
 |
 |
 |

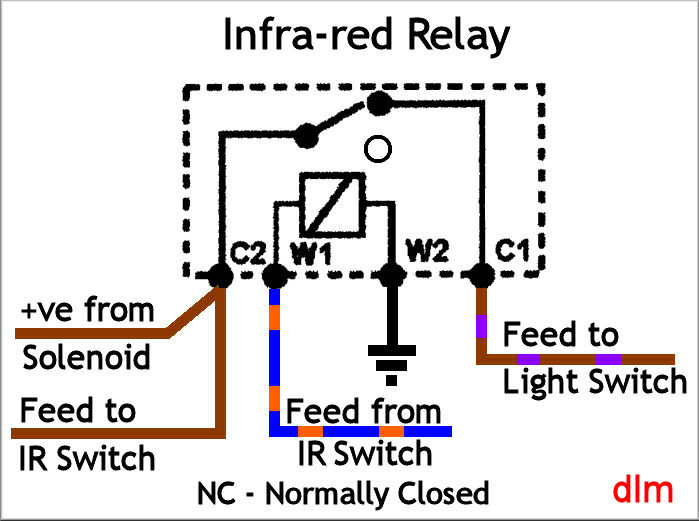

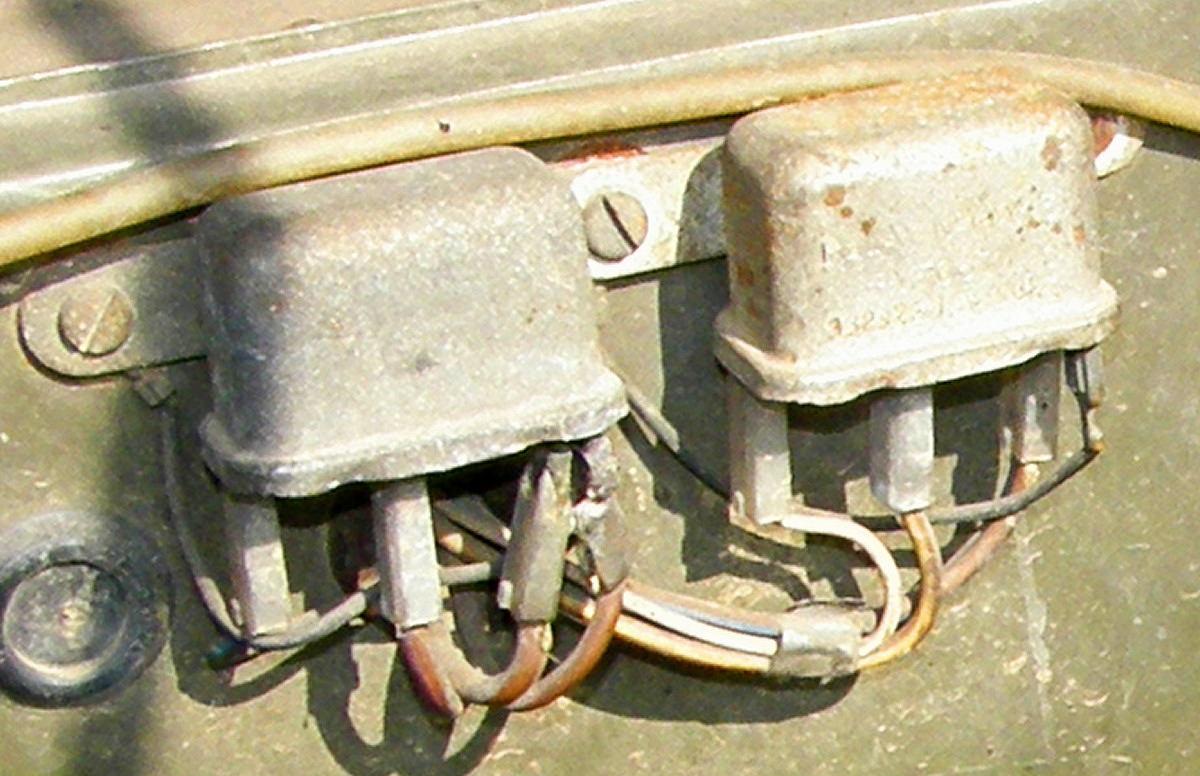

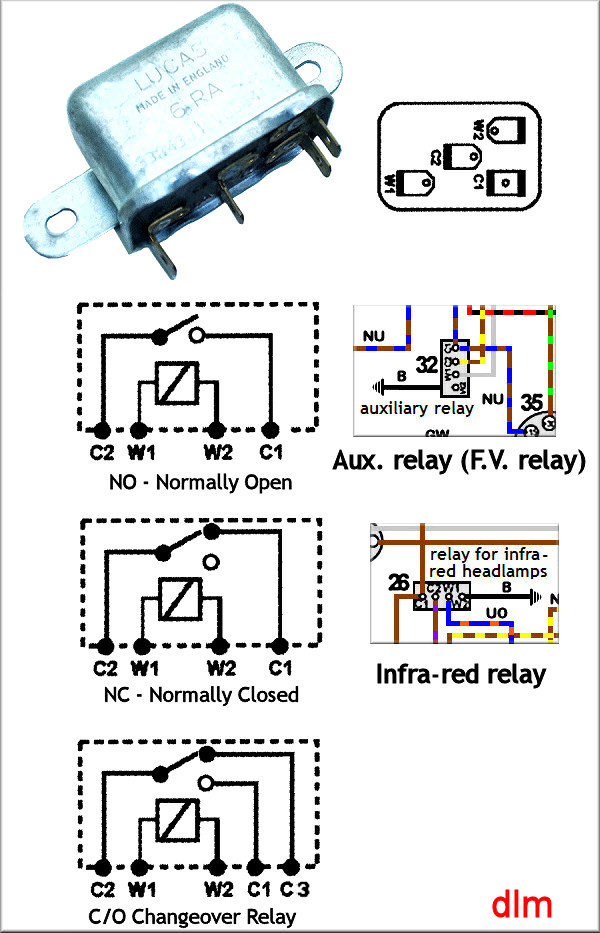

| Left is IR Relay |

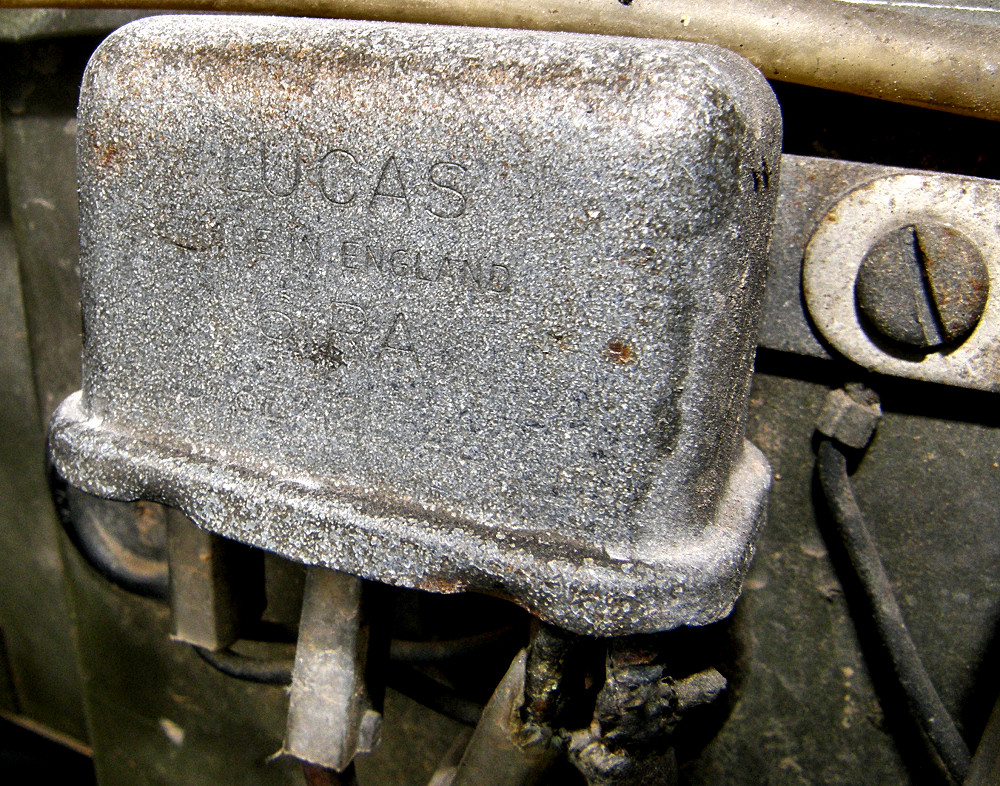

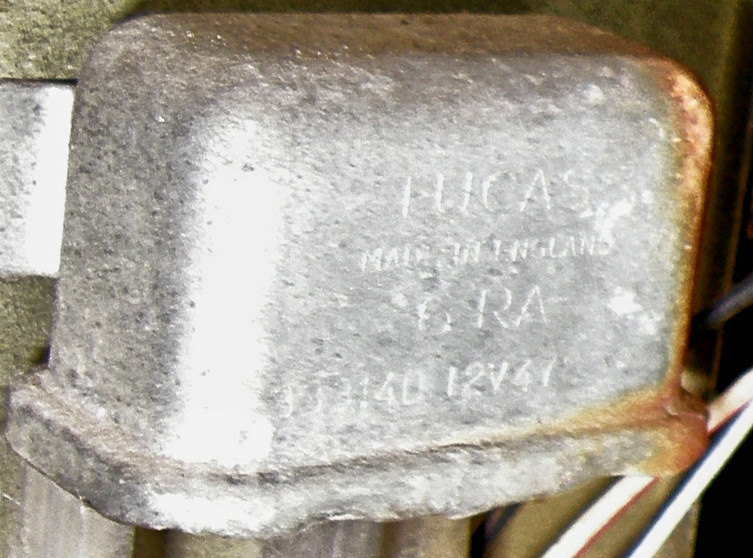

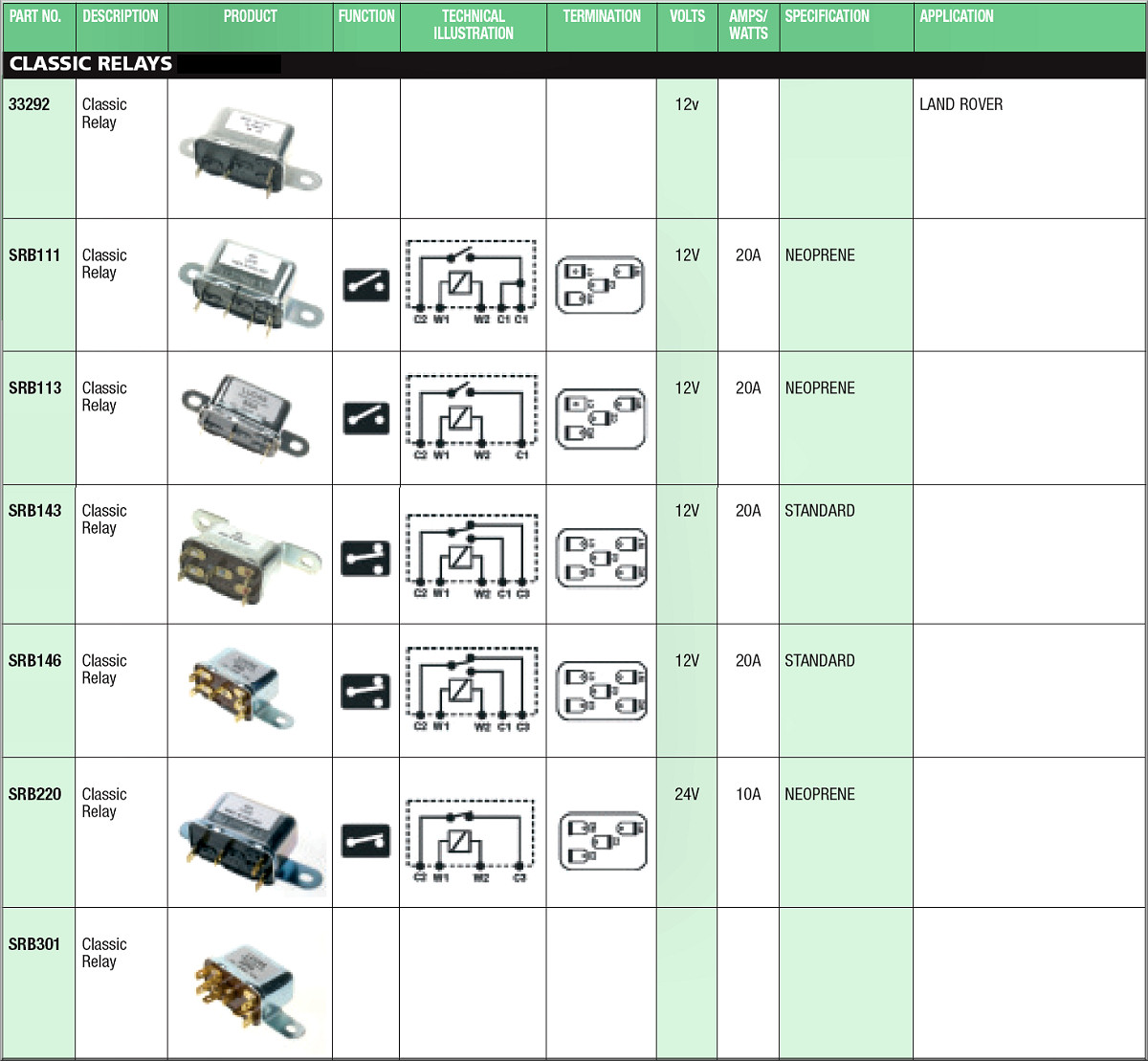

LUCAS 6RA |

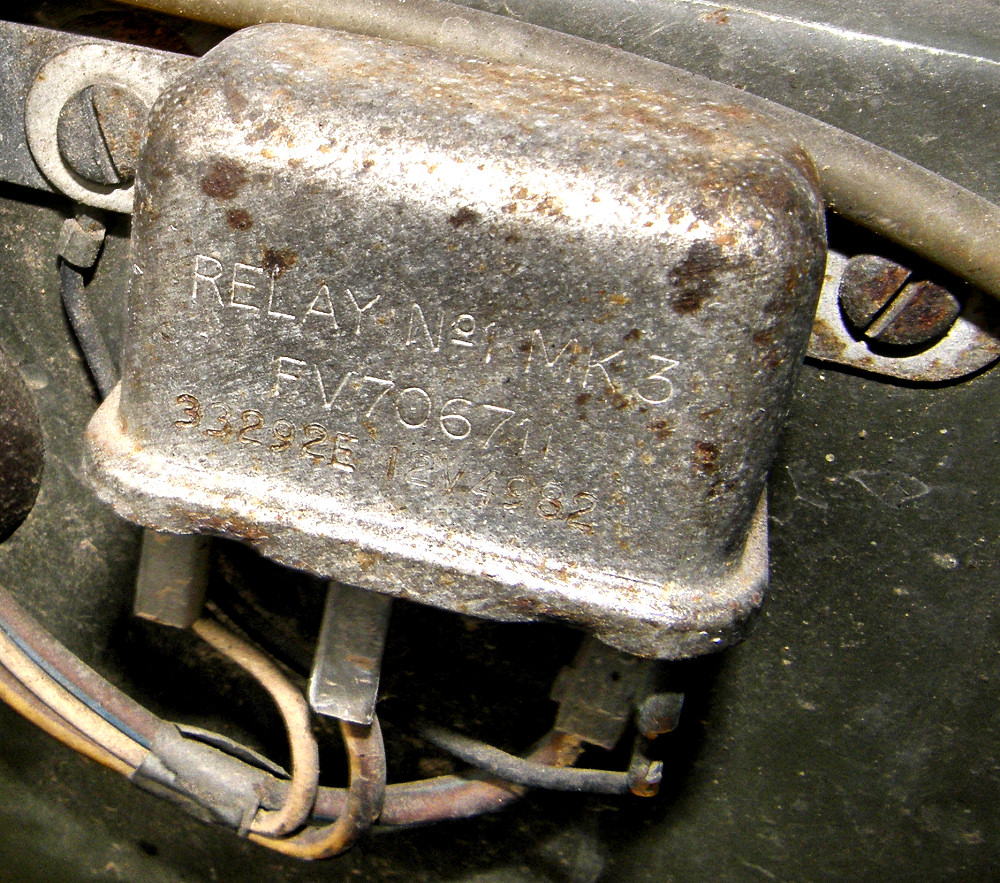

RELAY No1 MK3
FV706711 |

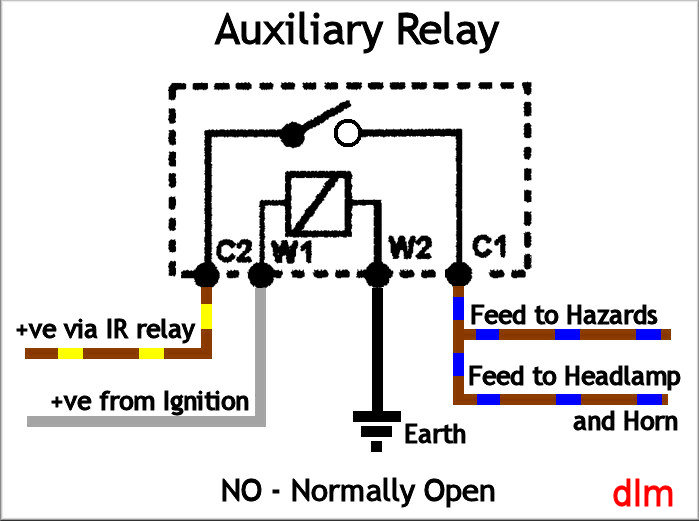

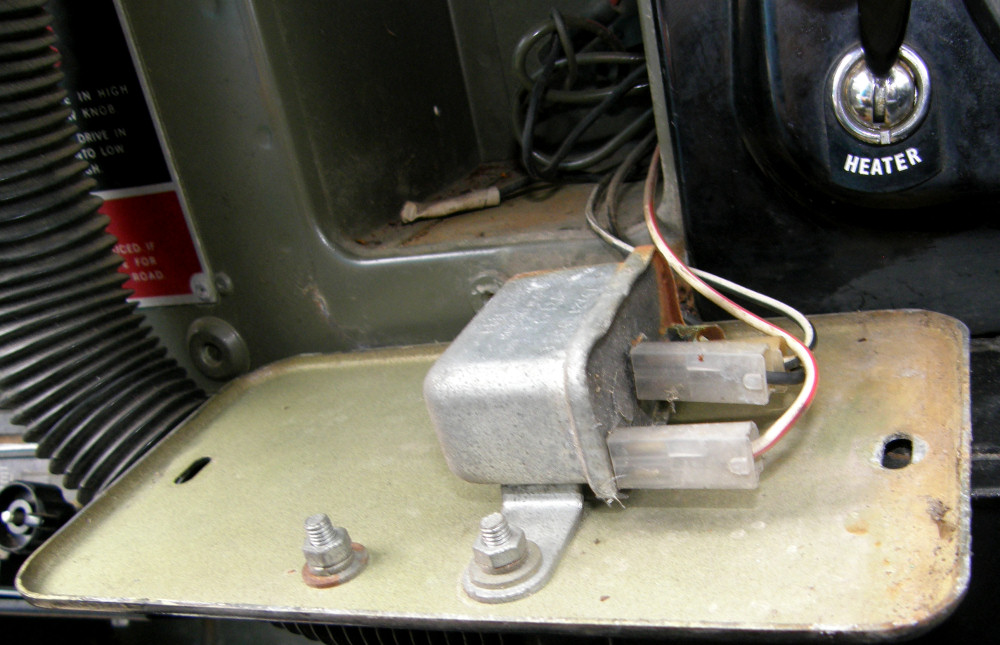

Right is Aux Relay |
 |
 |
 |
 |

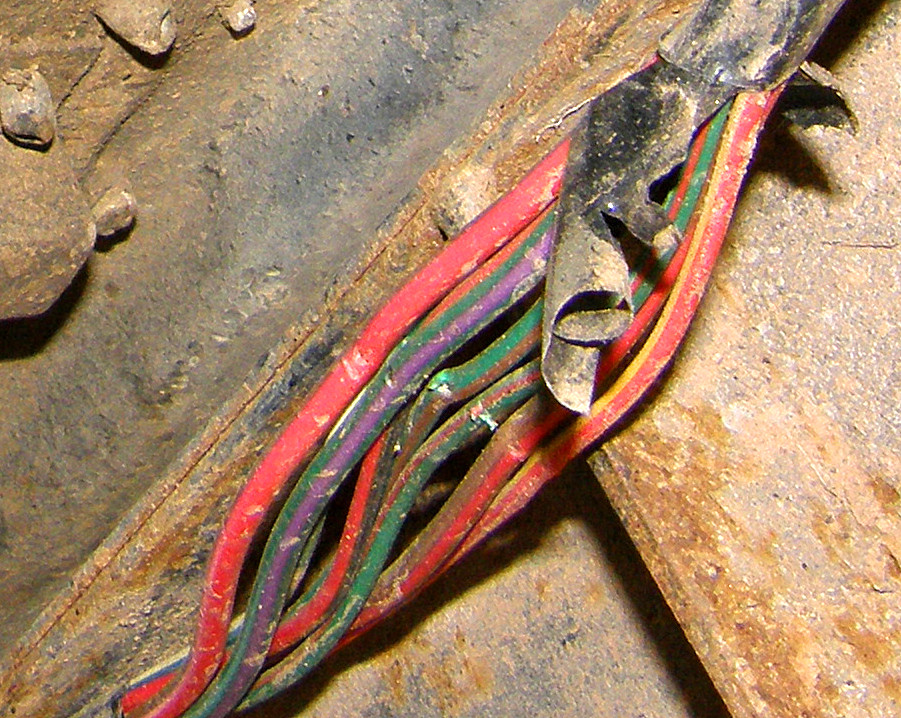

| Rear Loom |

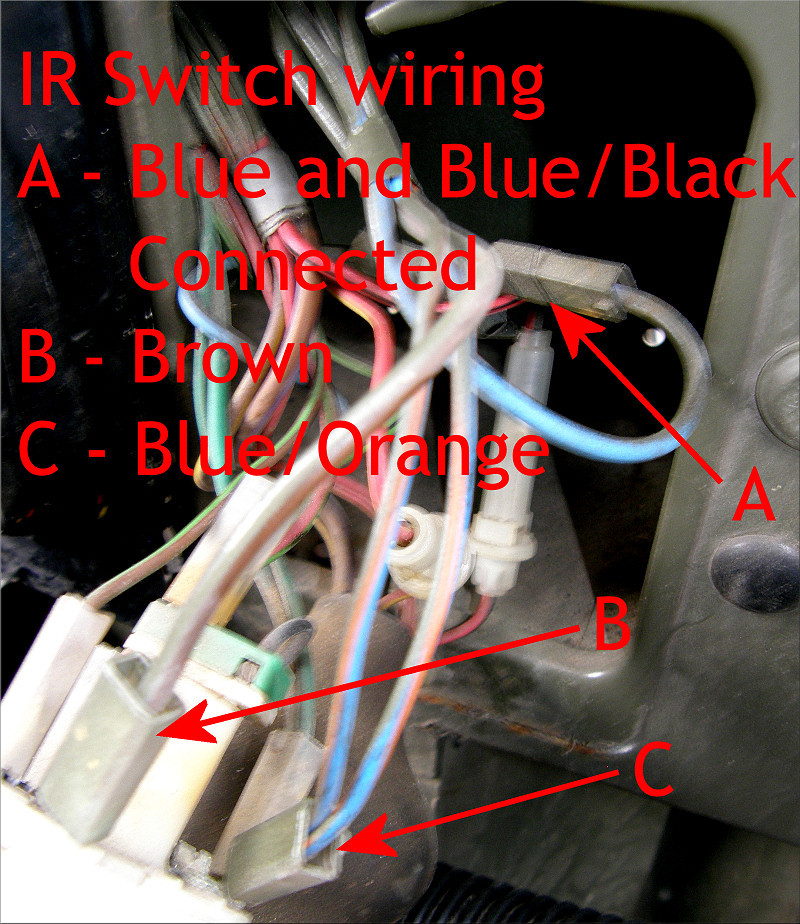

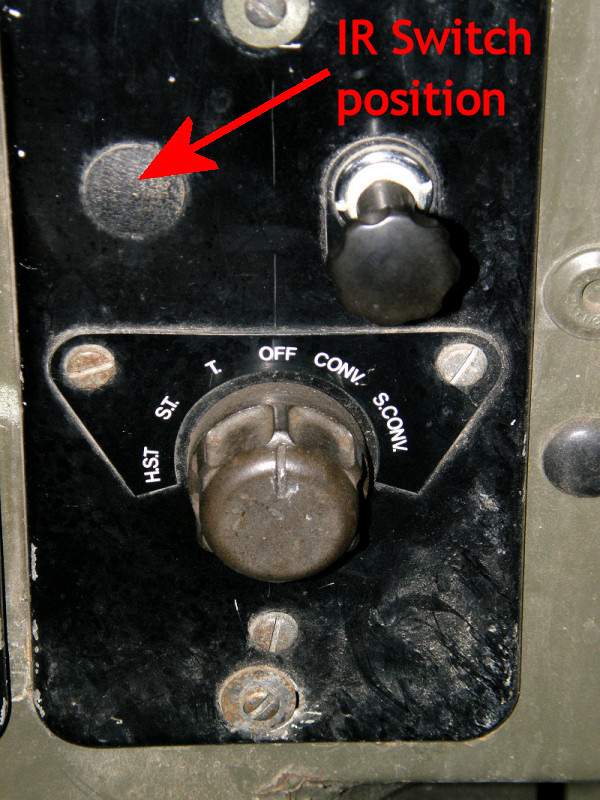

IR Switch
removed |
|

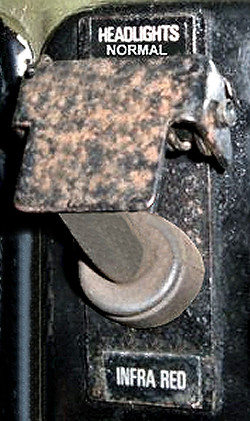

IR Switch with
guard |
 |
 |
 |
|

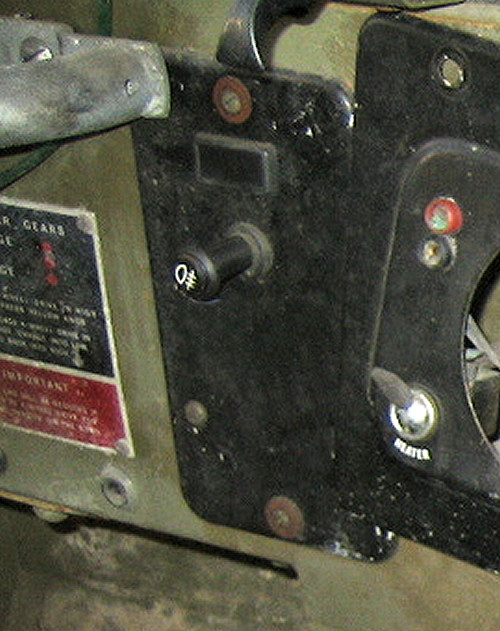

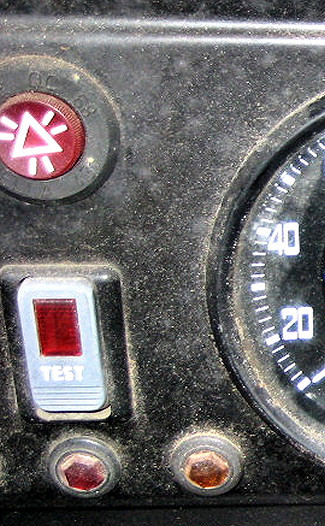

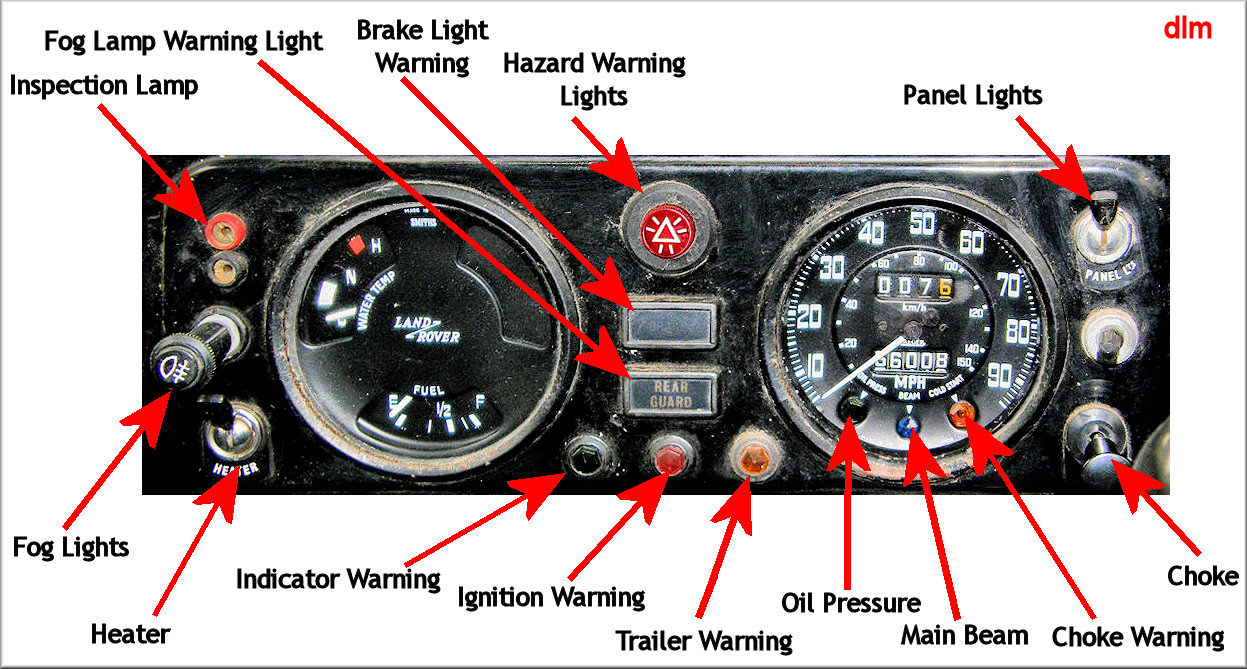

| Early Brake Test and Fog Light switches
and indicators. Test button just checks the bulb is working! |
 |
 |
|
 |

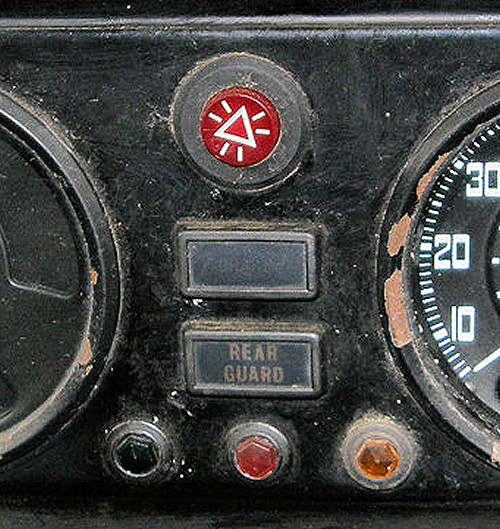

| Later, circa 1983,
set up. Lower indicator has the legend 'REAR GUARD', upper indicator
'BRAKE' |

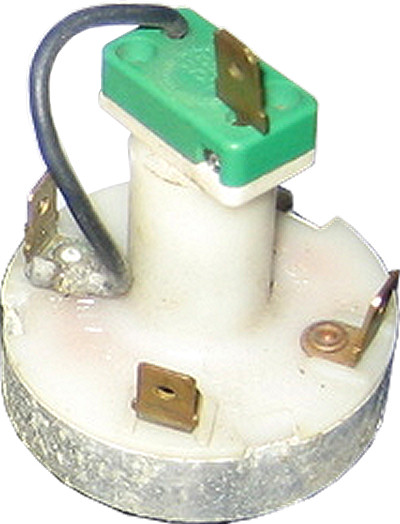

Wash/Wipe Switch |
 |
 |
 |
 |
| Wiper wiring and
self parking |

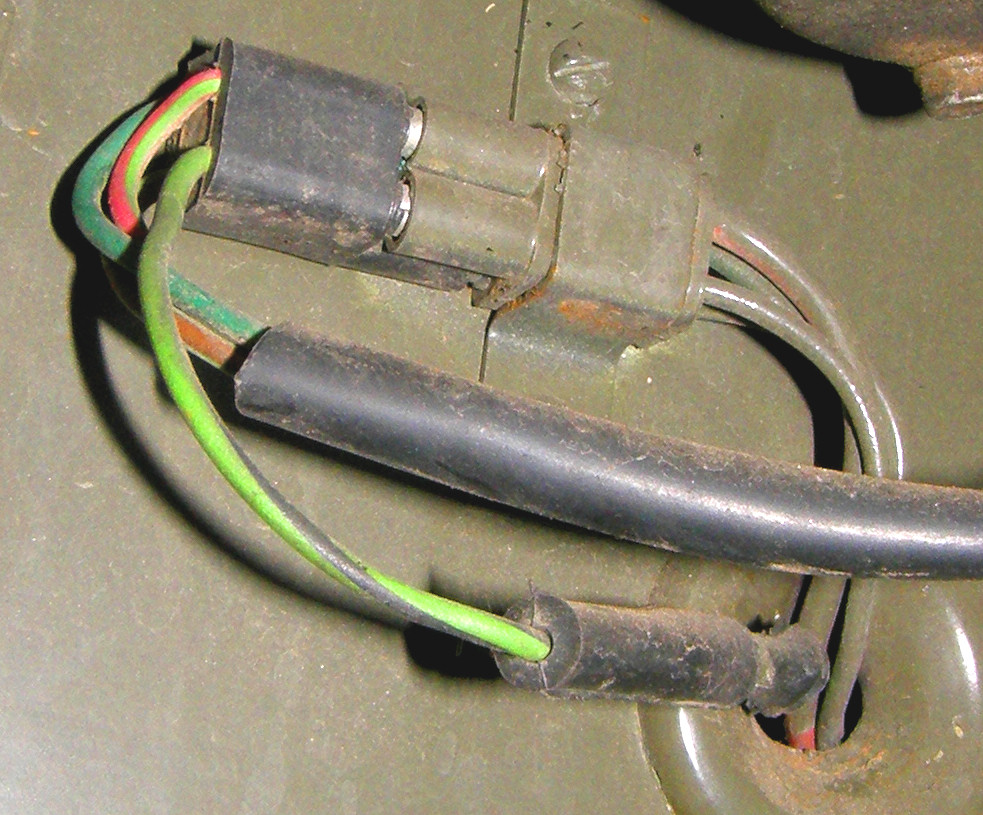

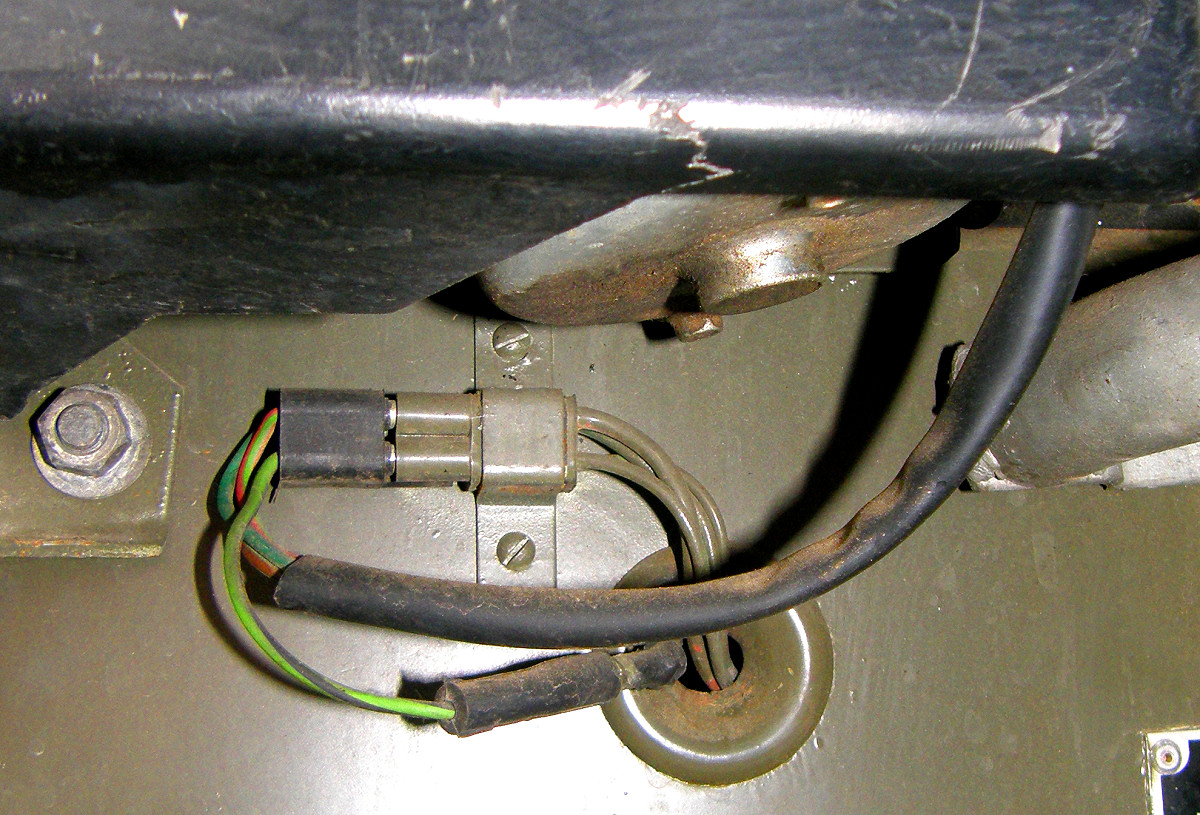

Wiper Motor
connector block |
 |
 |
| Series 2A, Rover 1,
12v Circuit Diagram |
Series 2A, Rover 1,
24v Circuit Diagram |
