Land Rover Lightweight

23-KB-26
Circuit Diagrams
Click on image for full size Photo

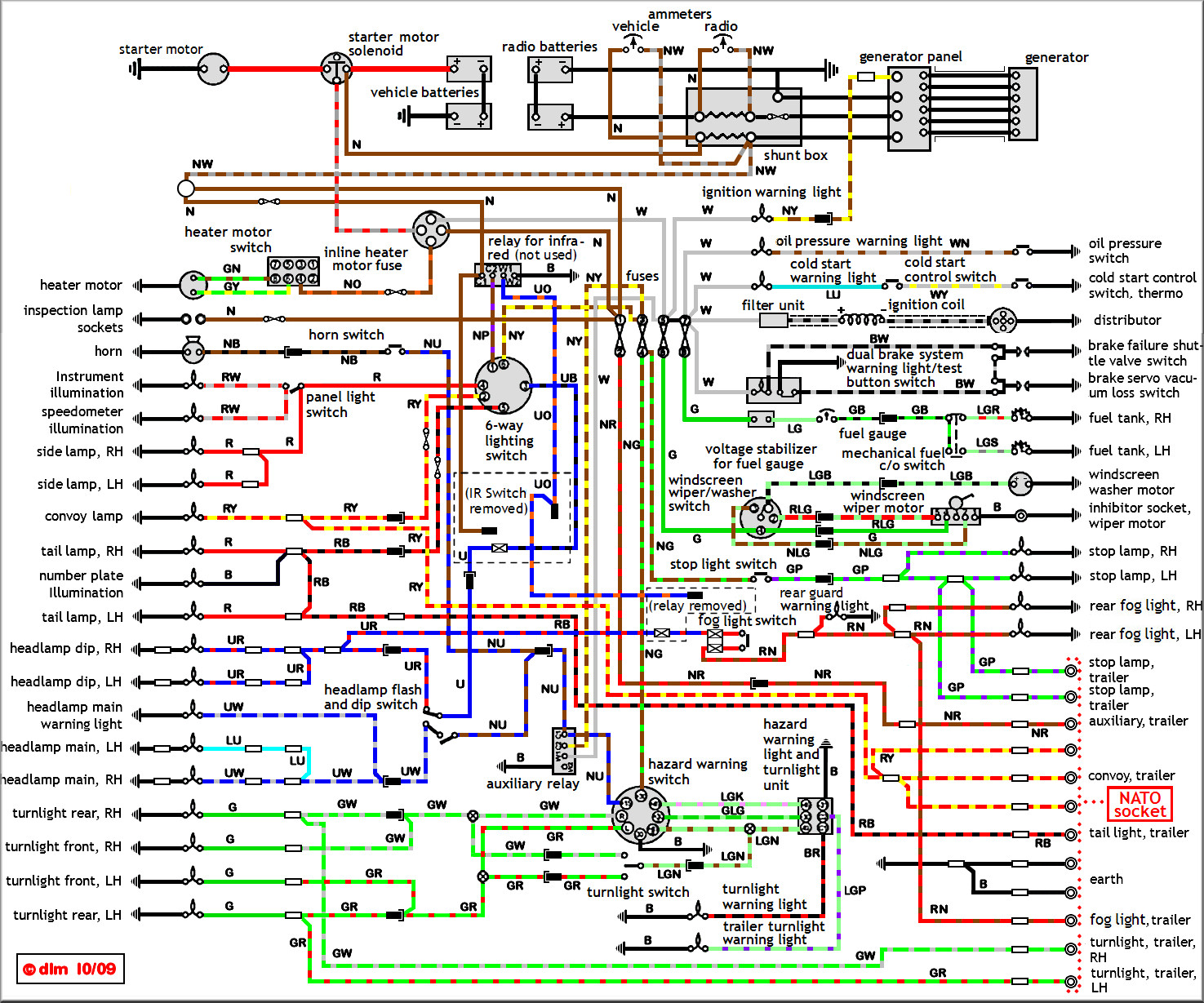

Late Series 3, 12v, Registration KA onwards 1982(approx)
IR Switch removed (see below) but wiring and IR Relay left in-situ. Rear Guard (Fog) Lights included, but no Rear Guard Relay due to the fact that IR had been disabled. This is correct for my 1983 vehicle.
1982(approx) 24v version

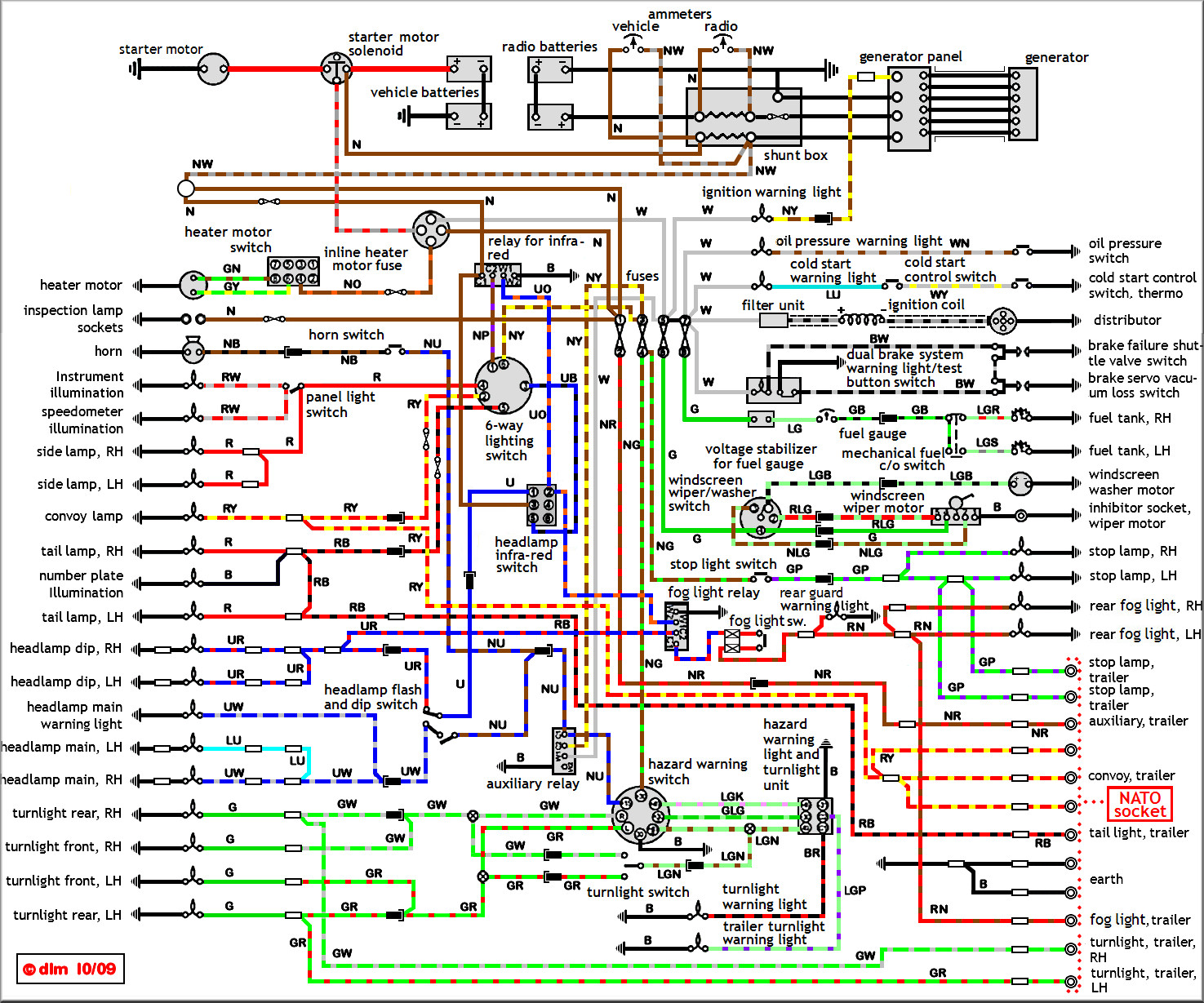

1980 (approx) 12v with IR and Fog Relay 1980 (approx) 24v with IR and Fog Relay
Series 3, 12v Circuit Diagram Series 3, 24v Circuit Diagram
Series 2A, Rover 1, 12v Circuit Diagram Series 2A, Rover 1, 24v Circuit Diagram
Windscreen Wiper NATO Socket

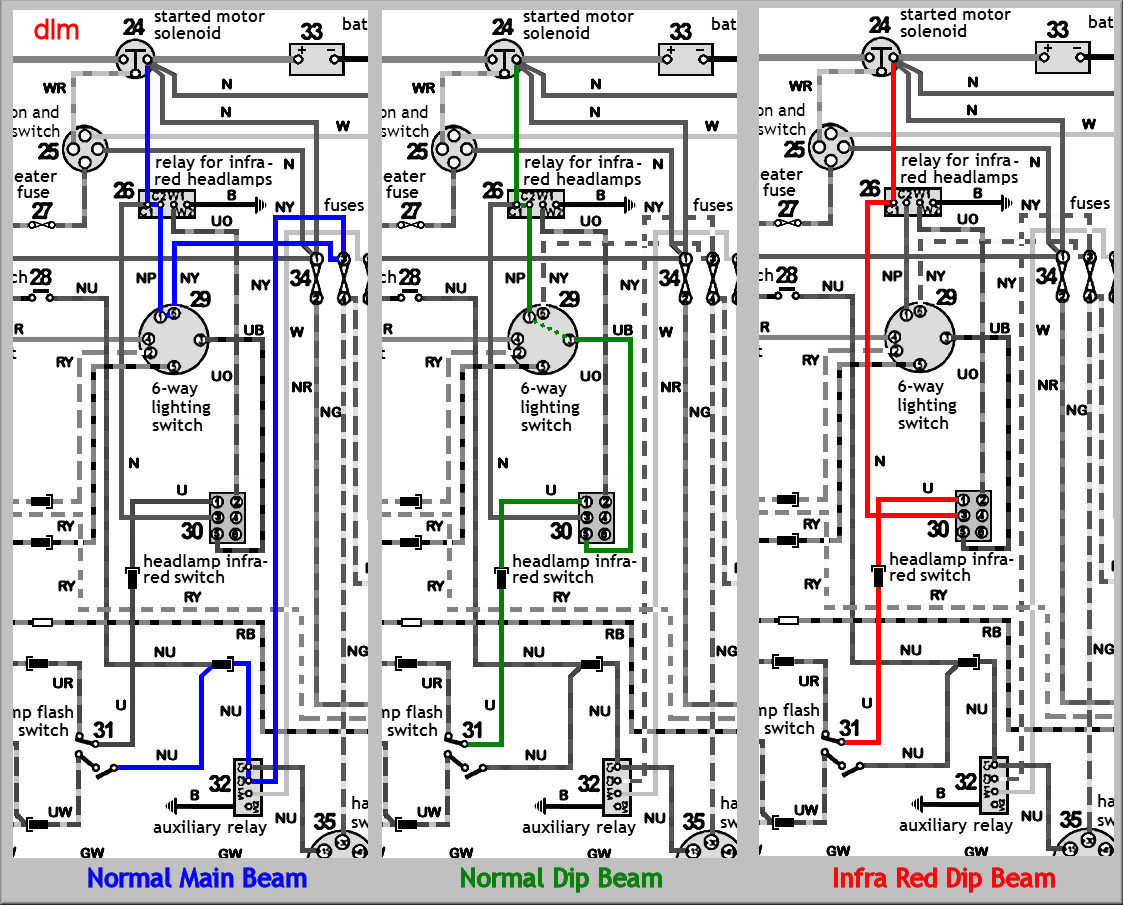

Headlamp Wiring IR Wiring

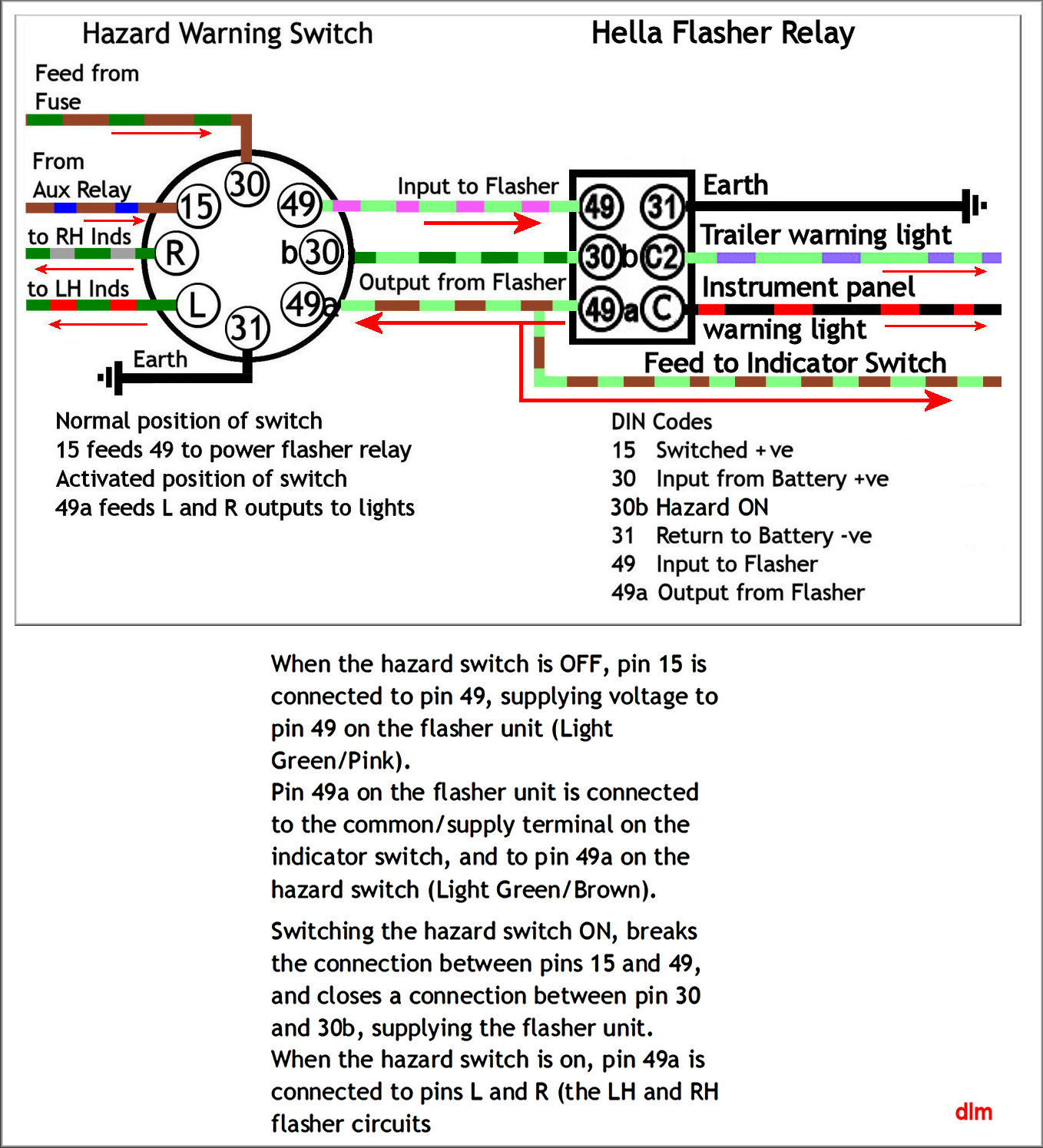

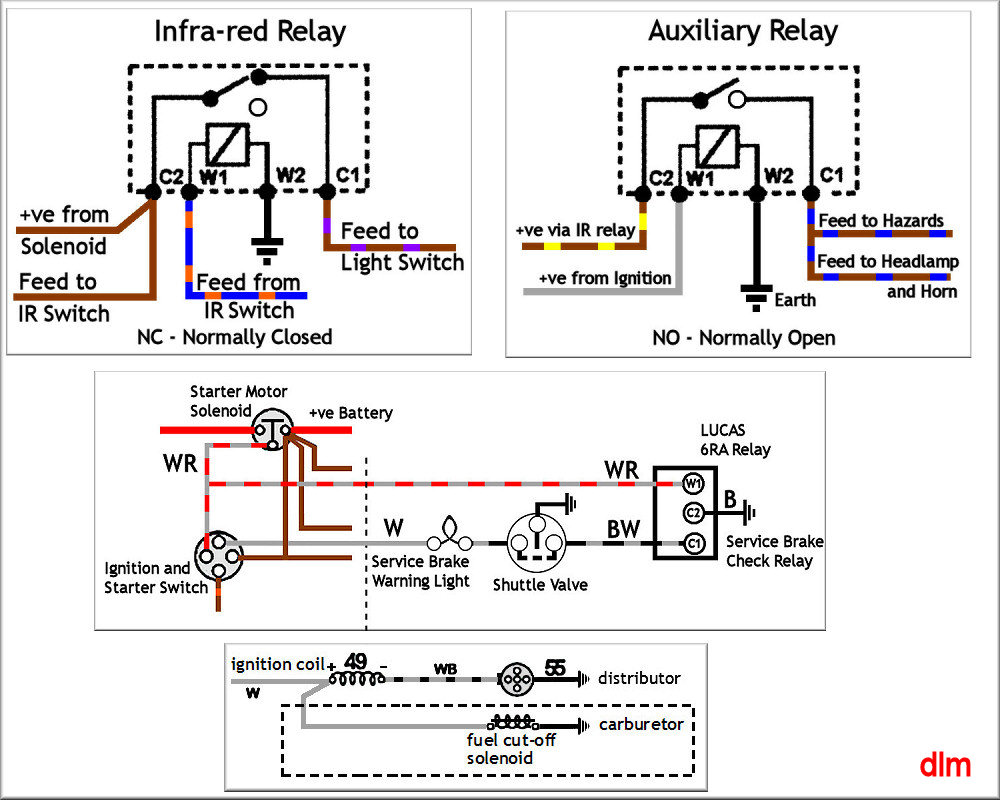

Flasher and Hazard Warning lights Relays Etc.

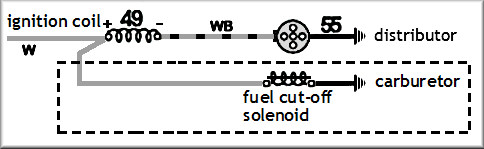

Brake Check Relay Carburettor Solenoid

Electrical pictures etc.
