Rims

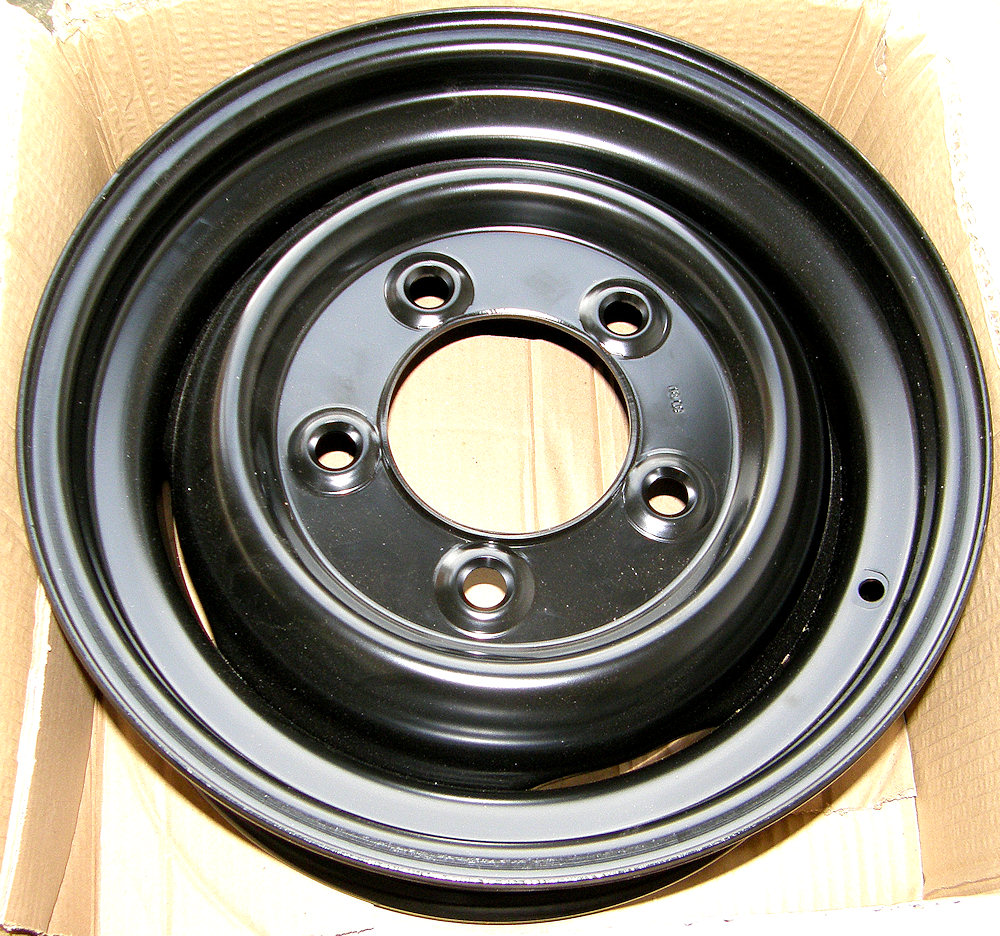

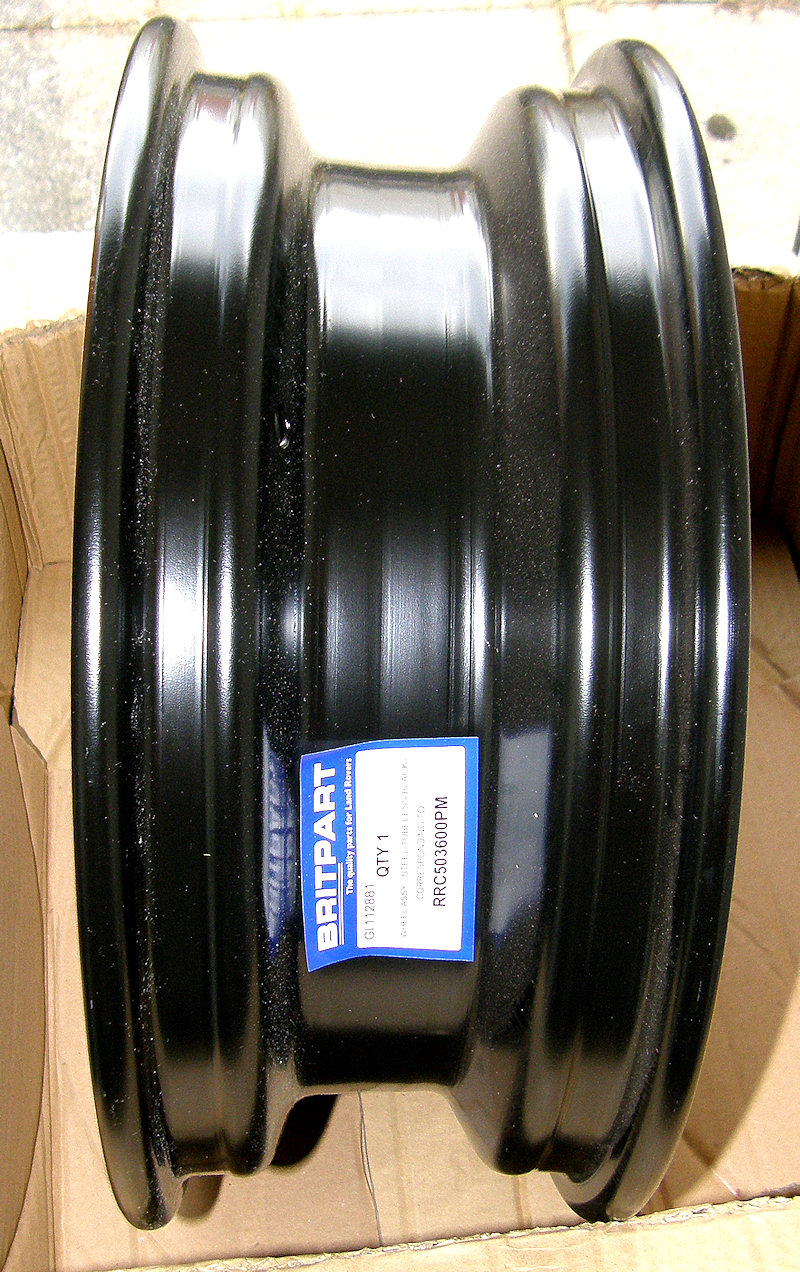

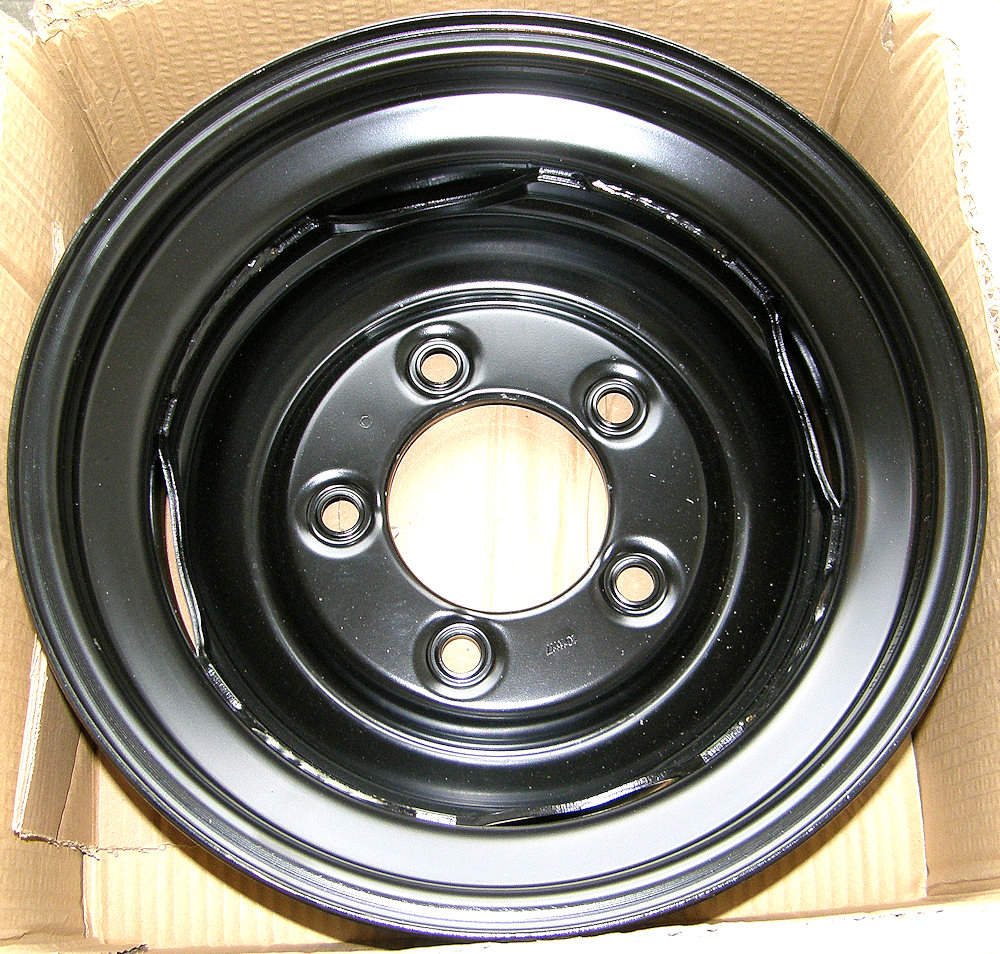

The latest rim that has been fitted to the Defender 2005 on, is the RRC503600PM a  5.1/2" J x 16 it looks very similar to the conventional well base but has the bead hump (safety bead) and is marked on the periphery "TUBELESS".
It is a modern rim that you would have to take a close look at to see the bead edge with a tyre fitted.  It maintains the Series looks but uses the best modern rim section for a tubeless tyre

Click on images below for full size Photo

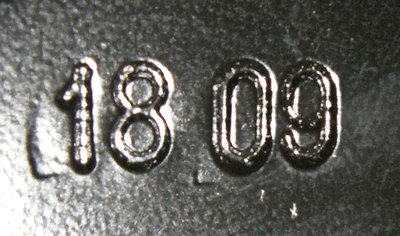

Stamped on the rim

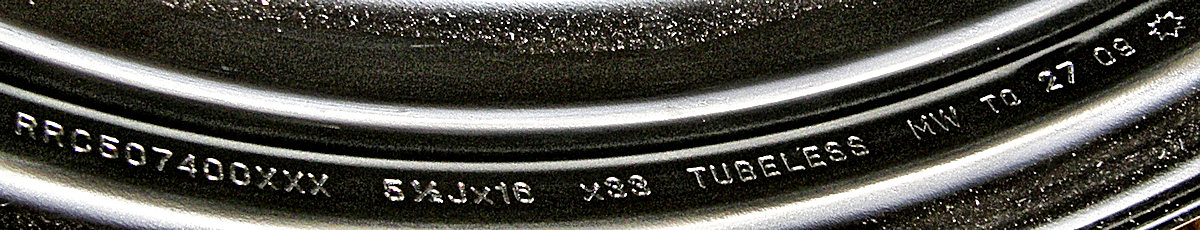

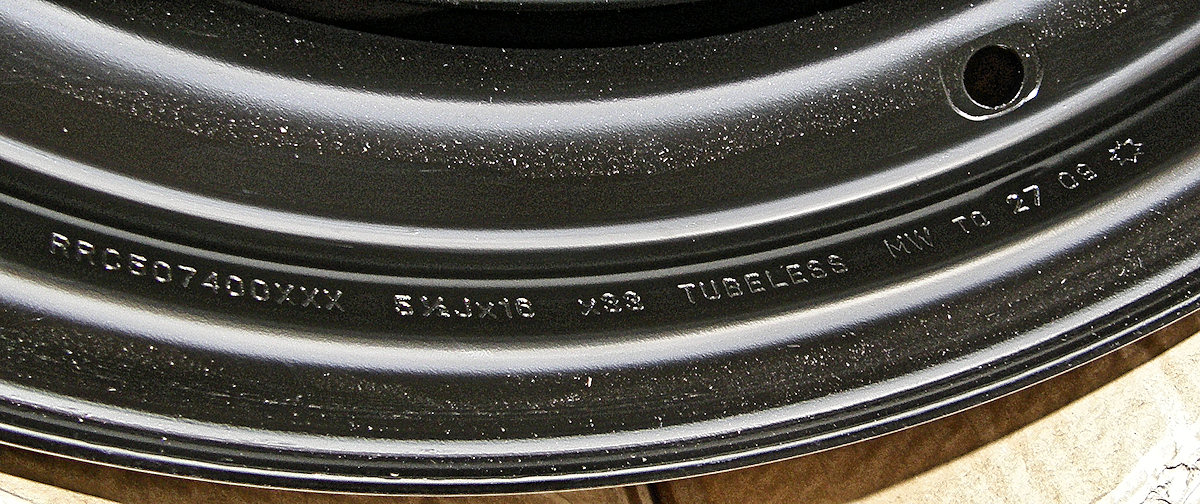

'RRC507400XXX  51/2J X16 X33 TUBELESS  MW TO 27 08 R'

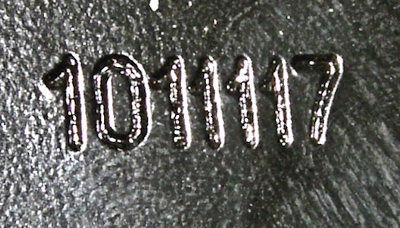

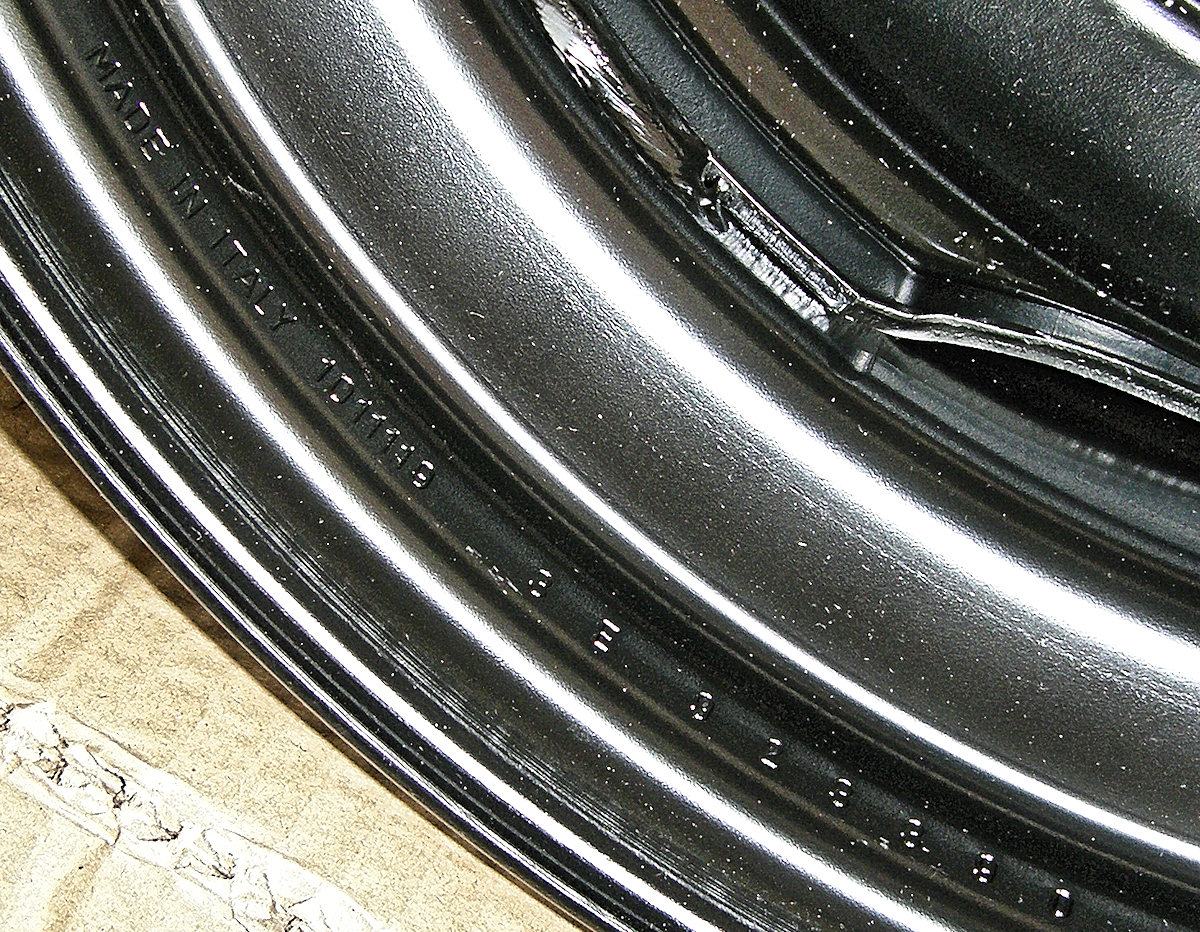

'MADE IN ITALY 1011119  3 E 9 2 3 3 9 0
'

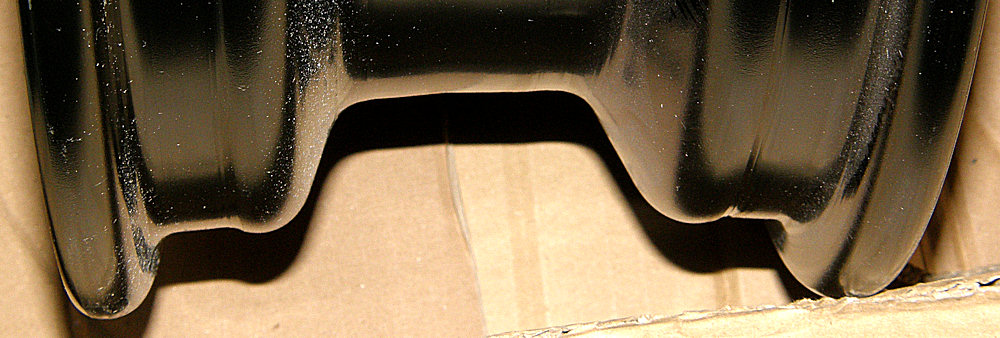

 2 X bead humps (safety beads)

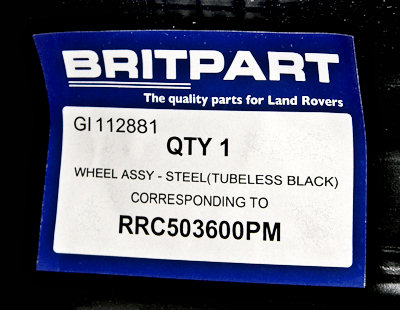

RRC507400XXX and RRC503600PM seem to be the same!
